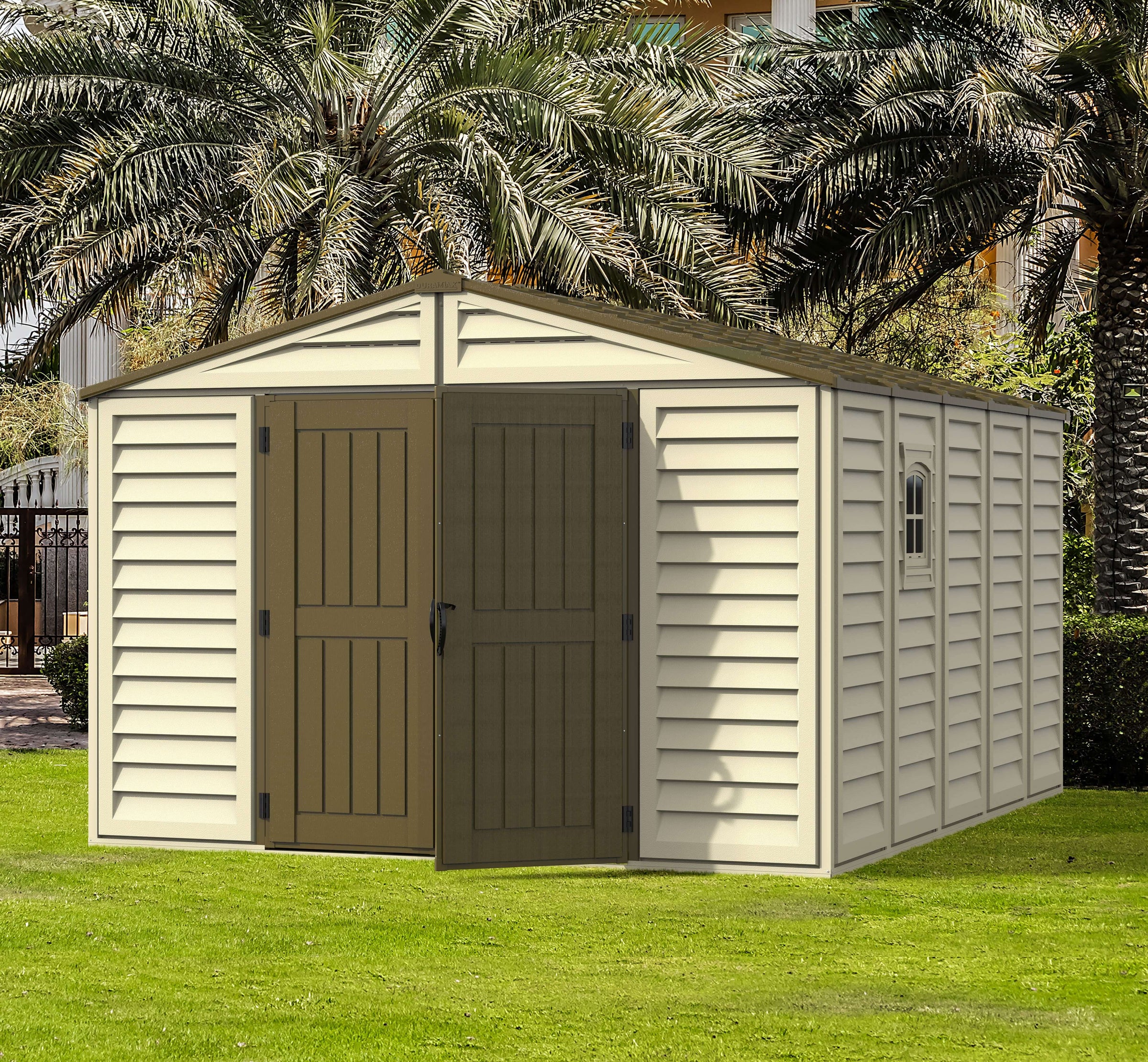

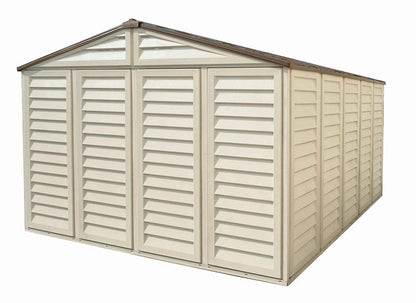

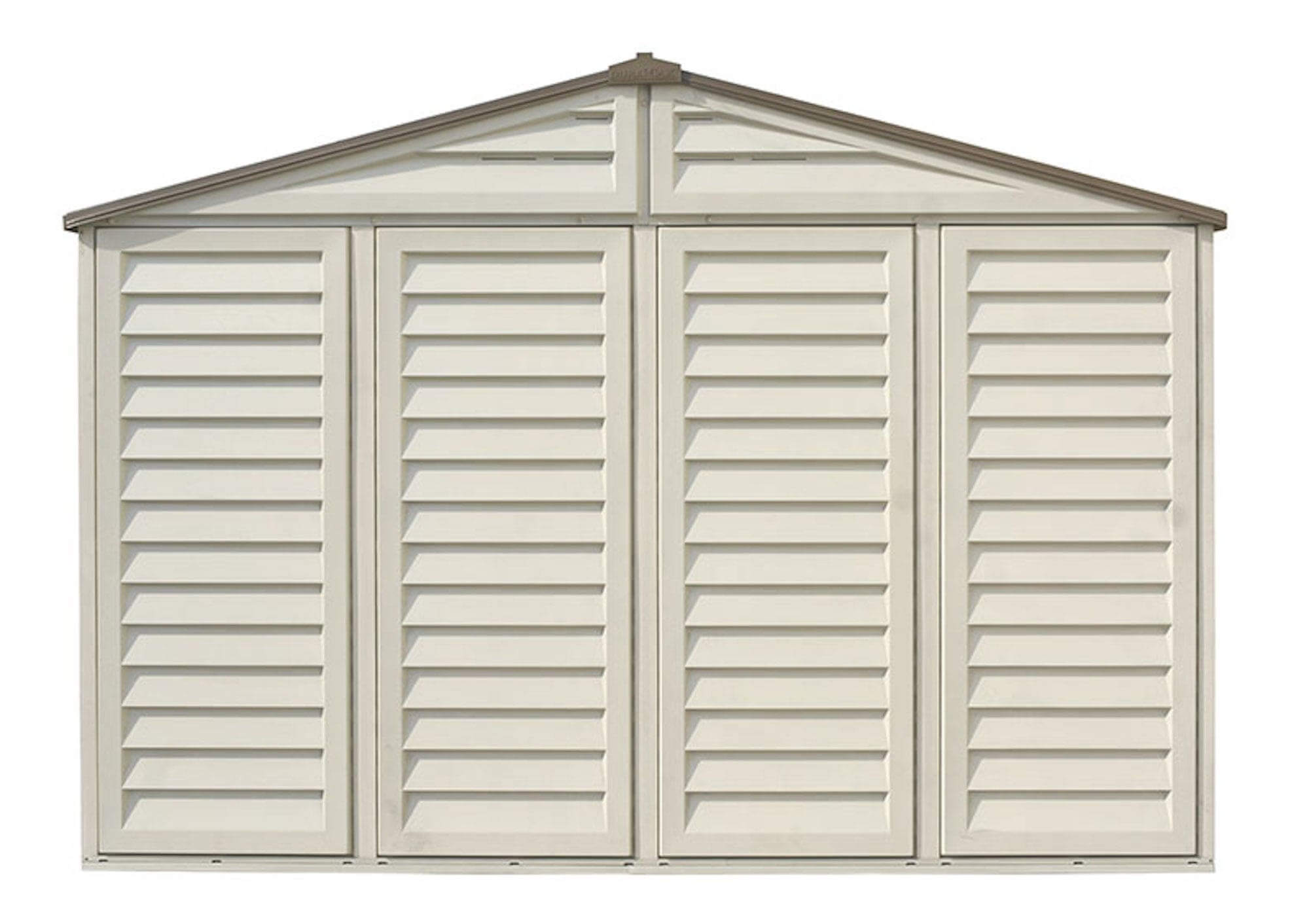

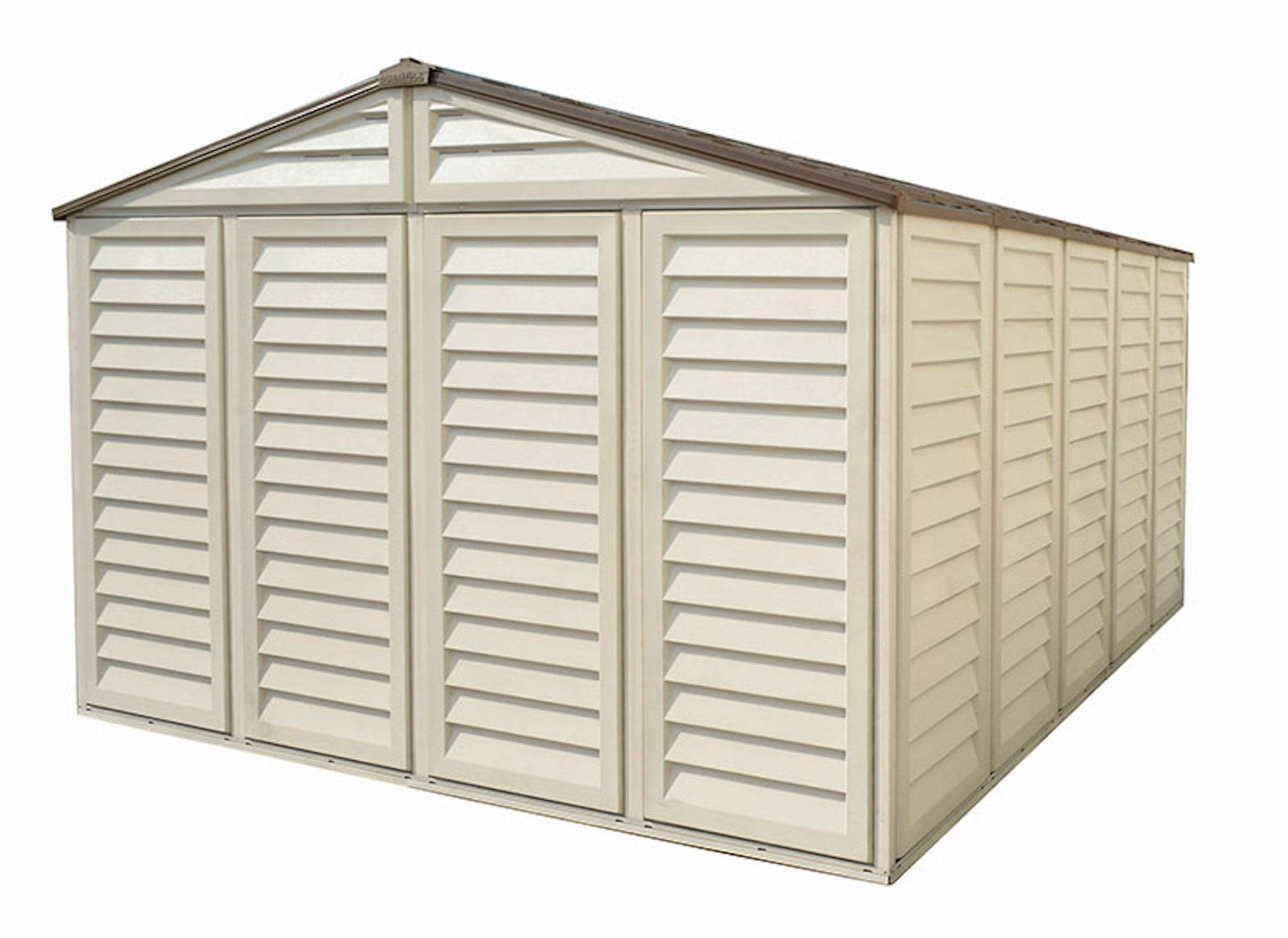

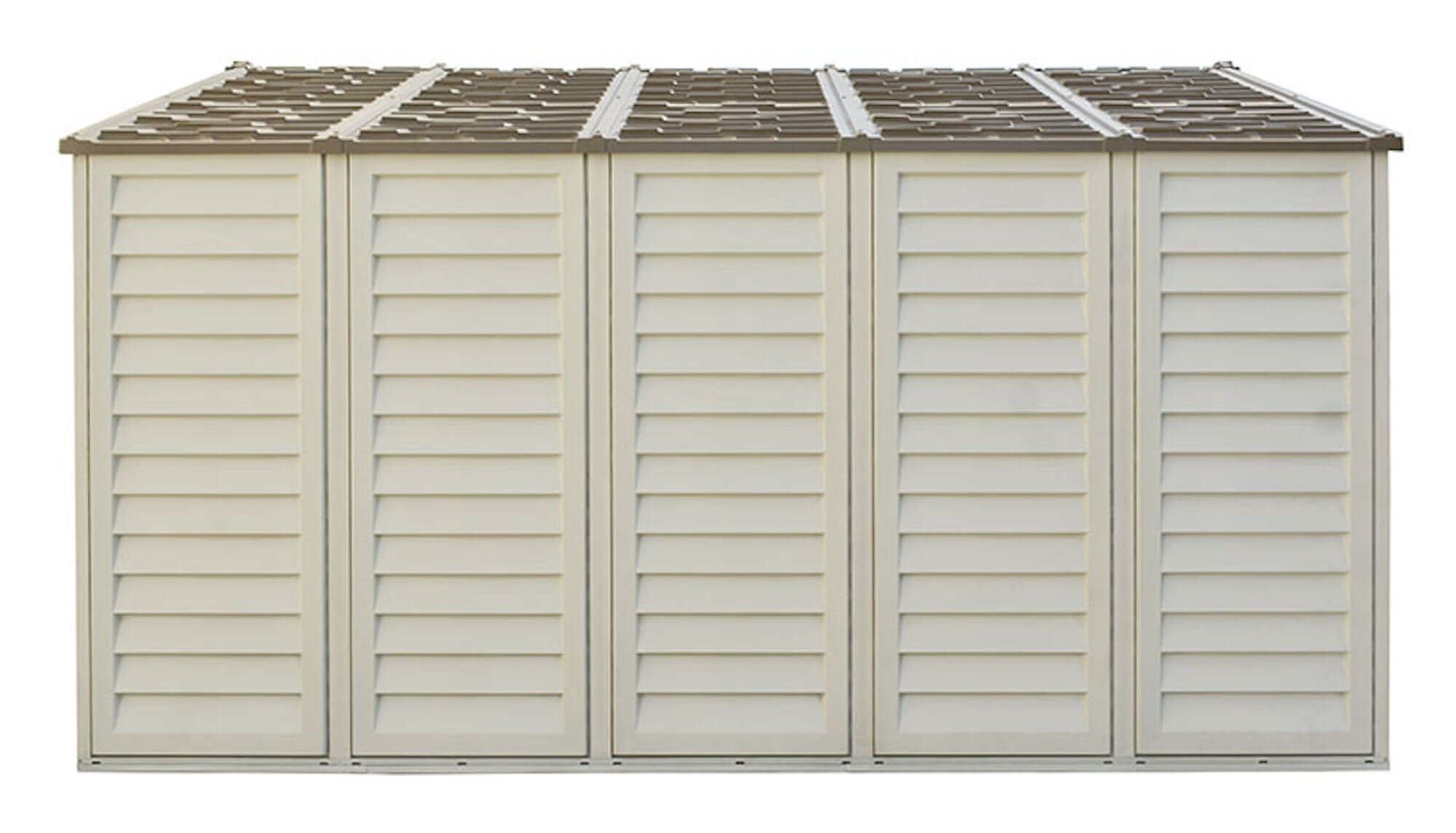

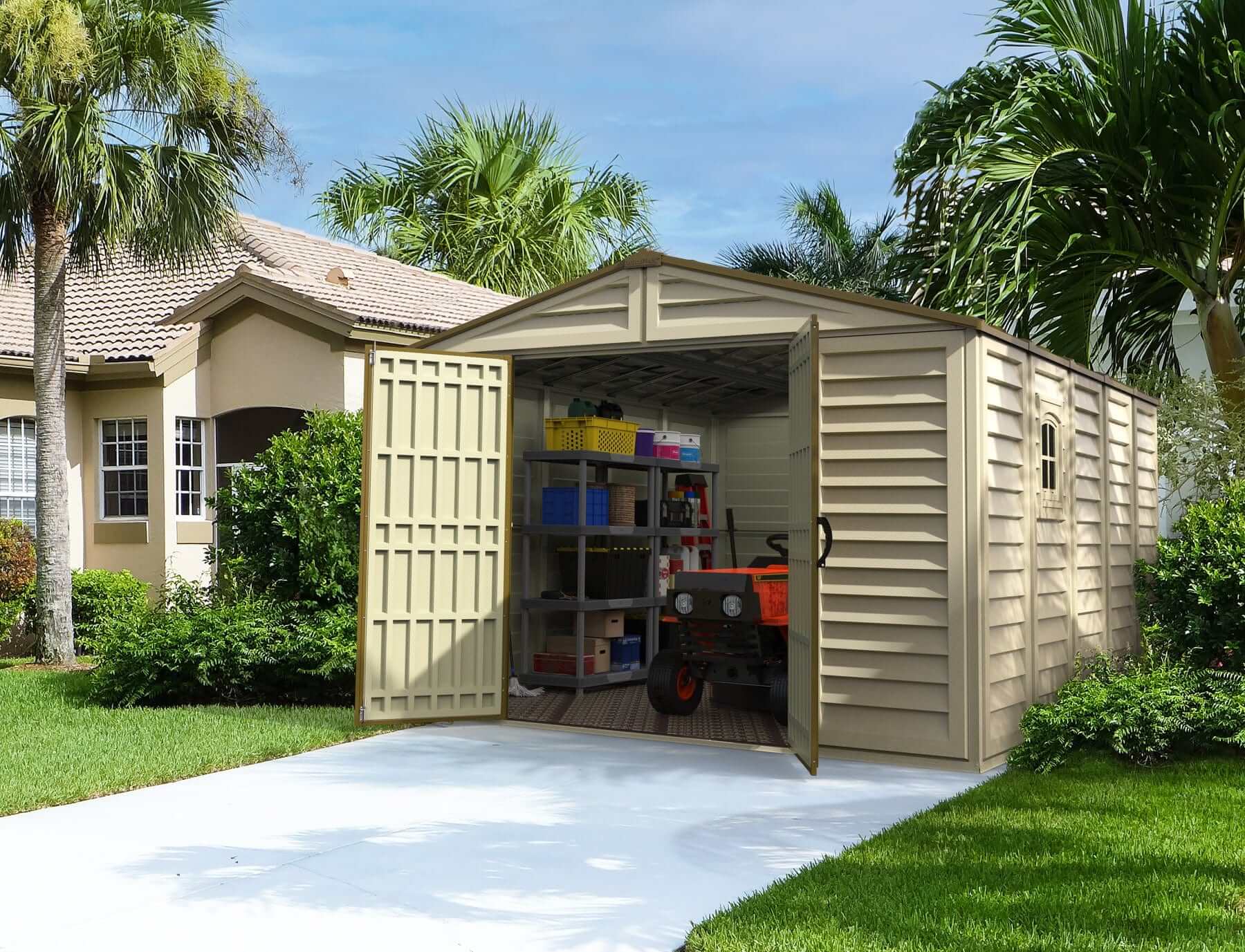

Duramax 10.5x13 Woodbridge PLUS Vinyl Shed w/ Foundation 40234

Features:

• Customize the foundation by finishing it with plywood or concrete (materials not included).
• Made from tough, all-weather vinyl that requires no painting or treatment over time.
• Unlike plastic sheds, the vinyl material is fire-resistant for added safety.
• This shed won’t rust, rot, mildew, or fade, providing long-term durability.

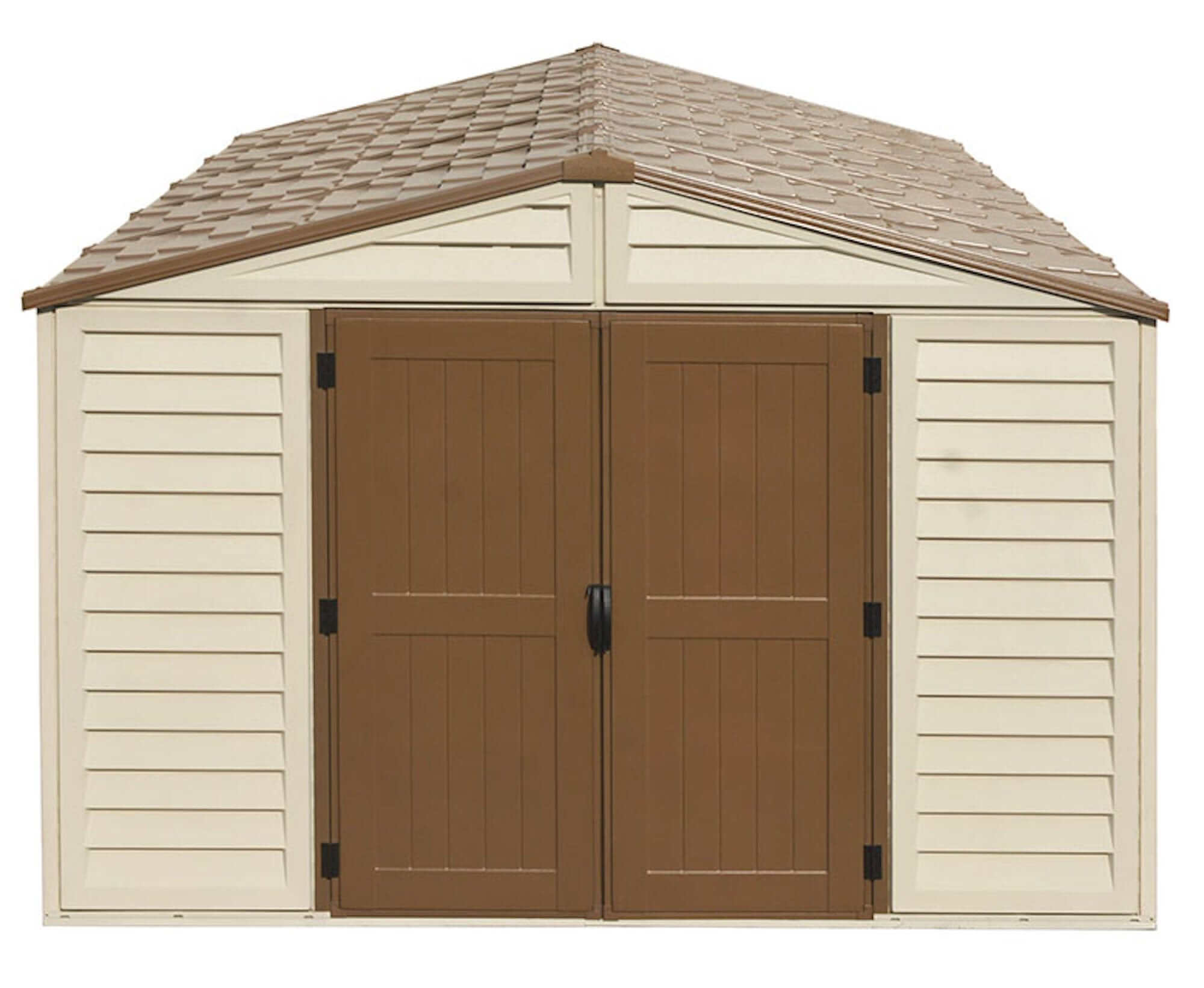

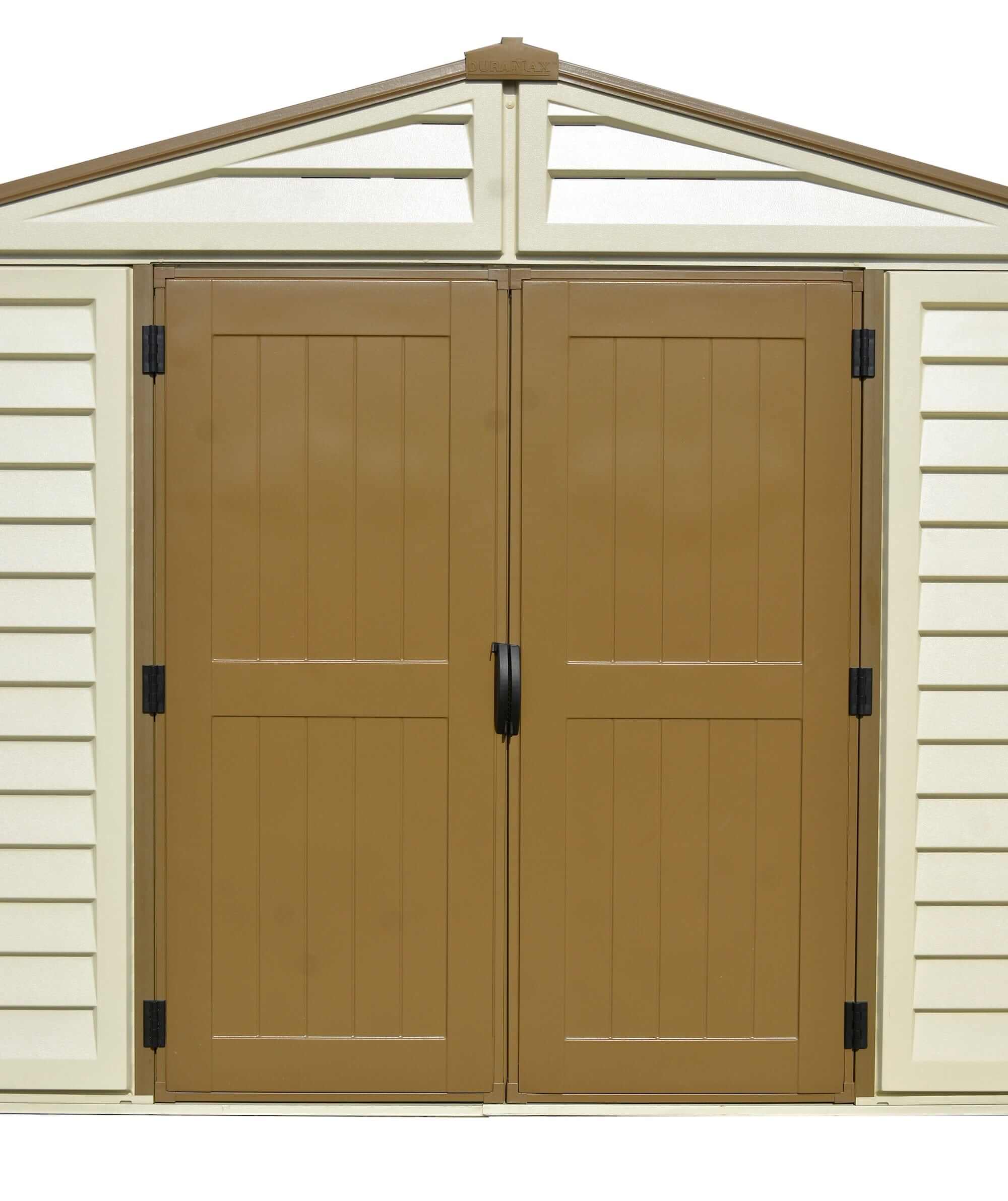

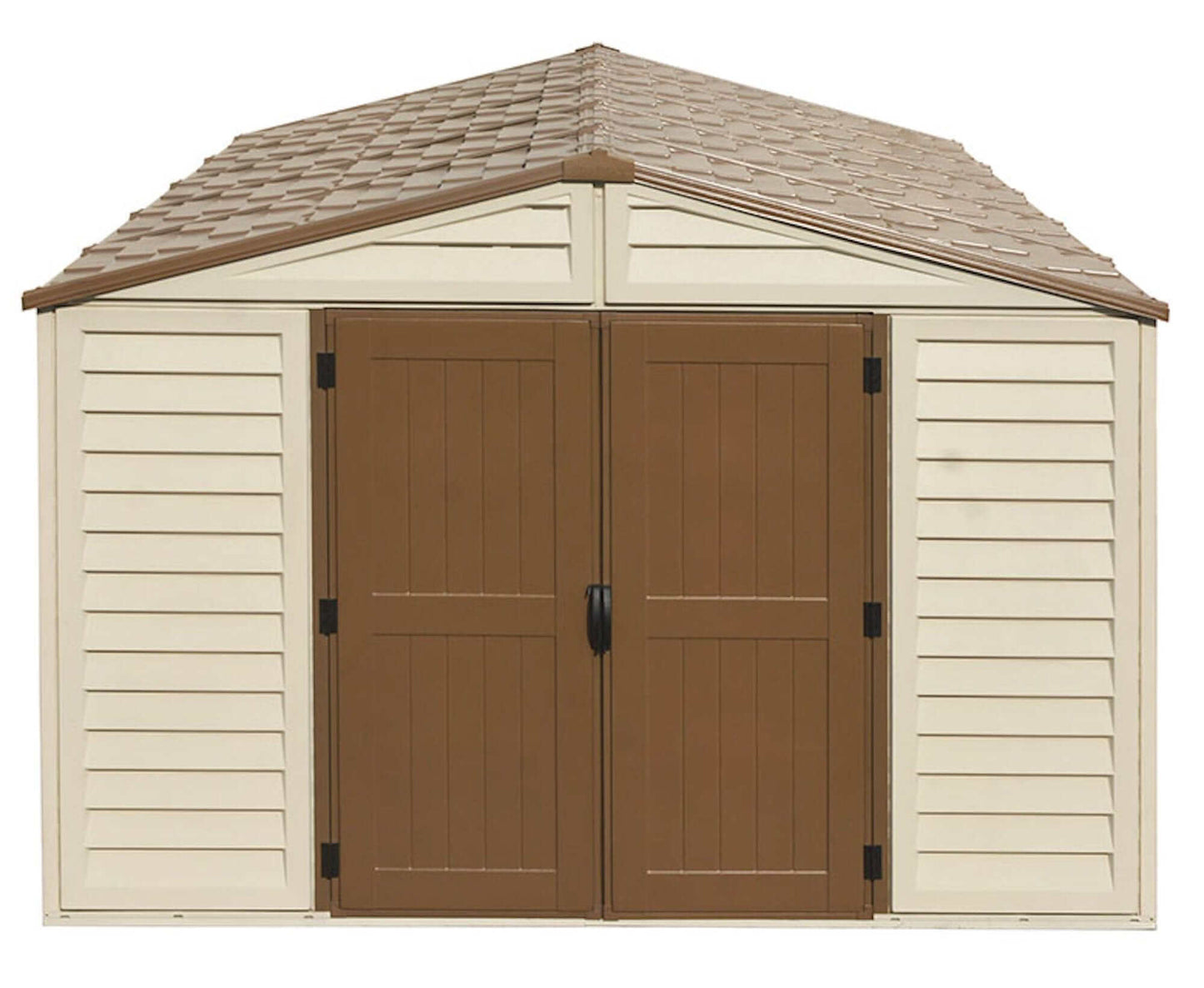

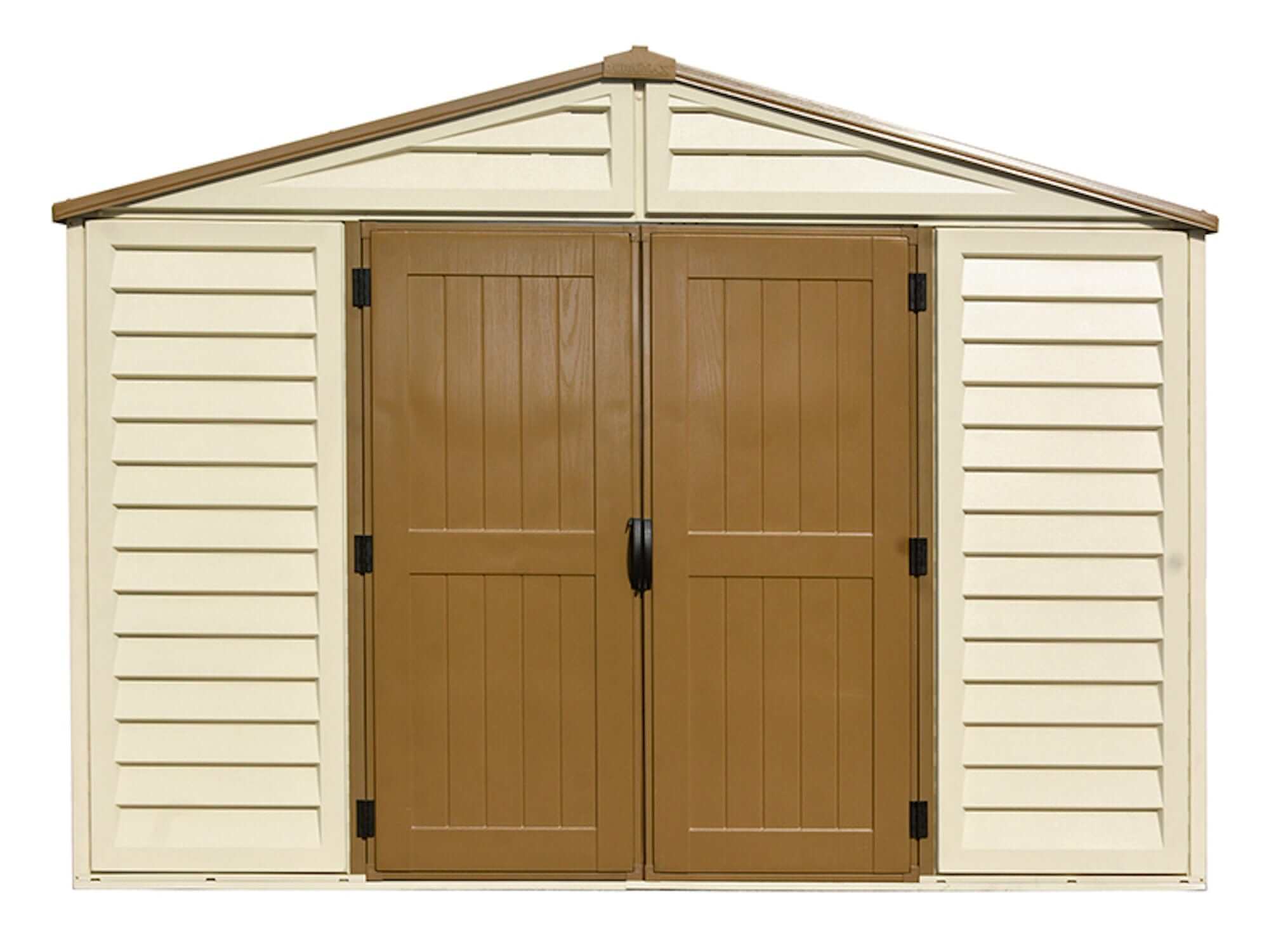

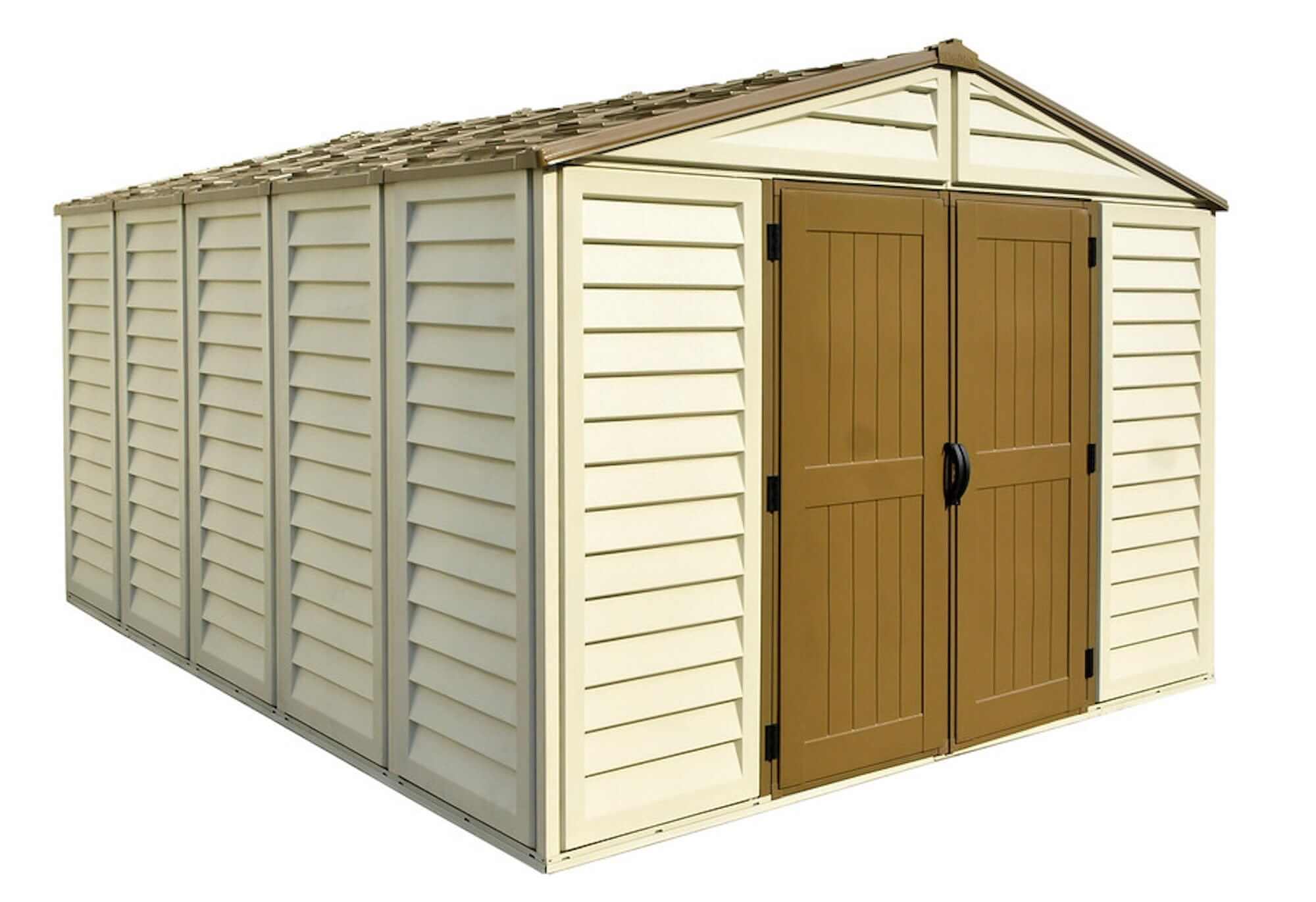

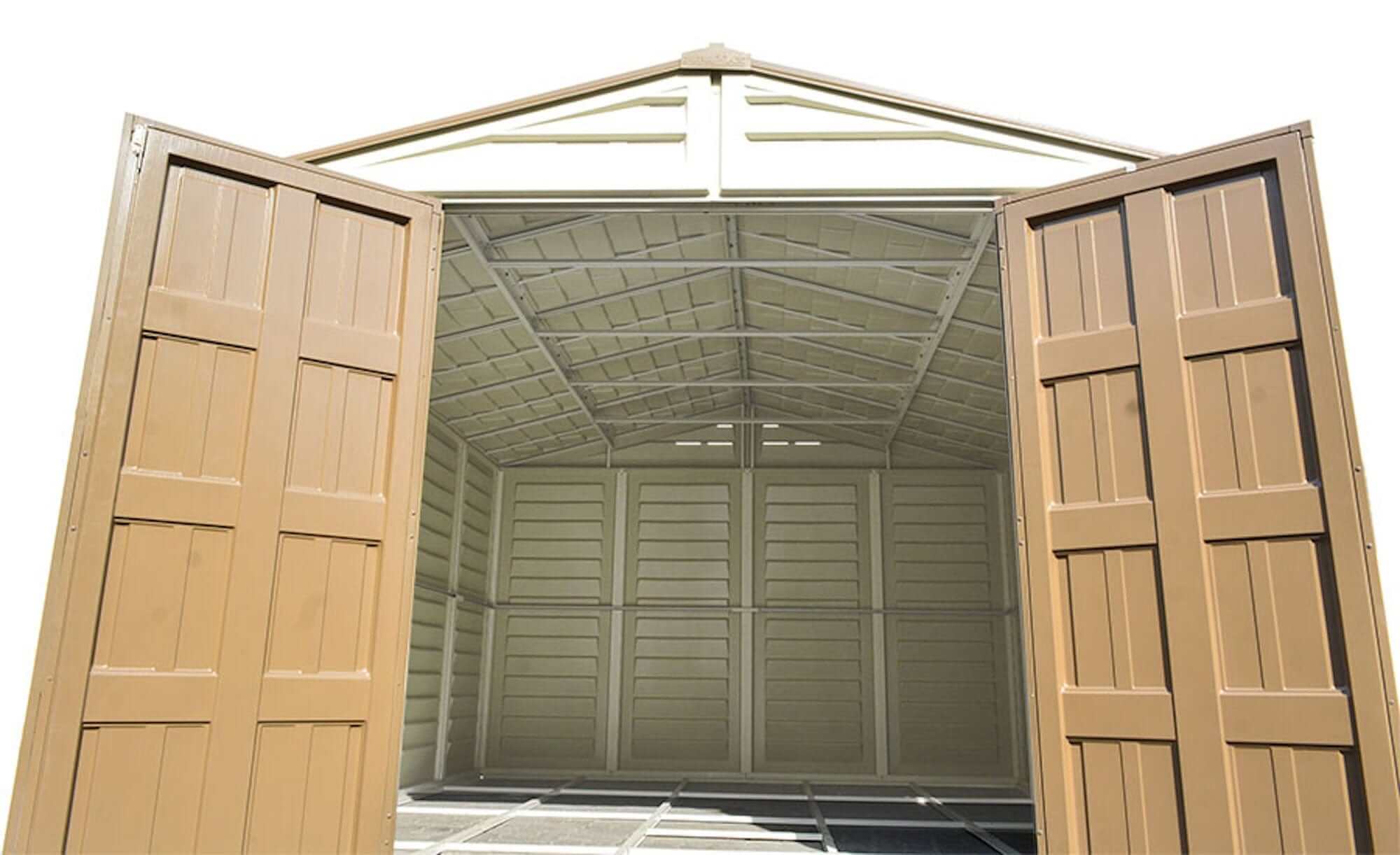

• The wide double doors measure 61" wide x 71" tall, making it easy to access large items.
• Features door handles with padlock eyes for added security (padlock not included).
• Built to support up to 16 lbs per square foot of snow, perfect for cold climates.

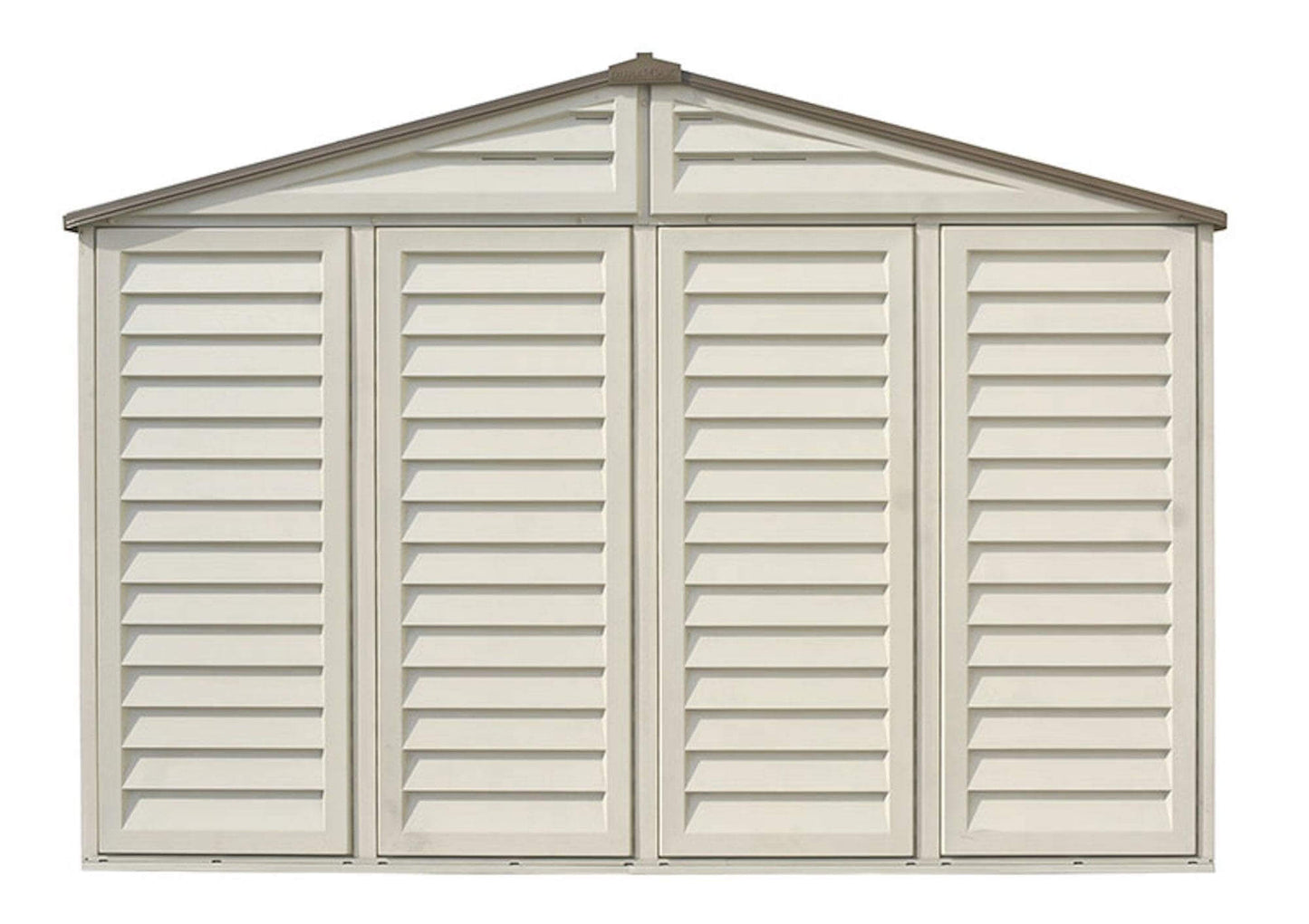

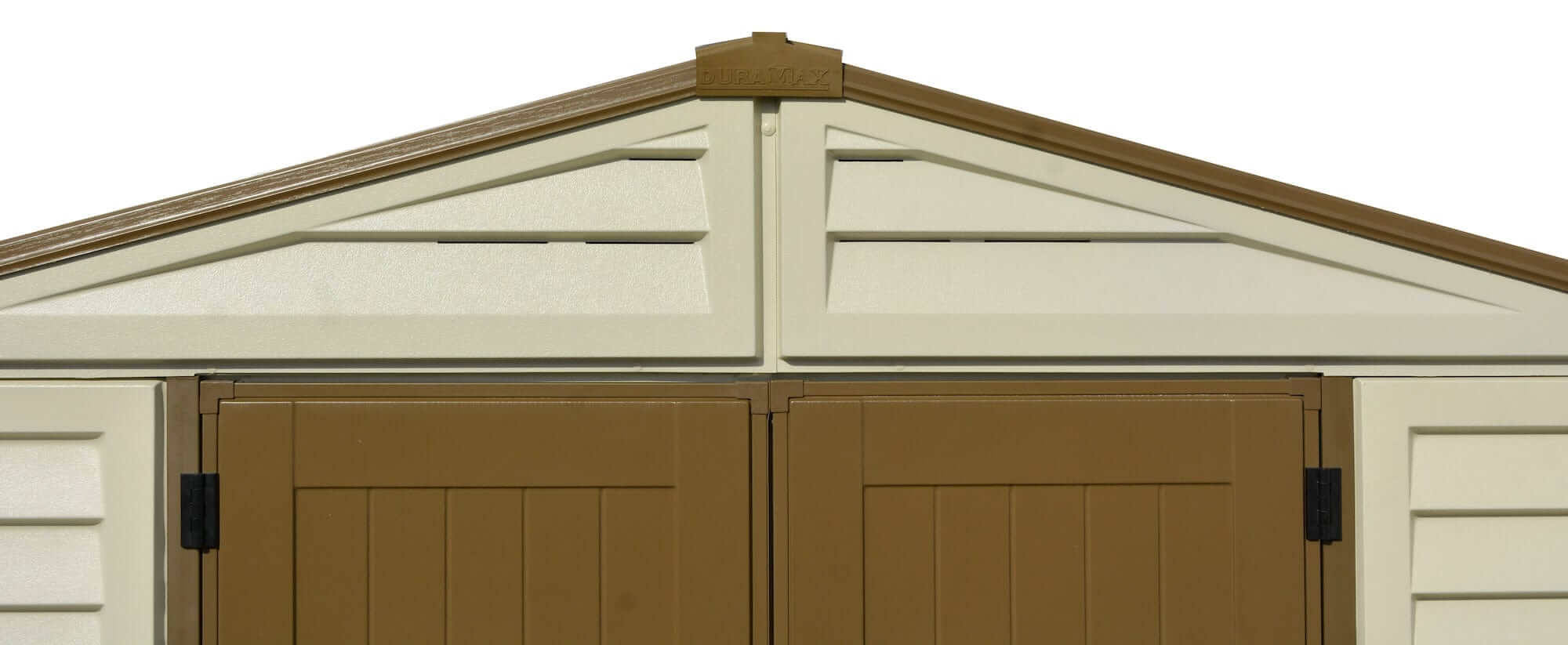

• Ventilation slits in the gable fascia provide better airflow, preventing moisture buildup.

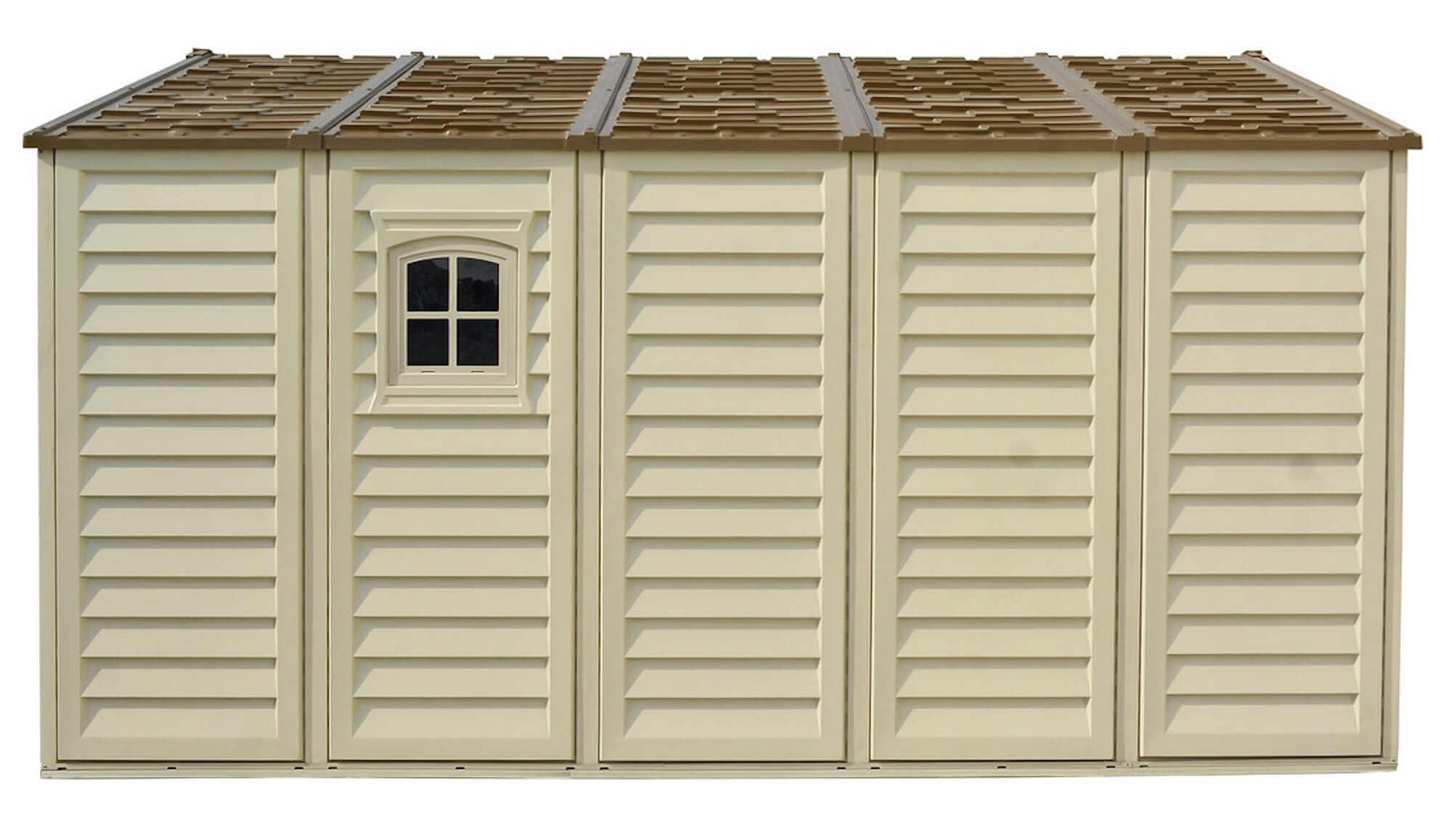

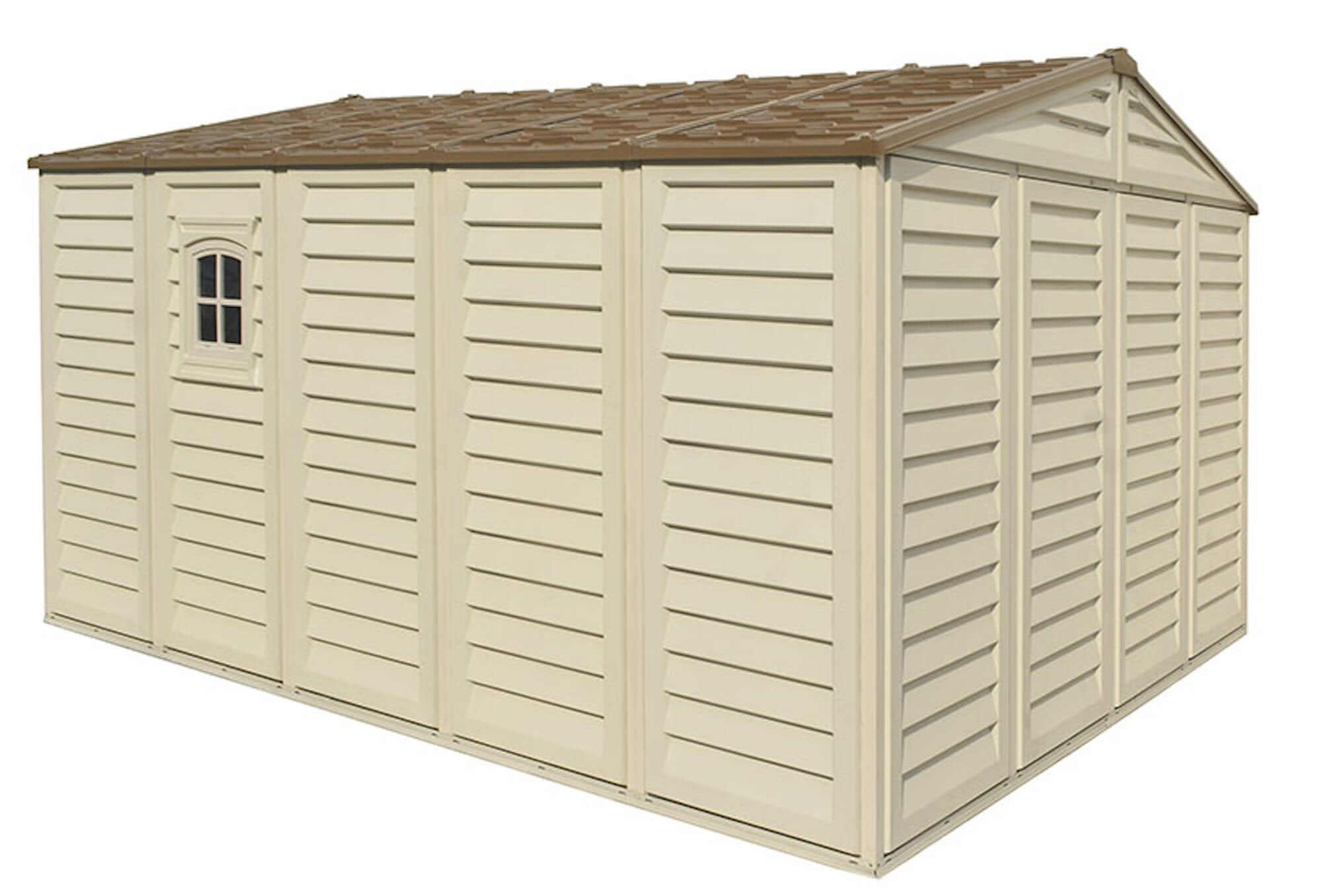

• Includes one built-in, shatterproof window for natural light inside the shed.
• Comes with detailed instructions for a straightforward, hassle-free setup.

Specifications

• SKU - 40234
• Exterior base width - 125 1/2 inches
• Exterior base depth - 156 1/2 inches
• Exterior roof width - 127 7/8 inches
• Exterior roof depth - 159 1/2 inches
• Exterior height - 91 7/8 inches
• Interior width - 123.375 inches
• Interior depth - 154.375 inches
• Interior height - 73 inches
• Door opening width - 60 5/8 inches
• Door opening height - 71 1/2 inches
• Snow Load Max - 16lbs / Sq Ft.
• Storage Area - 132.3 Sq. Ft
• Storage Volume - 805.1 Cu. Ft
• Total Boxes - 1
• Box Dimensions - 7 x 43 x 76 inches
• Box Weight - 410 lbs
• Pallet Dimensions - 25 x 43 x 76 inches
• Pallet Weight - 461 lbs

Install Info

Floor Base - To ensure that your shed withstands high winds,we recommend using this floor option. A concrete pad or large size concrete patio stone squares is recommended for suitable floor base. Make sure it is firm and level and will allow drainage away from the site. Make a level concrete foundation that has an outside dimension of 129 3/8" x 160 1/2" (3287mm x 4077mm). For a concrete pad base, prepare a level bed for a firm footing layer of crushed stone. The concrete pad should then be poured to a thickness of 4 inches (100mm) to 5 inches (125mm). Allow to dry thoroughly for at least 48 hours.We are not responsible for the choice and construction of the foundation.

Plywood Floor - This product comes with a foundation upon which plywood can be laid to create a floor. We recommend 3/4 inch Exterior Grade (CDX) 3/4 inch weather proof Marine grade plywood. The plywood is not included, but rather can be purchased at your local hardware store. Refer to the image below for the required plywood dimensions to create your shed floor.
