Top Shelf Storage Solutions - The Lift


Regular price
Price: $799.00
Regular price
List Price: $999.00
Sale price
Price: $799.00
You save: $200.00 (20%)
We pay the sales tax + Free Shipping | Ends:
Select Lift Capacity
View Cart

Free Shipping with Tracking

No Sales Tax (excluding TX)

Price Match Guarantee (excluding SafeRacks & Mesa Safe products)

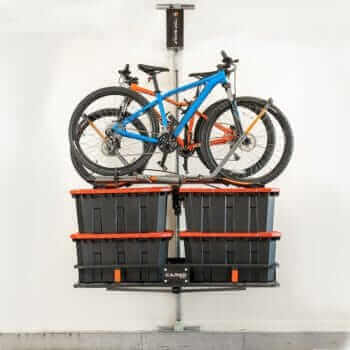

No need to get a ladder, hang hooks on the wall or suspend anything from the ceiling. The Lift’s patent motorized overhead garage storage lift system design allows you to store bikes, totes, tools, tires, sporting equipment and much more with just a push of a button.

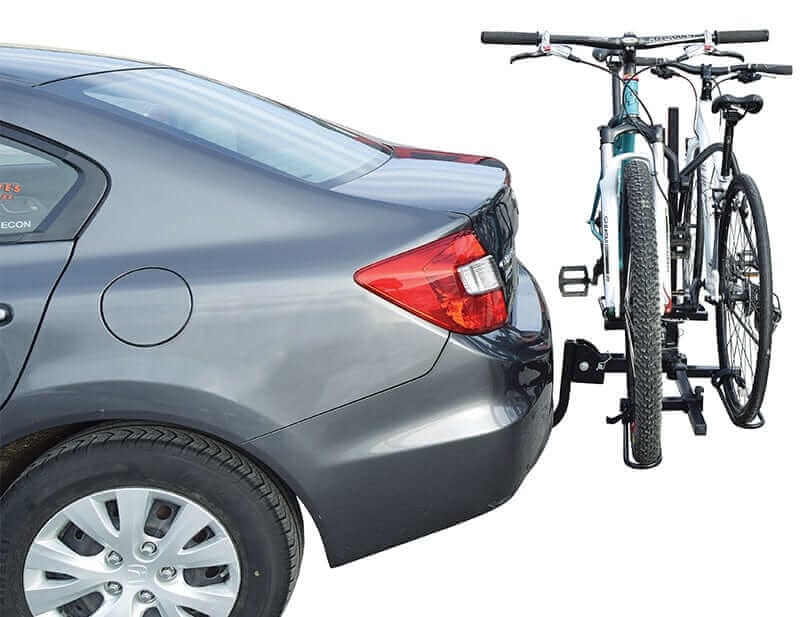

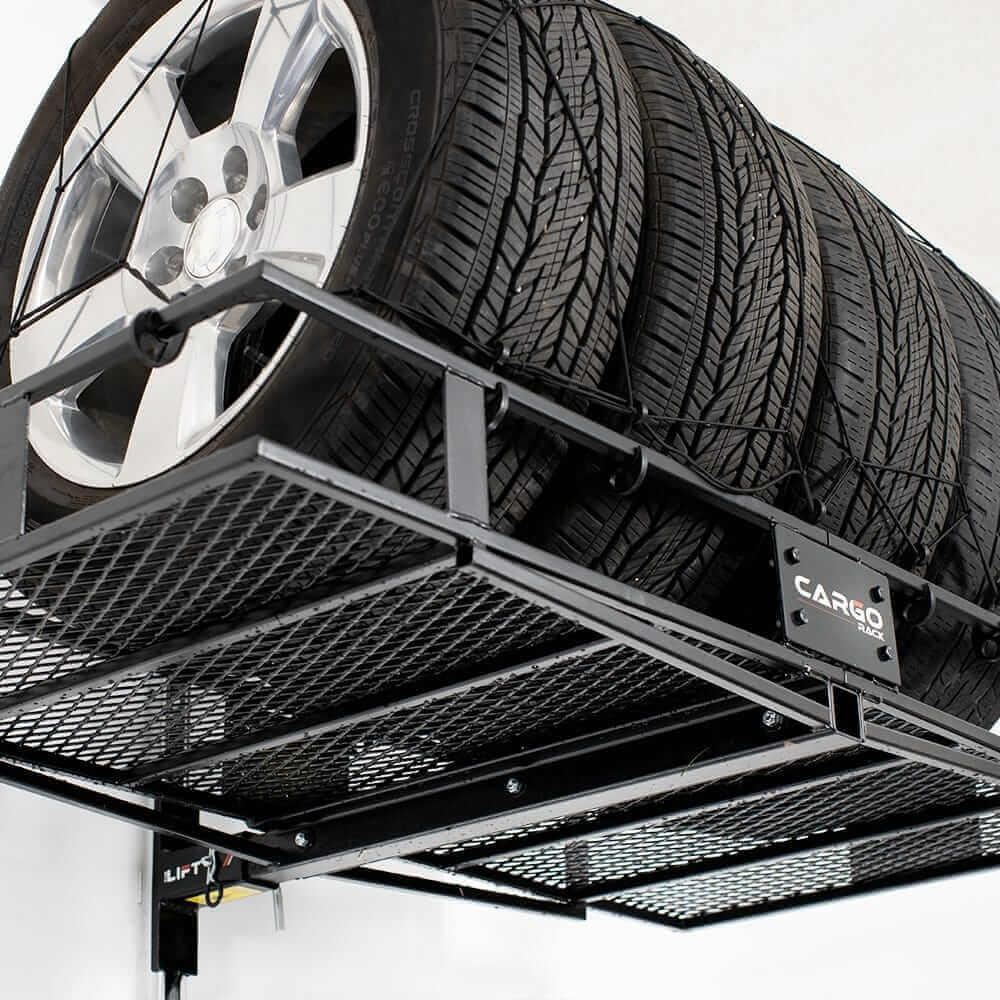

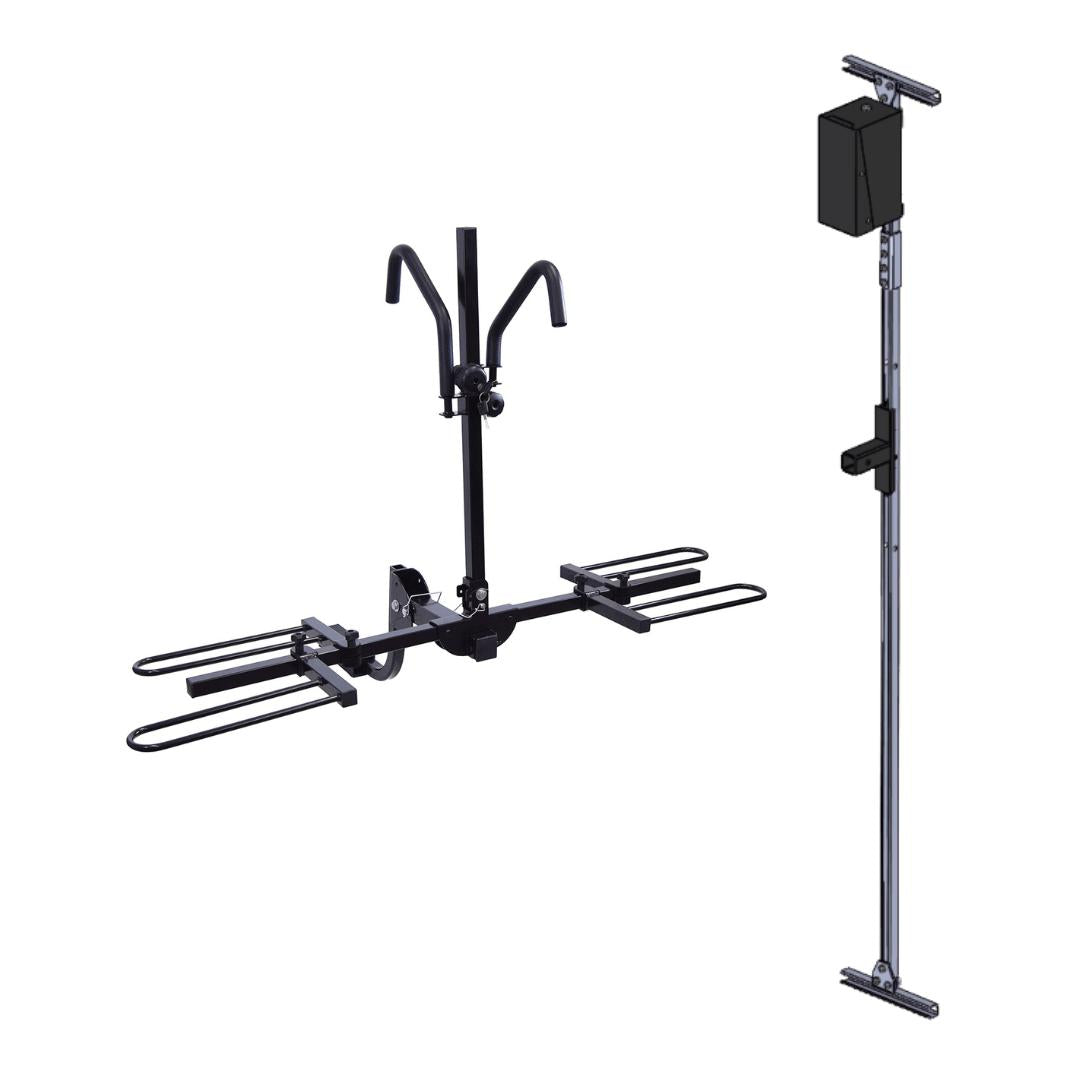

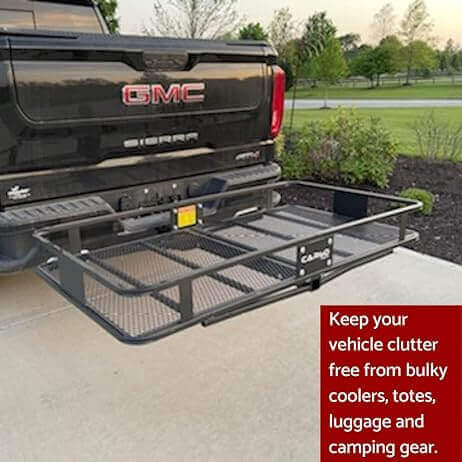

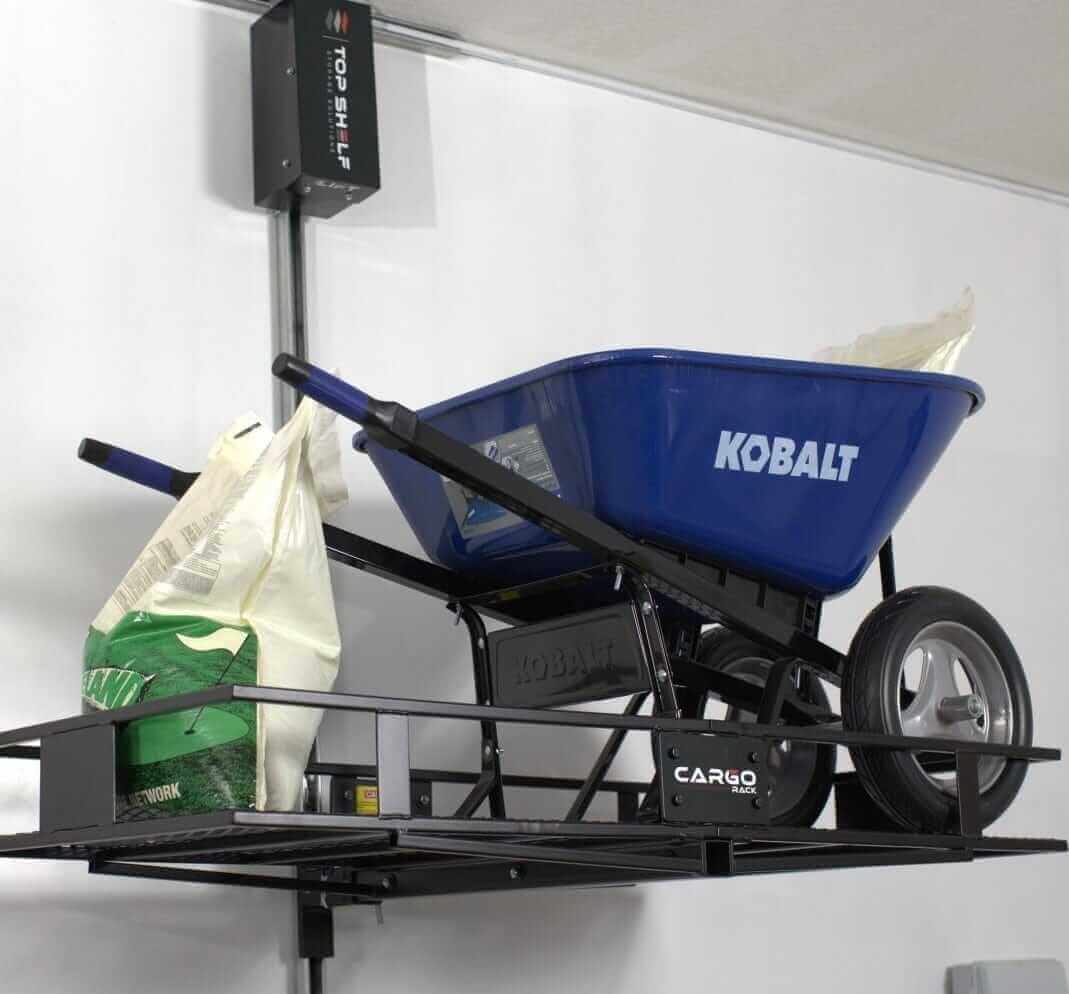

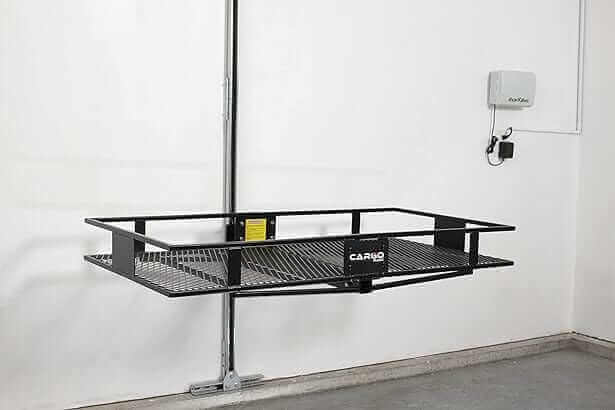

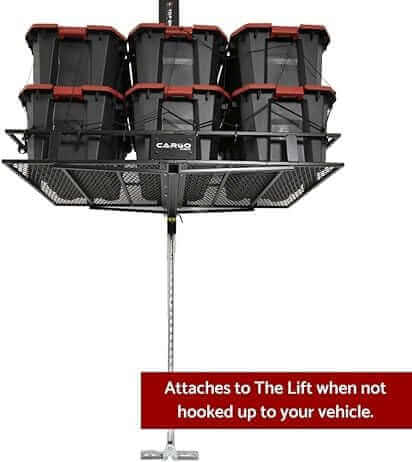

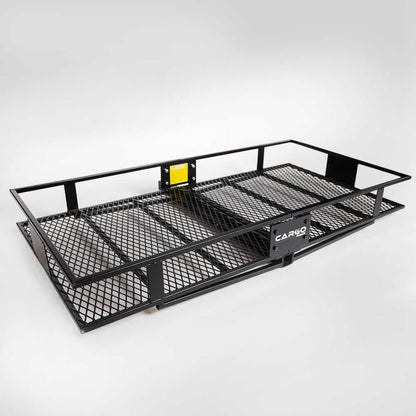

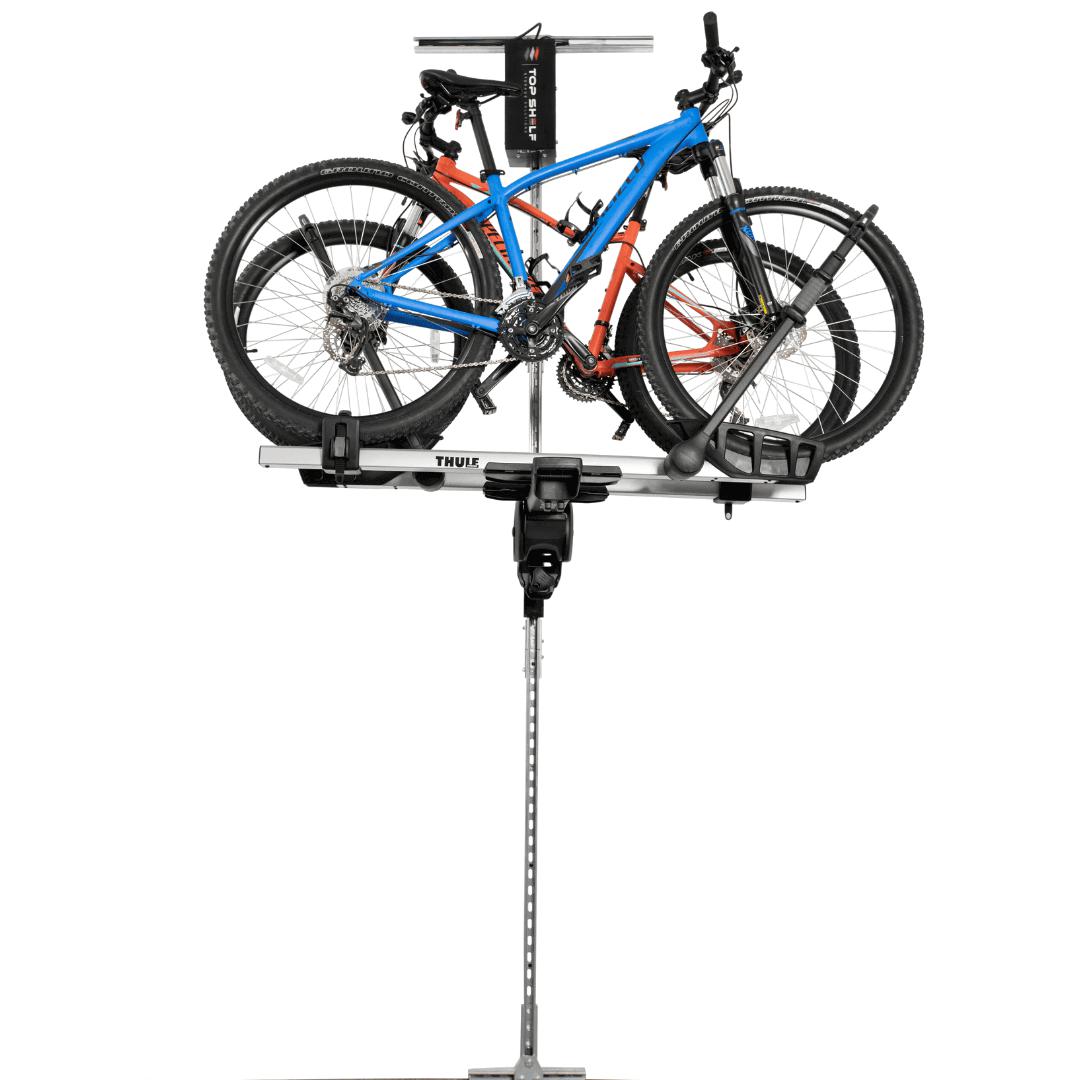

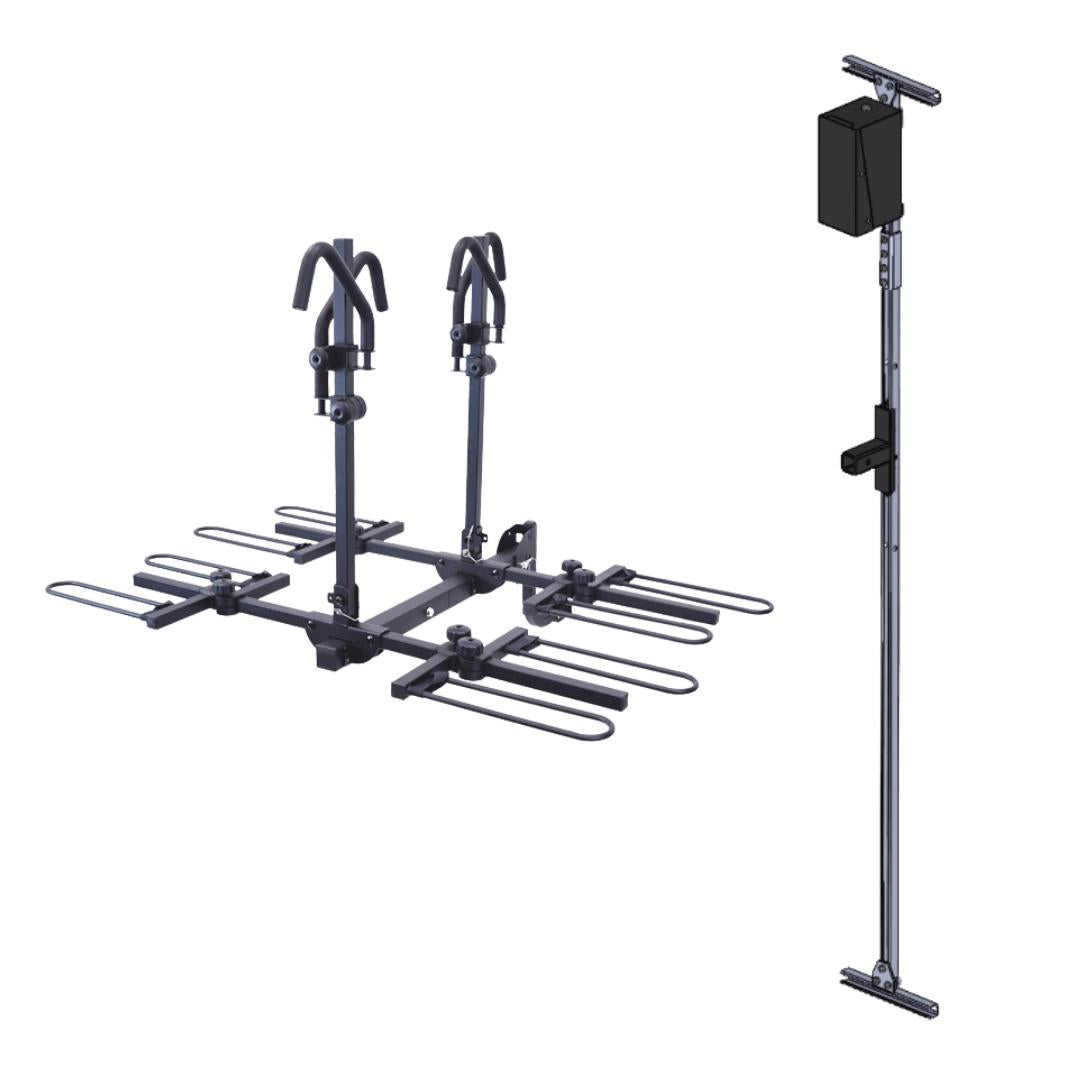

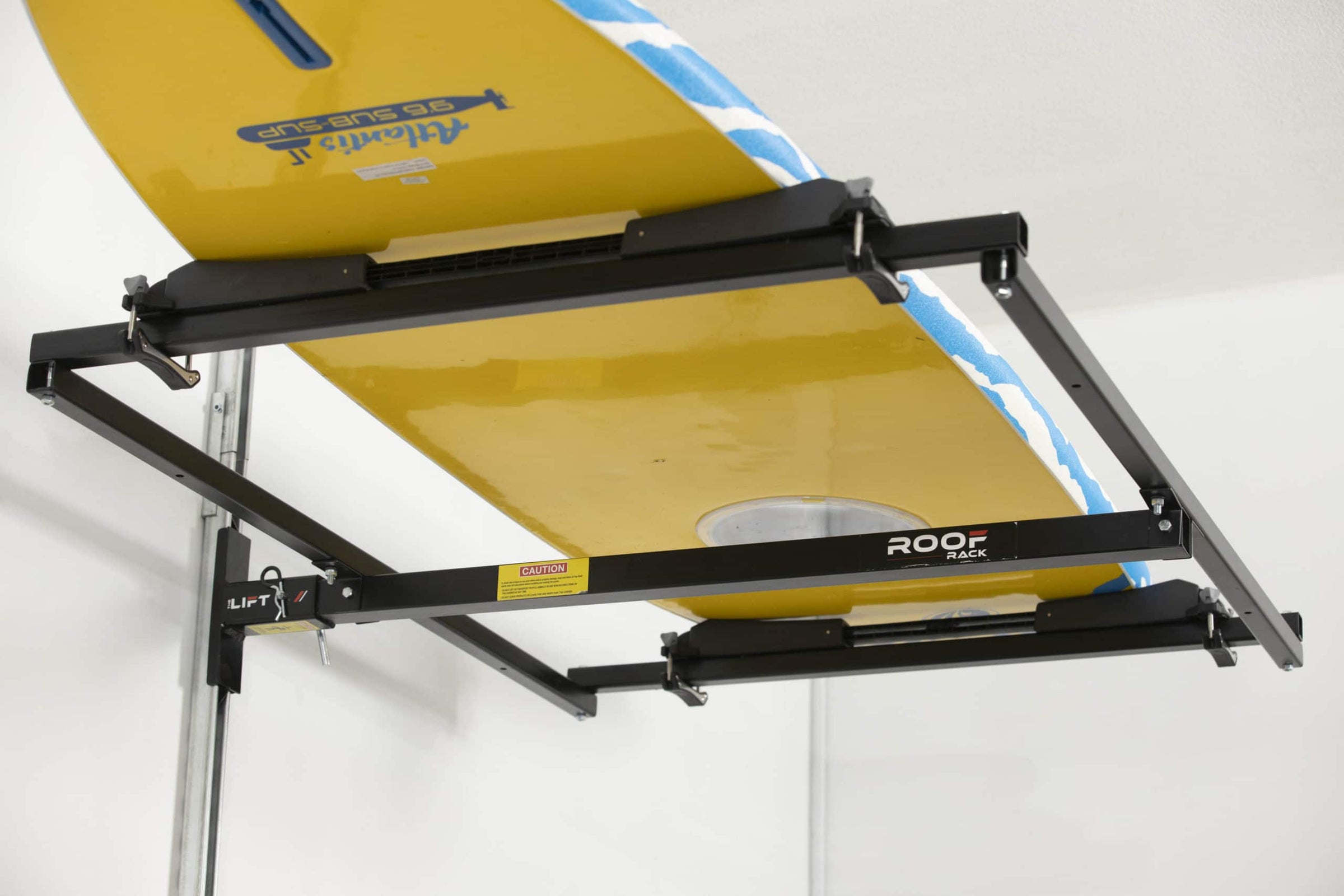

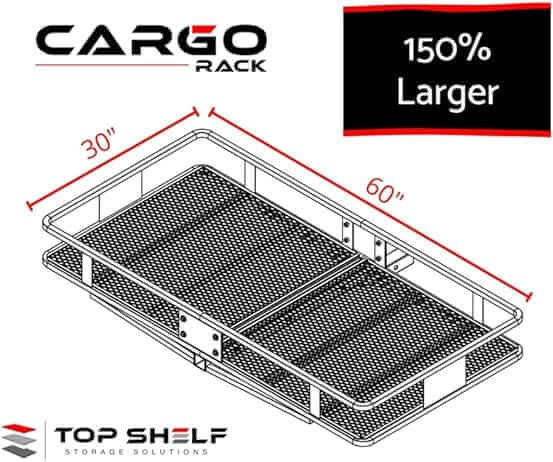

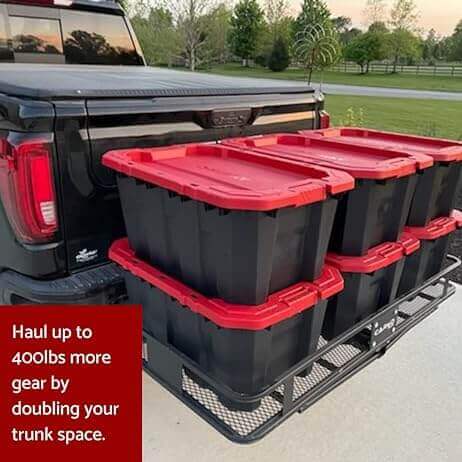

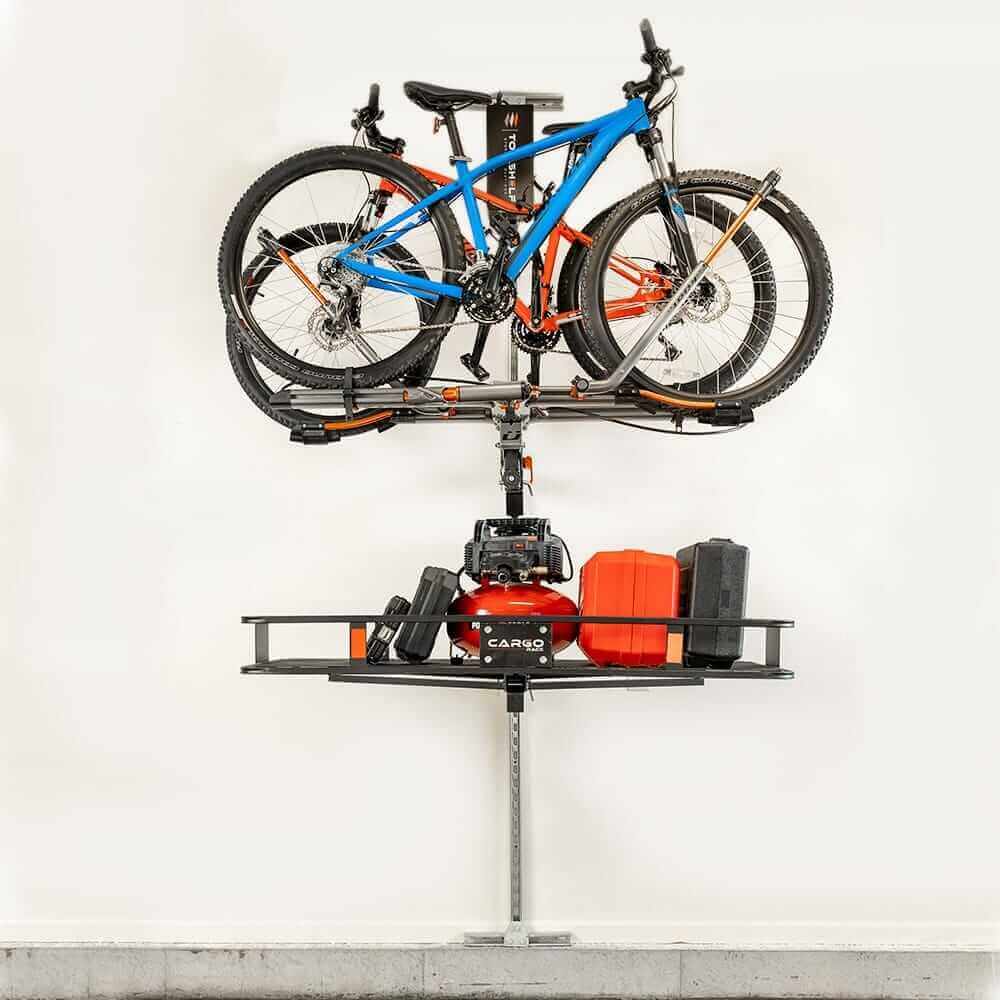

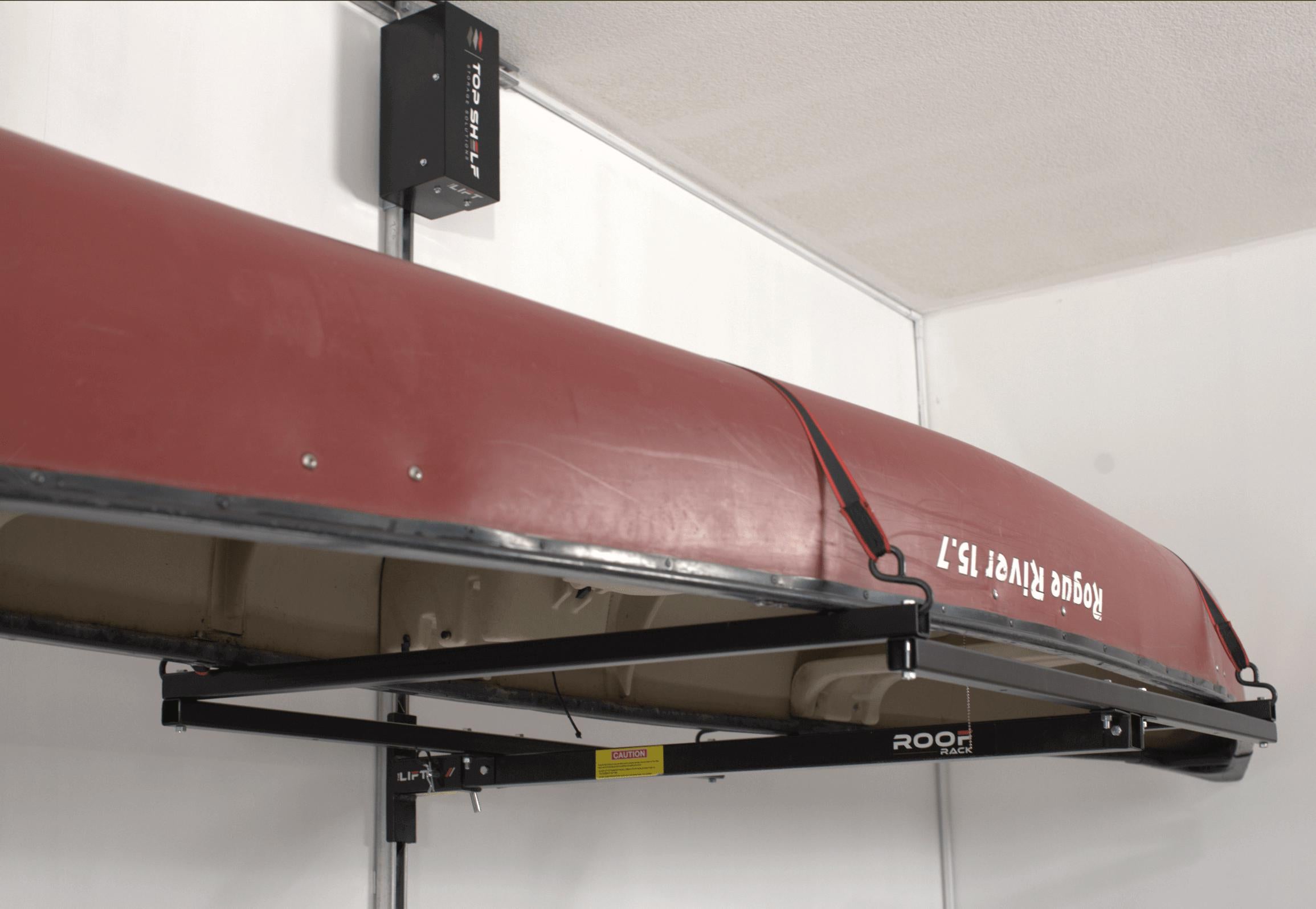

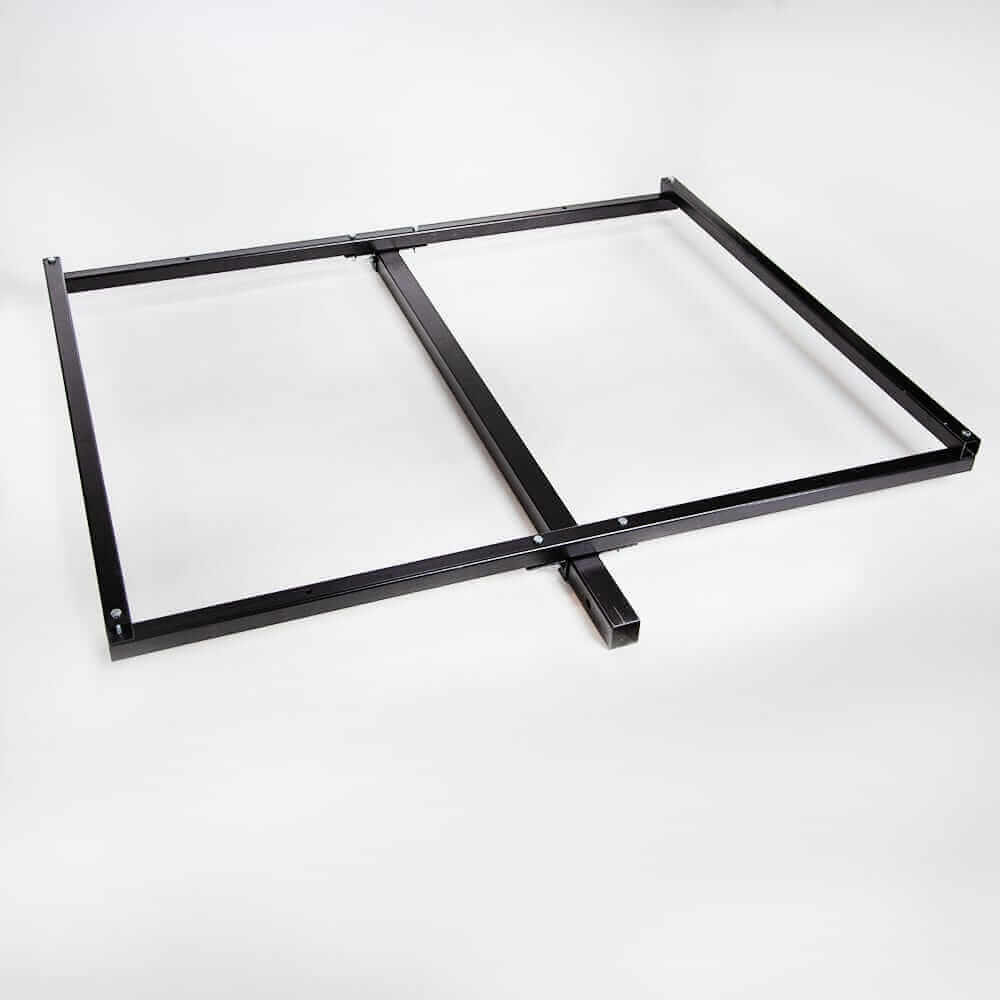

The Lift by Top Shelf Storage Solutions utilizes the industry standard 2" hitch receiver by allowing you to lift and store away common bike racks and cargo carriers you may already own. Or choose from the following optional attachments sold here: the Malone Bike Rack, the Cargo Rack, and / or the Roof Rack, which is designed to emulate the roof racks on your truck / SUV / crossover.

The Lift currently comes in two lifting capacities – 200lbs and 400lb and comes with 1 lifting Trolley with a 300lb lifting limit. To utilize maximum capacity on the 400lb model add on a 2nd trolley with the Double Trolly Kit or the Double Hitch Connector Kit.

The finished product is designed to be easily assembled, installed and safely operated with no prior experience or training needed. Daily operation mirrors the ease of a simple garage door opener.


  • Lift 400 - Safely lifts up to 400lbs (Including the weight of attachment)
  • Lift 200 - Safely lifts up to 200lbs (Including the weight of attachment)
  • Supports Double Trolley attachment for two hitch receivers

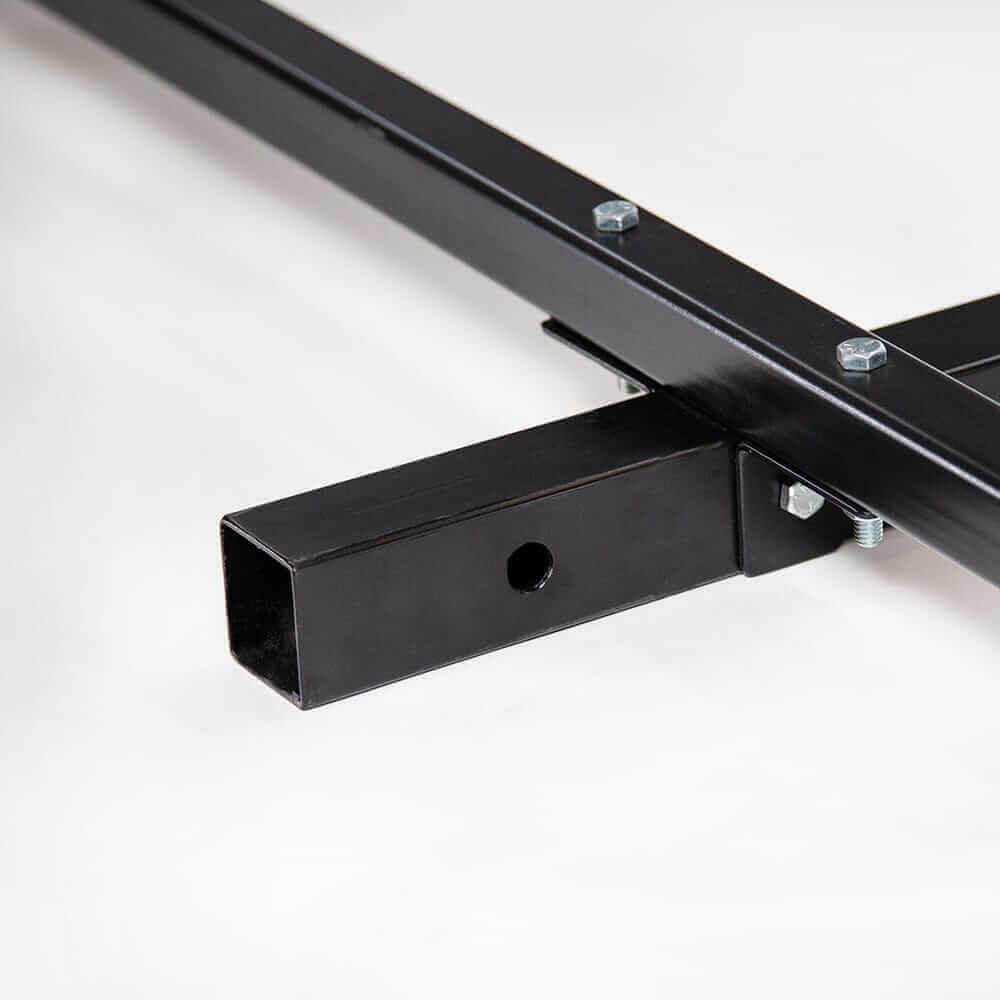

  • Supports both 2" and 1.25" hitch receiver attachments
  • Numerous safety features built into the system
  • Channel stop provided to set a common upper stopping point
  • All hardware provided to mount Lift to typical framed wall
  • Electrical Requirements: 120 VAC
  • Finish: Durable black powder coat and zinc plated finishes

Note: Lifting capacity of each trolley is based on the center of the load being lifted. If your load is centered less than 24" from the wall, the capacity is 300lbs. If more than 24” away from the wall, the load capacity decreases to 200lbs. It is not recommended to lift loads centered further than 36” from the wall.


Safety Features

  • The Lift Motor has an electronic brake when not in use to keep The Lift from moving
  • The Lift stops quickly if the gear being lifted or attachment comes into contact with something

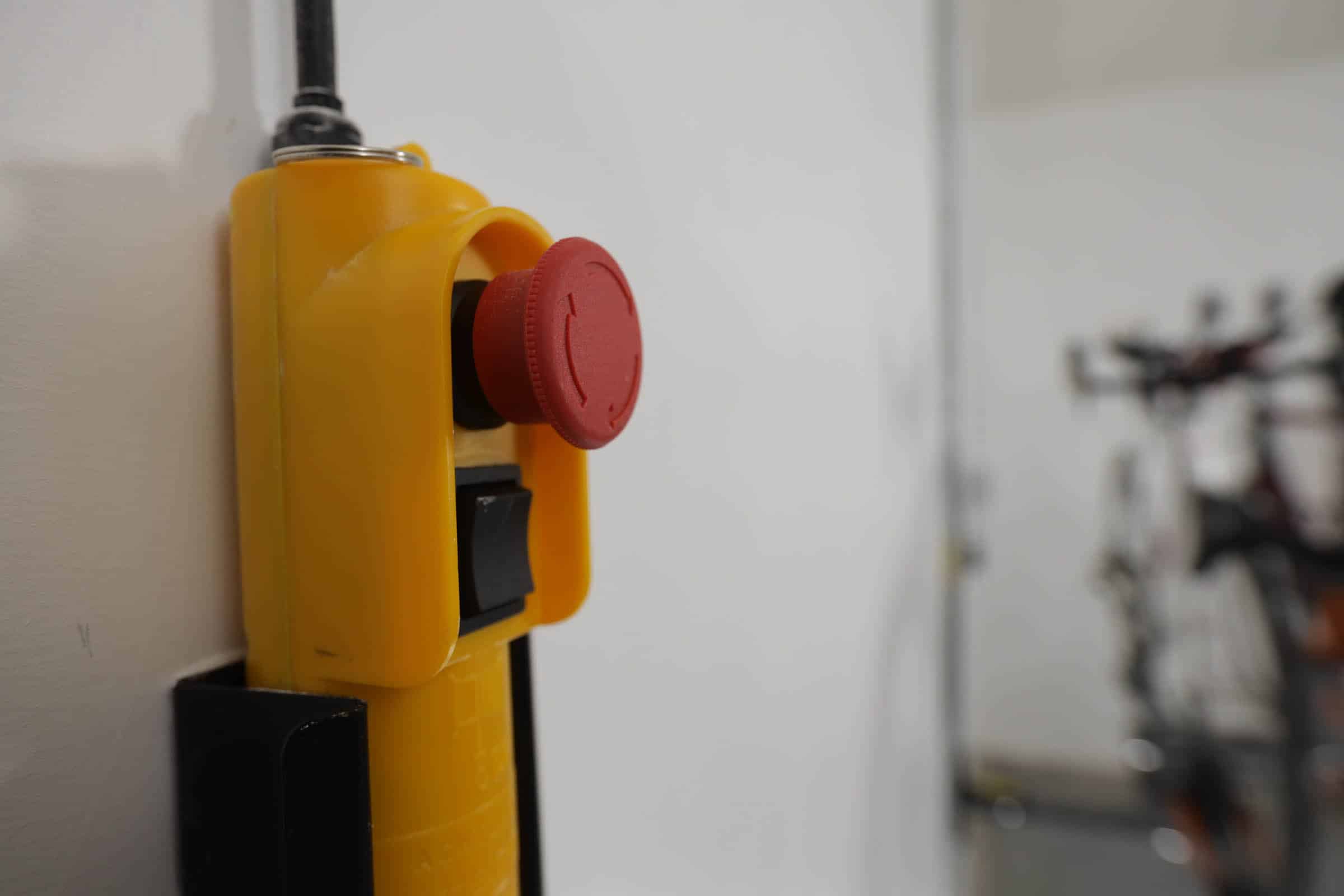

  • The controller includes a child safety lockout that must be turned to release
  • The Up/Down button on the controller must be held down for The Lift to move in either direction (this keeps the user out of harm's way and attention focused on the movement of The Lift)
  • A channel safety pin is provided to provide extra security that The Lift will not come down when not in use
  • A hitch receiver safety pin is provided to secure the attachment into The Lift's hitch receiver
  • The Lift is secured to the wall utilizing 12 lag screws (provided)
  • A cargo net or tie-down straps are required to secure items to attachment when being lifted
  • The Lift wire cable is aircraft-grade w/breaking strength of 2,000lbs


You may also choose to hire a qualified installation specialist for an additional cost.

The Lift from Top Shelf Storage Solutions was designed to be easy to assemble with standard tools. There is minimal assembly before you are ready to install the finished product. Be sure that you have identified the ceiling height where you plan to install The Lift before purchasing. Measure the height of the ceiling from the top of the foundation to the ceiling using a tape measure. Once a ceiling height is known select the proper length of channel that will provide the highest lift possible for your install location.

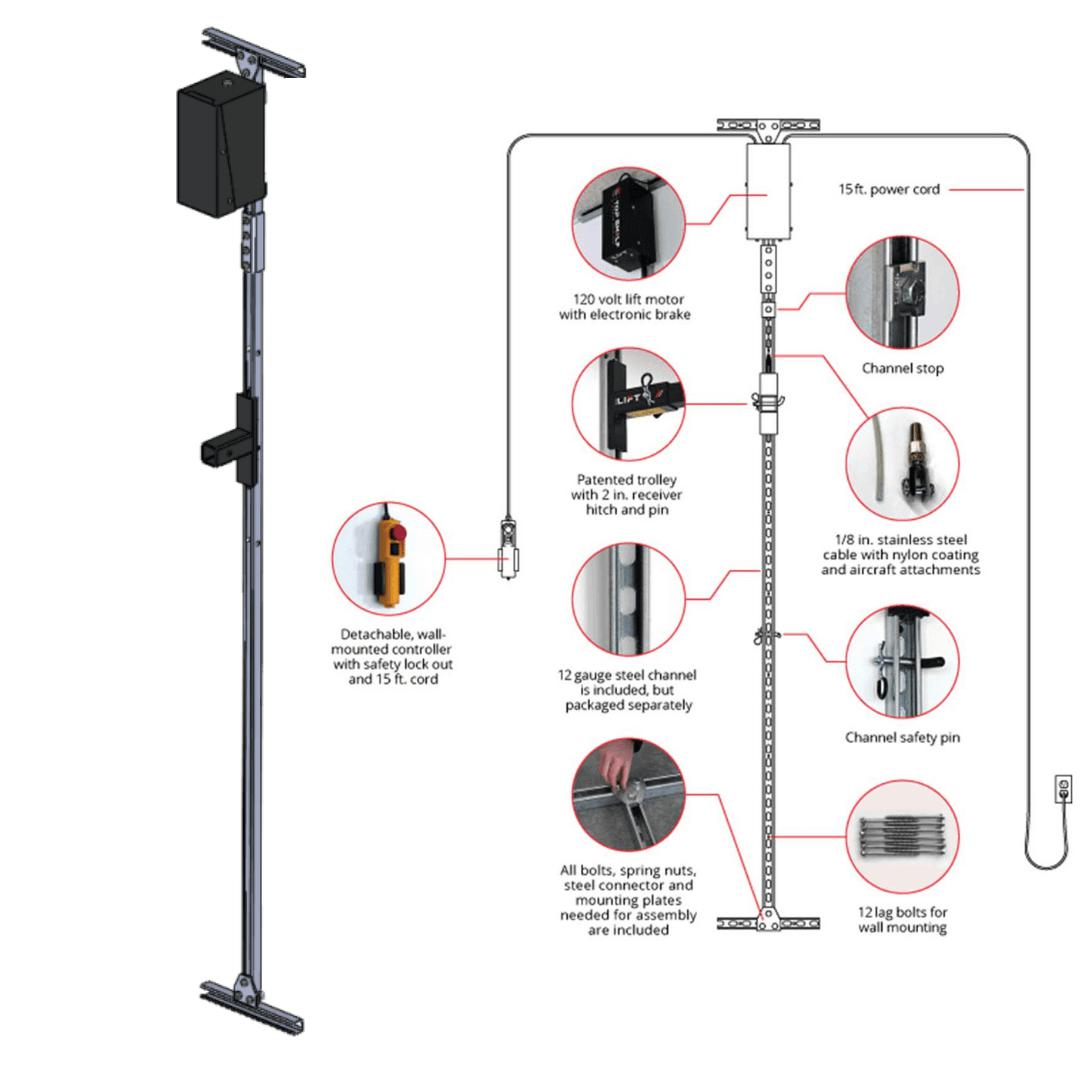

What's In The Box:

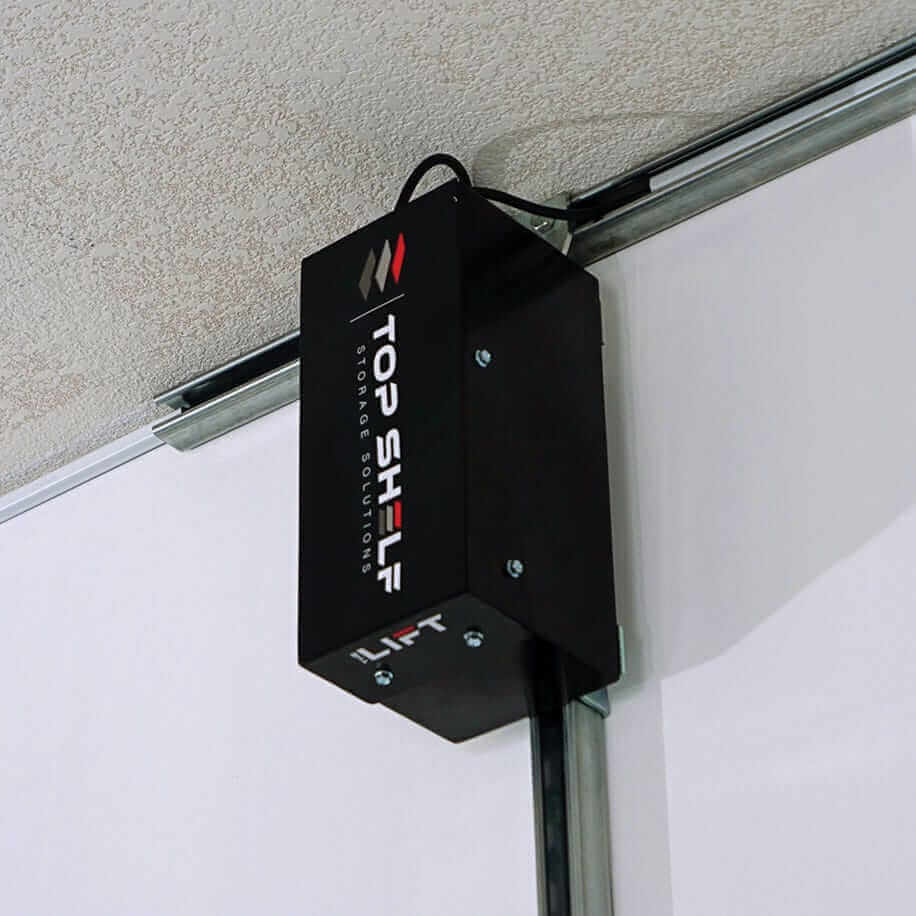

  • Lift Motor w/Electric Brake
  • 15’ Electrical Cable for 120VAC Outlet

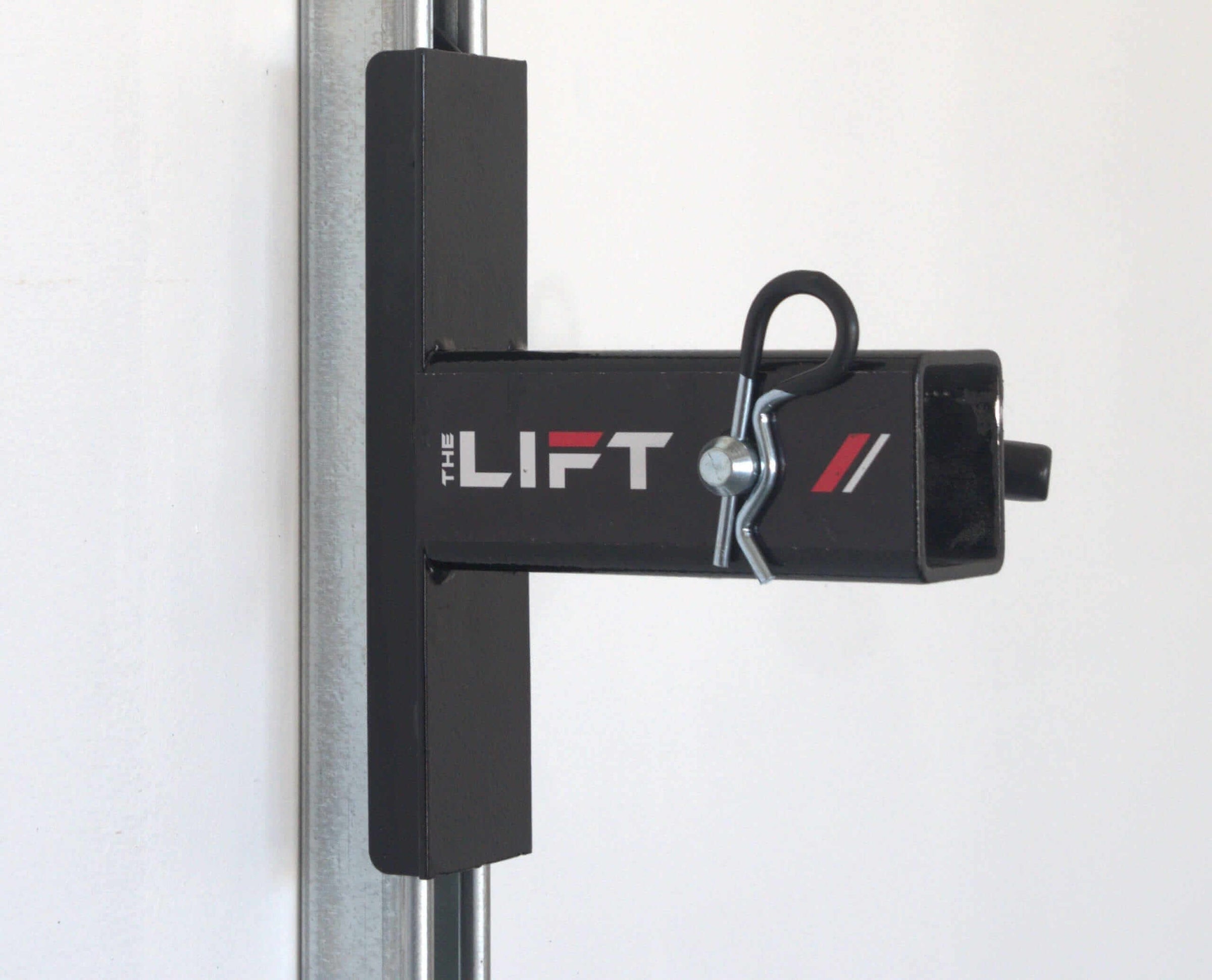

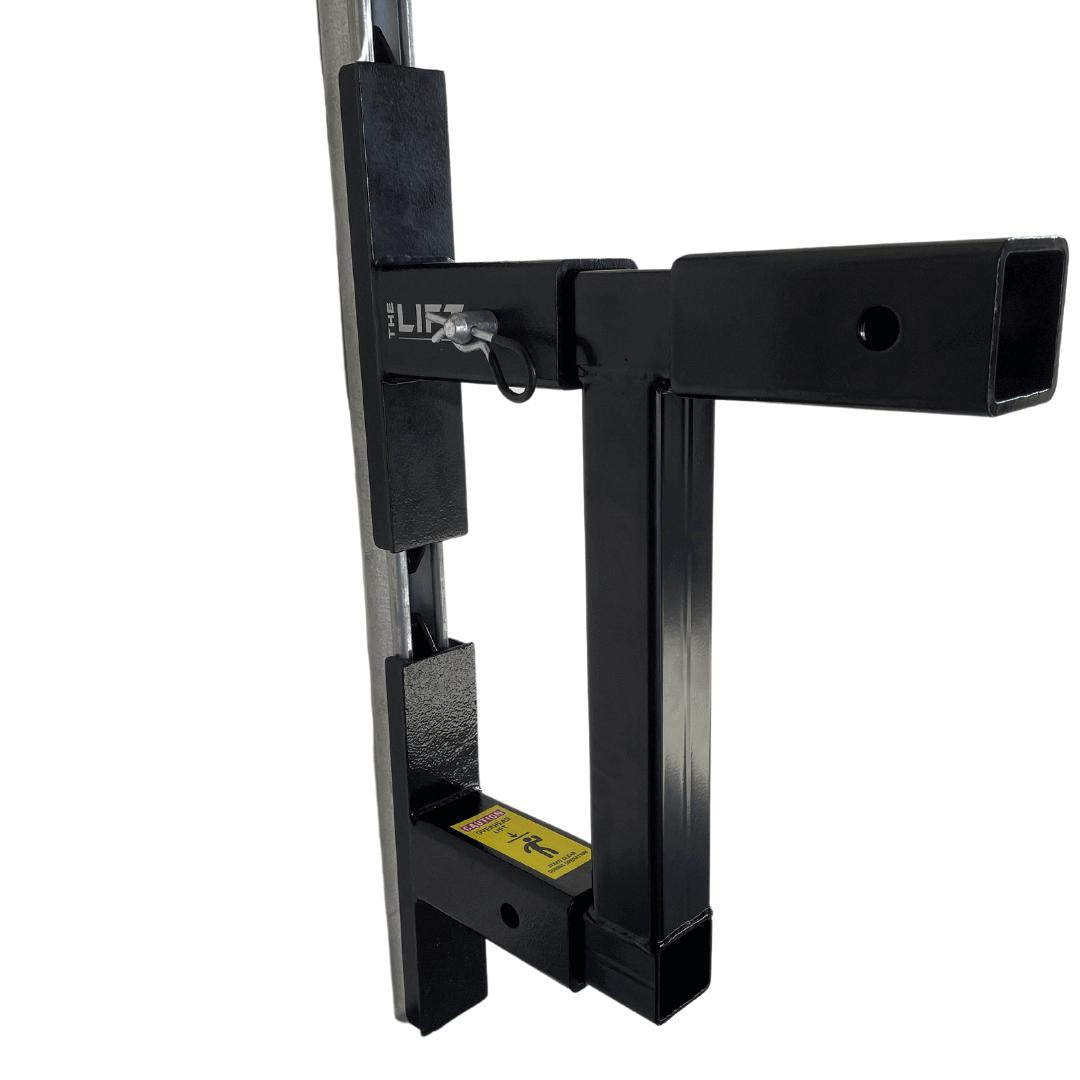

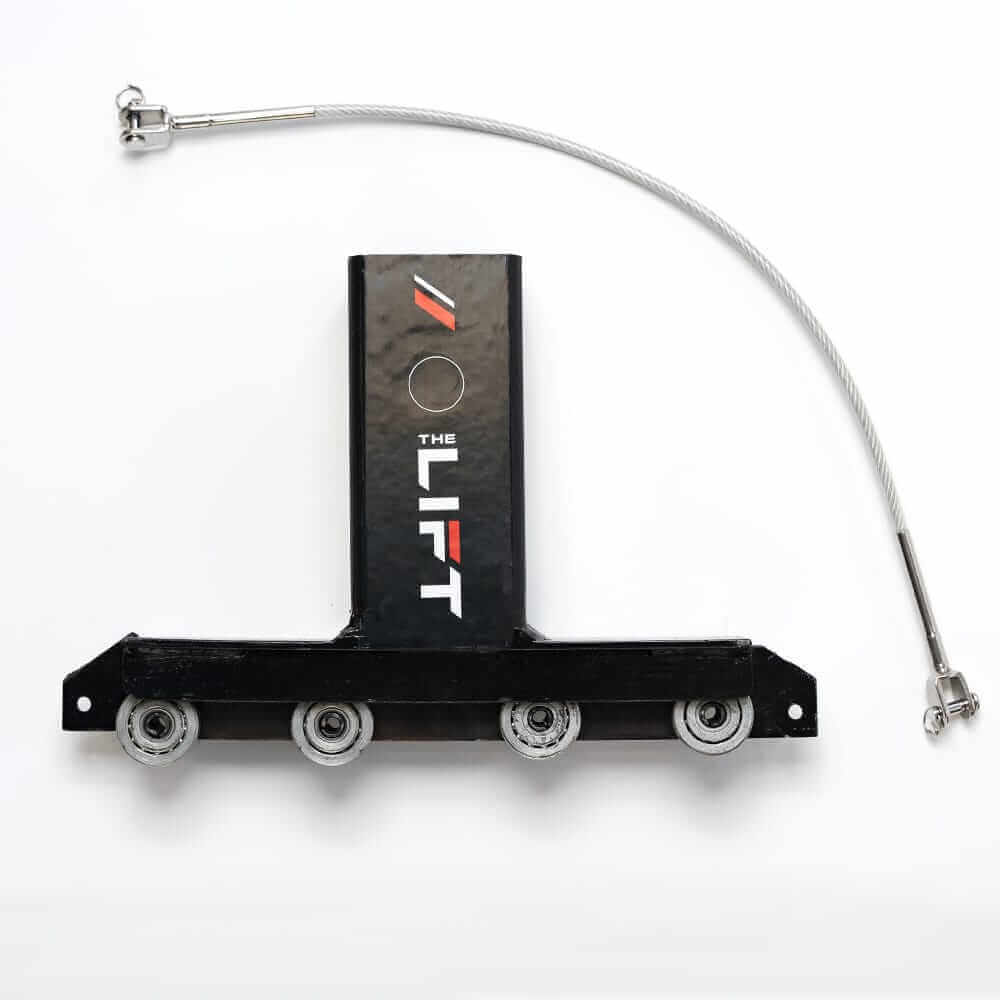

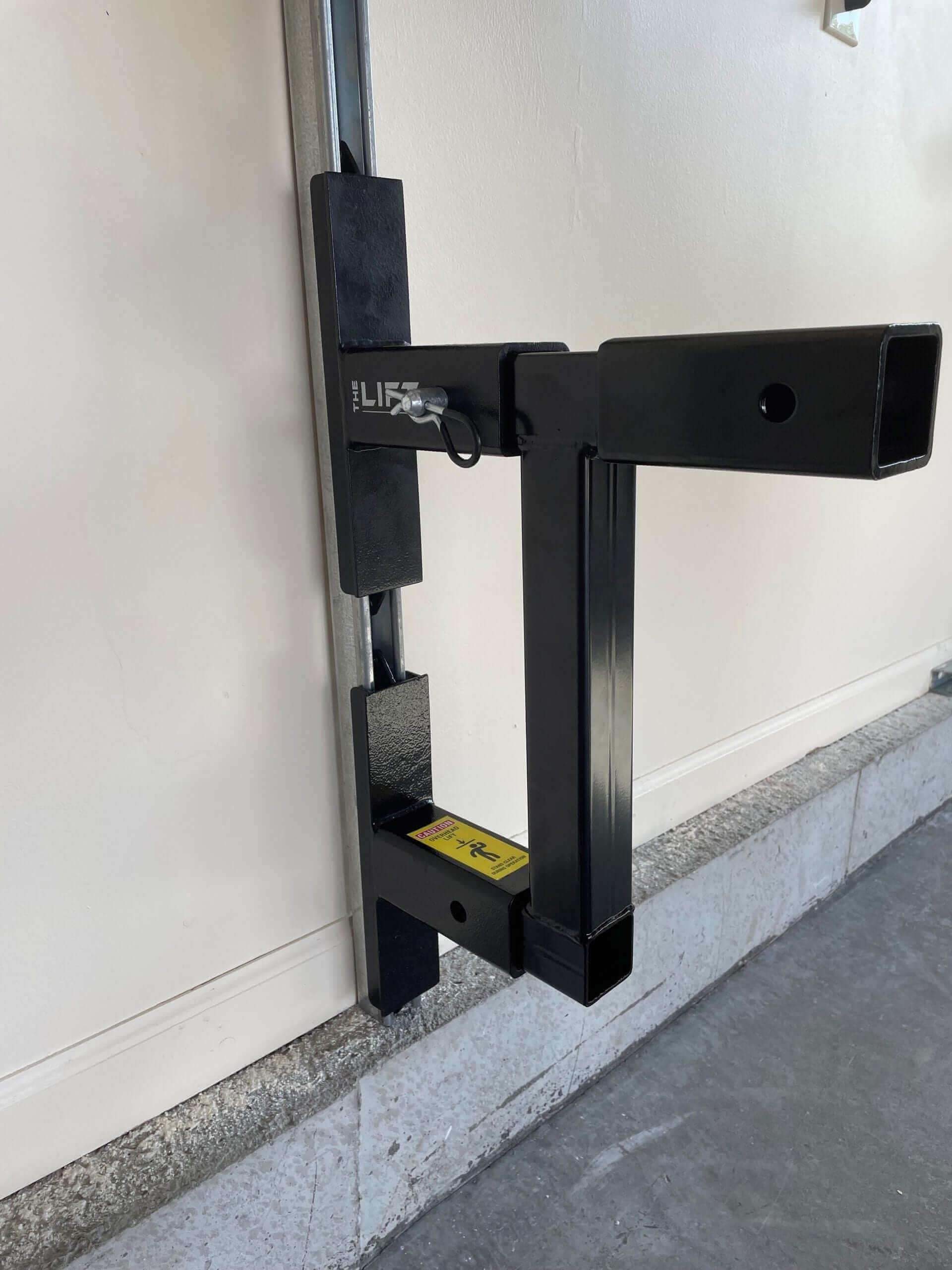

  • Trolley with 2" Hitch Receiver
  • 15’ Cable for Controller w/Lockout
  • Wall Mount for Controller
  • 5/16" Nut Driver for Lag Bolts
  • Note: Main channel is included with The Lift but packaged separately
  • Select Channel Length to Match Ceiling Height

Tools Needed:

  • Drill or Ratchet Wrench
  • 0.75" Wrench or Socket
Hardware Provided:
  • All Assembly Hardware Provided

You may also choose to hire a qualified installation specialist for an additional cost.

Choosing an Installation Location

  • Consider ceiling height, electrical outlet location, size of item(s) scored and ease of access.
  • Determine the total width of the rack(s) and items to be stored items and allow approximately 2' of clearance from adjacent walls, shelves and other objects
  • An open floor area below THE Lift equal to the width and depth of the rack and stored item(s) is required.

The Lift requires two people to lift and secure to the wall. Locate an area that provides at least 10' of clear space on the wall and a 10' x 10' clear floor space to ensure safe operation. Using the stud finder locate a stud near the center of the area identified on the wall and mark the center of the stud with a pencil in multiple locations. Using a straight edge draw a vertical line through the pencil marks made earlier to identify where the channel will be mounted.

Tools Needed:

  • Drill or Rachet 5/16” Nut Driver for Drill (Provided)
  • Tape Measure
  • Straight Edge
  • Stud Finder
  • Pencil
  • Ladder

Hardware Provided:

  • Twelve (12) – 5/16" Lag Bolts
  • One (1) – 5/16" Socket Driver

Top Shelf Storage products ship via UPS Ground and typically ship same day or next business day.  12ft models ship LTL due to the channel length.

30-Day Money Back Guarantee

We offer a 30-Day Money Back Guarantee on all unopened, unused, and undamaged units. The unit must be unaltered and in original, new condition. Shipping charges to Top Shelf Storage must be paid by customer.

Upon acceptance and processing of the return, all funds will be returned to the original method of payment (minus any fees) and will be processed within 7 business days of receipt of product (excluding weekends and holidays).

Top Shelf Storage reserves the right to remedy any minor defects in defective units by replacing defective, inoperable, or missing parts rather than offering a refund or exchange.

If you have any questions or would like to initiate a return, please contact contact Ace Garage Storage at

Top Shelf Storage offers a 1 year limited warranty.

We work very hard to ensure that we offer the absolute best prices online.  If you find another online store that offers a lower price then us within six months of your purchase date please let us know and we will refund your original payment for the difference.  We want you to feel confident that you are getting the absolute best price for the product you are ordering.  If you find that our own website has a lower price for the same item you have ordered within six months of your purchase date will refund the difference as well.

To request your partial refund simply e-mail us a link to the same product on our website, or on our competitors website within six months from the date of your order and we will process the credit accordingly.

Our 100% Price Guarantee has some limitations:

  • You must purchase the item from our website before requesting your Price Match Guarantee
  • Promotions such as rebates and buy one, get one free offers are not eligible
  • The item must be in stock on the competitors website
  • The competitor must be an online store, they may not have a retail location
  • The website can not be a discounter or auction website (ie; eBay, overstock, etc..)
  • The competitor must be an Authorized Retailer of the product in question
  • The Price Match Guarantee includes the item price, including any discounts, and the shipping charges. It excludes sales tax.
  • Saferacks and Mesa Safe products are excluded and will not be price matched.
