Auxx-One Single Motor Universal Lift
Auxx-One Single Motor Universal Lift
✓ Free Shipping (no code needed)
✓ No Sales Tax (except TX & FL)
Low stock
Couldn't load pickup availability

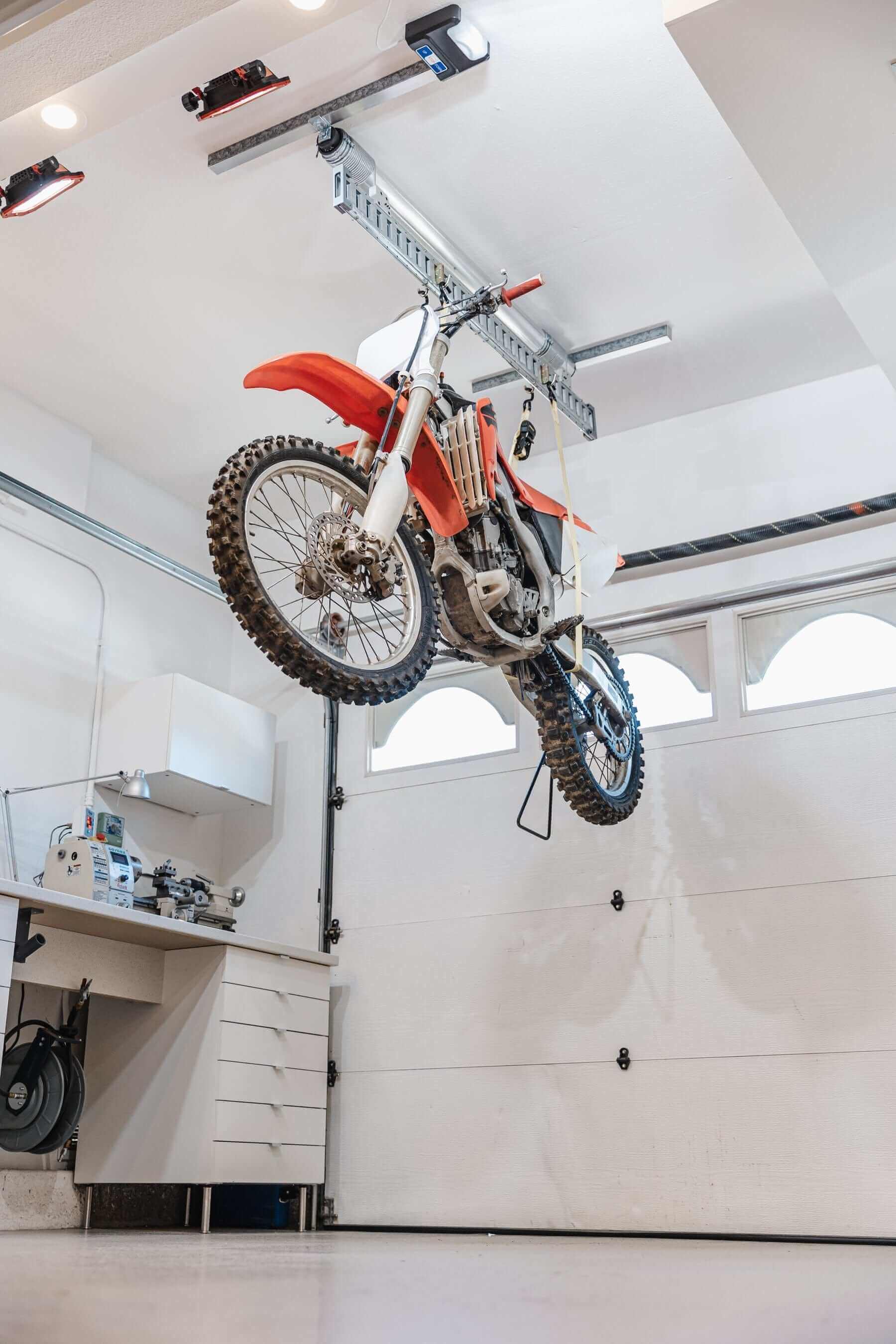

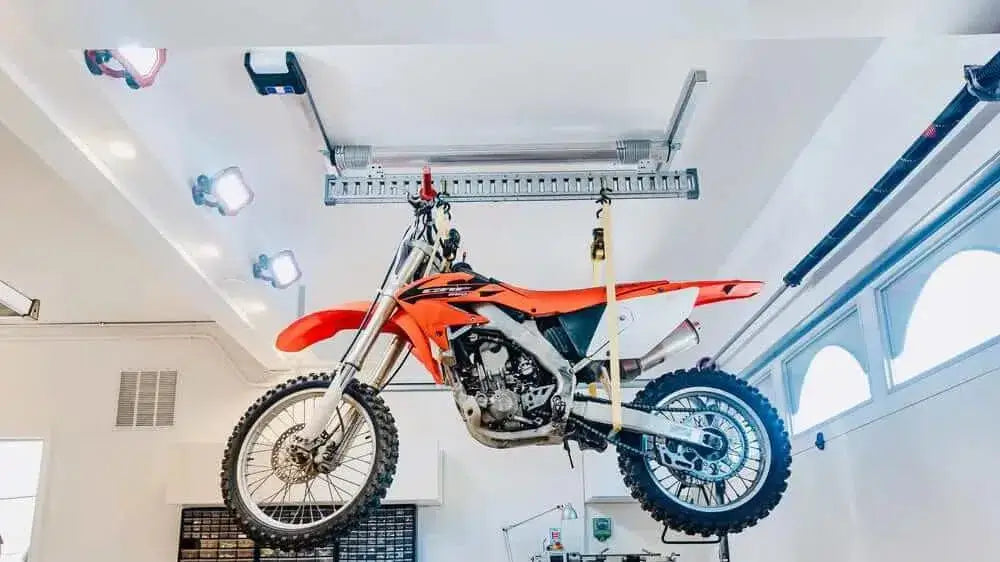

Tired of battling bulky items? Auxx-One lifts life to new heights! The solo motor marvel with a robust 400lbs capacity, hoists your heavy goods to the ceiling, including your truck top, fifth wheel hitch, bicycle, canoes and more. Keep the floor clear with safety guaranteed, all via wireless remote control. Revolutionize your space today with this heavyweight hero for all your garage storage needs.
** How much will it cost for a professional to install the Auxx-One Single Motor Universal Lift? We can connect you to a local installer who will provide a price quote. Send us a message via live chat or text at 844.900.0067. **
Features:
- 400 lb lifting capacity: Hoist your truck cap, paddleboard, bicycle, motorbike, and anything else cluttering your garage.
- Wireless Remote Control: Command with ease - raise, lower, all at your fingertips
- Safety Priority: No overloading, zero spinning or twisting - dual cables at your service
- Custom Tailoring: Snug straps, carabiners, hooks ensure balanced bounty
- Multipurpose E-Beam: Industrial steel track keeps everything in place, corrosion-proof
- All-Purpose Solution: Bikes, boats, gear - store it all and free your space

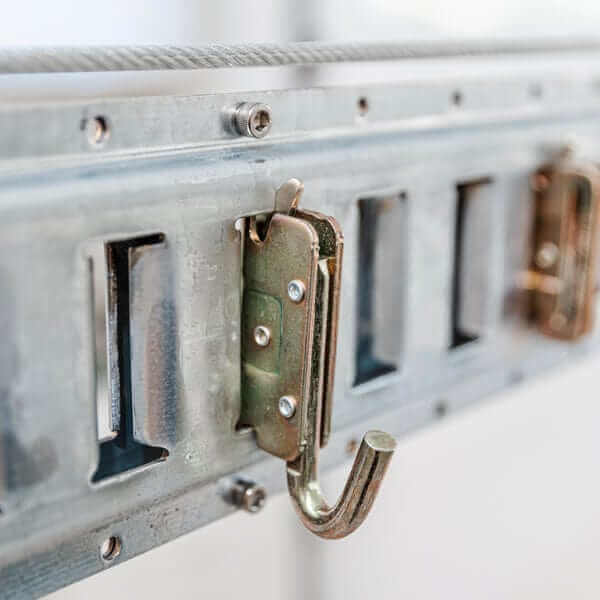

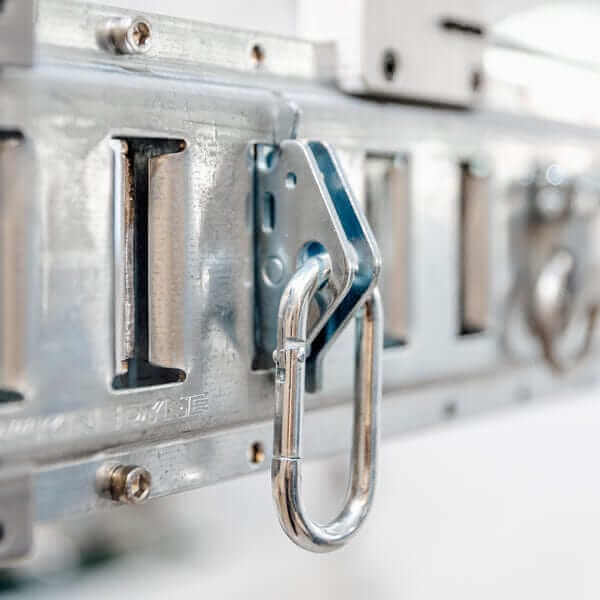

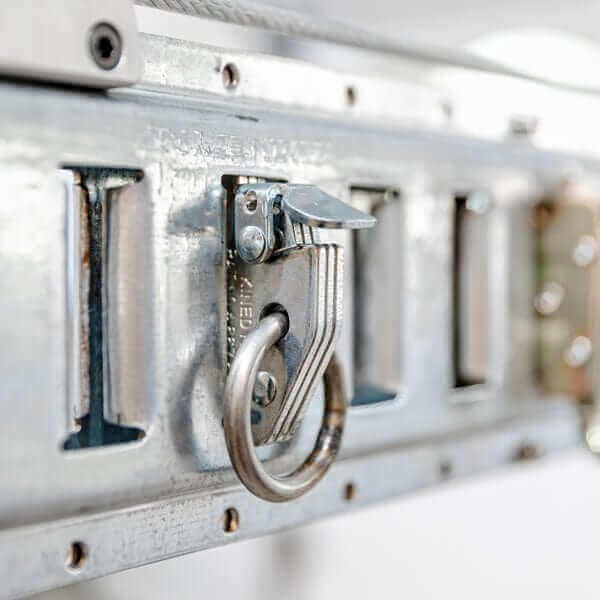

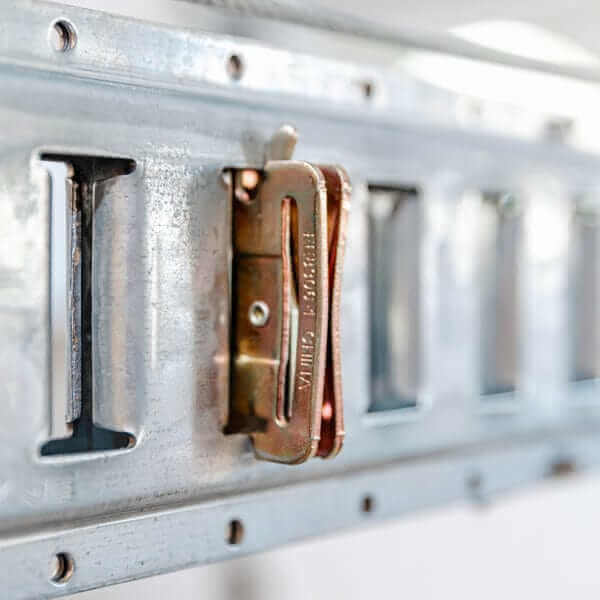

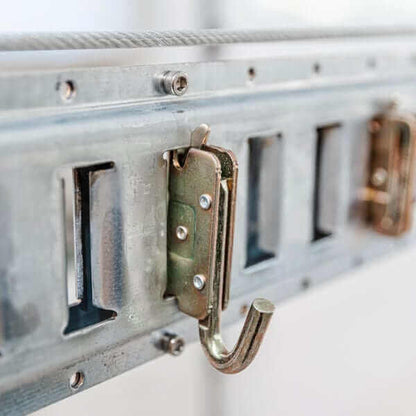

- Quick-Change Attachments: Rigs swap in seconds - carabiners, rings, web guides
- 2-year warranty
- 60 Days Money Back Guarantee
What’s Included:
- Auxx-One Lifter with 400lbs Lifting Capacity
- Lifter Controller with Programmable Stopping Points

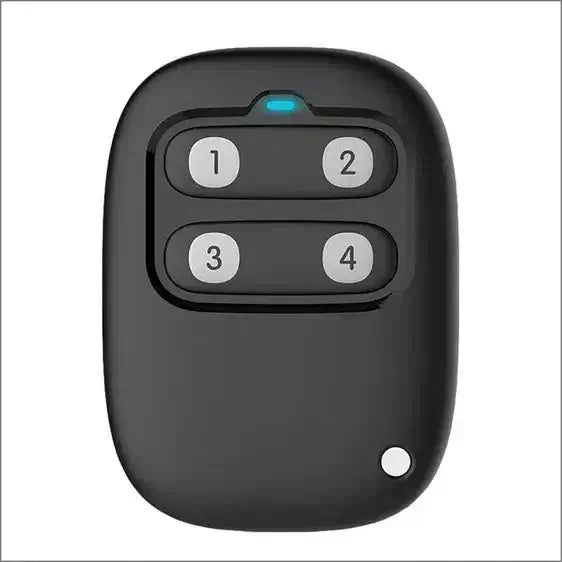

- Wireless Remote Control
- 2 C-Strut Channels

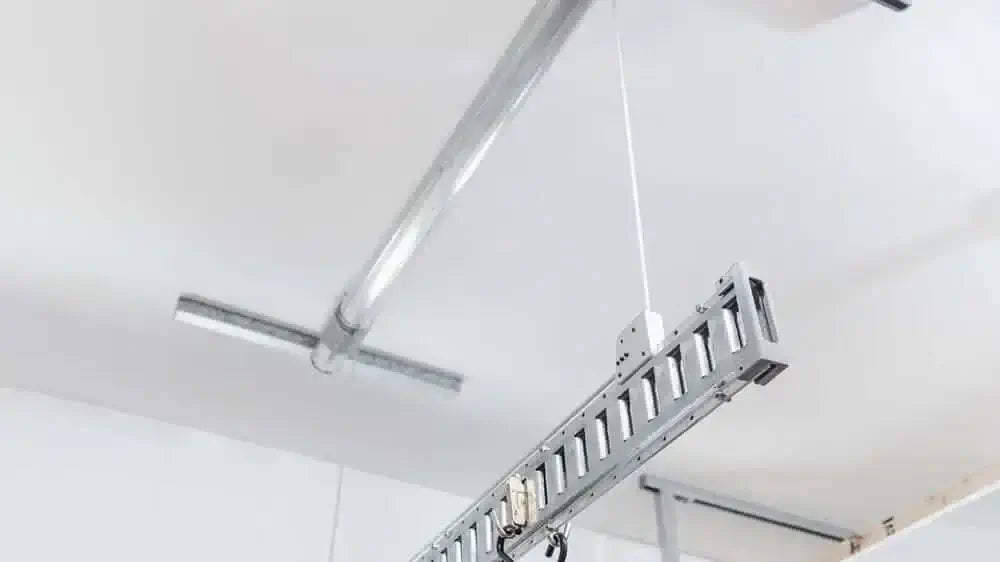

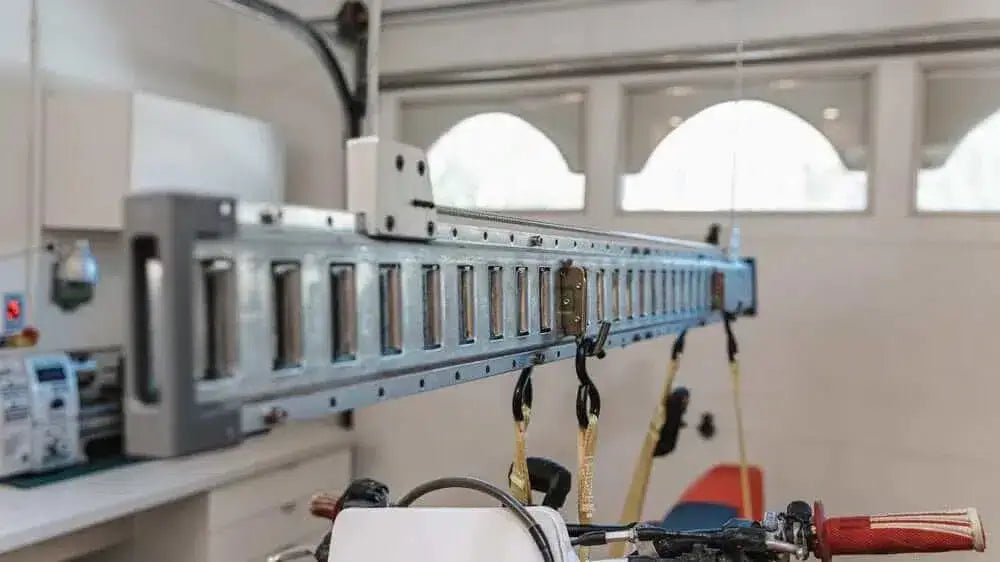

- Multipurpose E-Beam Lifting Frame
- Mounting Hardware
Specifications
General specs
- Model: Auxx-One 1400
- Lifting Capacity: Up to 400 lbs
- Max. Travel Distance: 22 ft maximum with extension

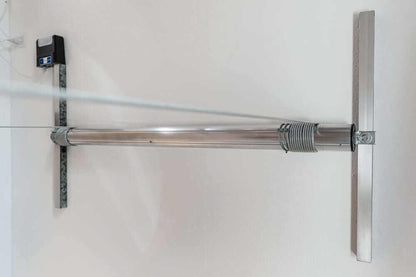

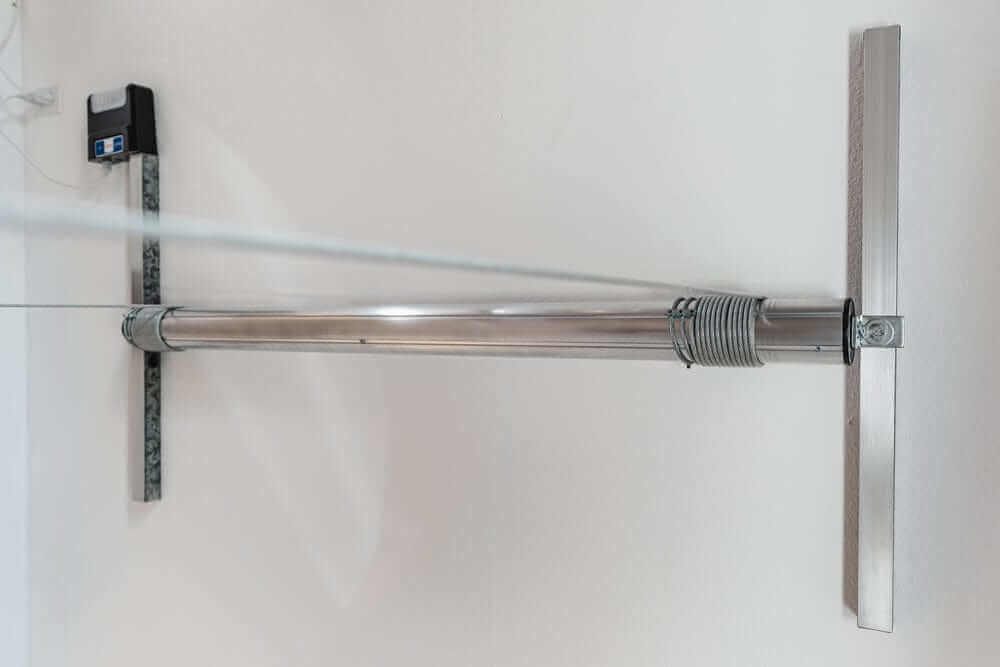

Ceiling Support
- Type: (2) 1 5/8" x 30" strut channels
- Fasteners: (6) 5/16" x 4" SPAX© Lag Bolts
- Cable: 3/16” Vinyl-coated Steel 7x19
- Cable Strength: 4,200 lbs ultimate tensile strength
Operating Requirements
- Switch Voltage: 110V / 120V
- Transmitter: 433.92 MHz
- Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
- Min. circuit size: 15 amp
Motor
- Type: IP44 (T-Motor)
- Rated Power: 680 W
- Rated Current: 6.0 A
- Voltage / Phase: 100-120V AC / Single
- Duty Cycle @ Max. Capacity: 3 min on, 15 min off. If you run the Auxx-One continuously for more than 3 min at a time, the motors will switch off automatically and require to cool down for 15 min or less.

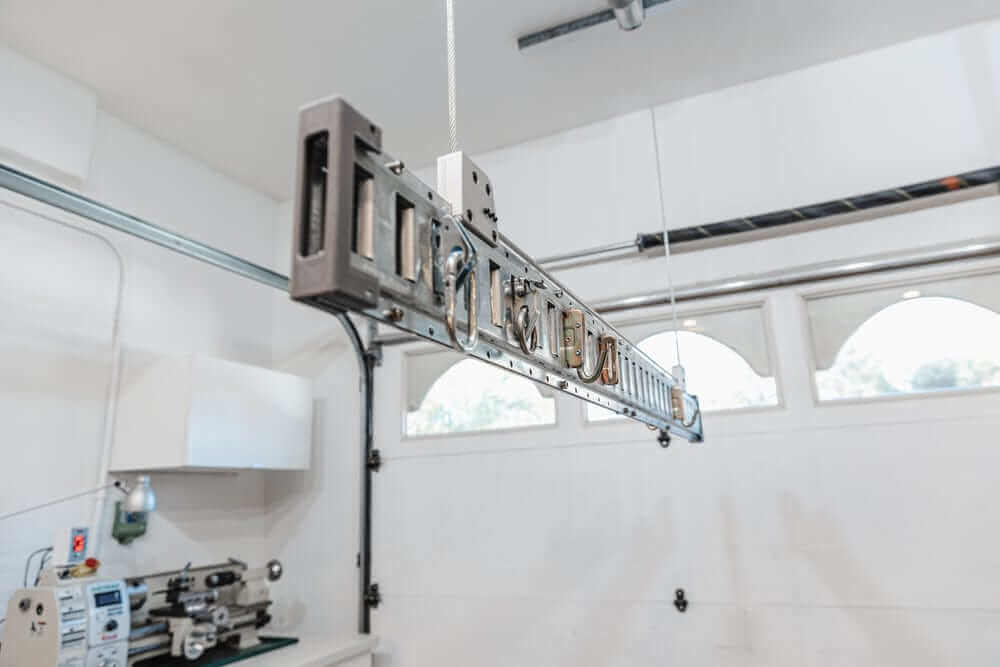

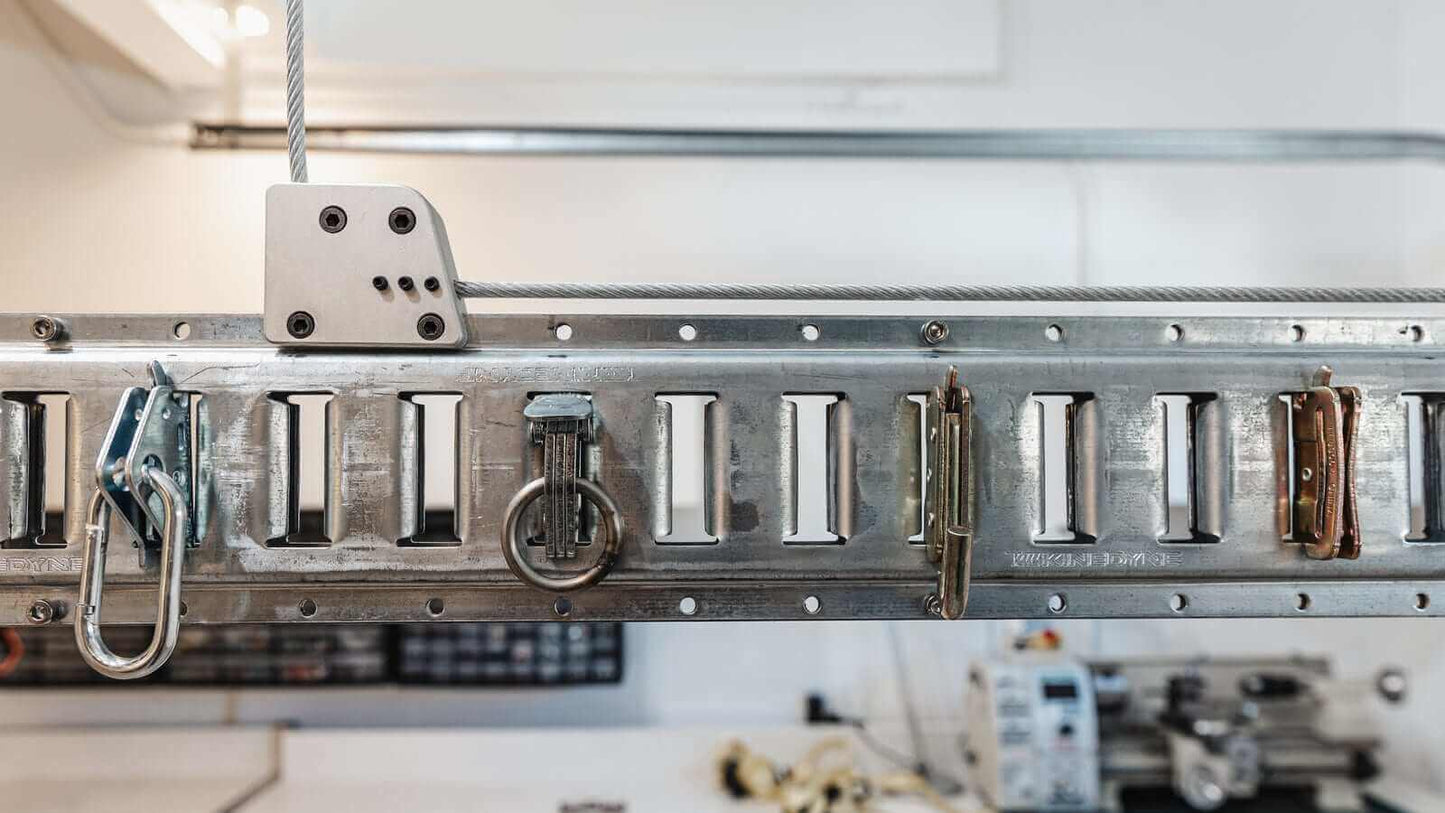

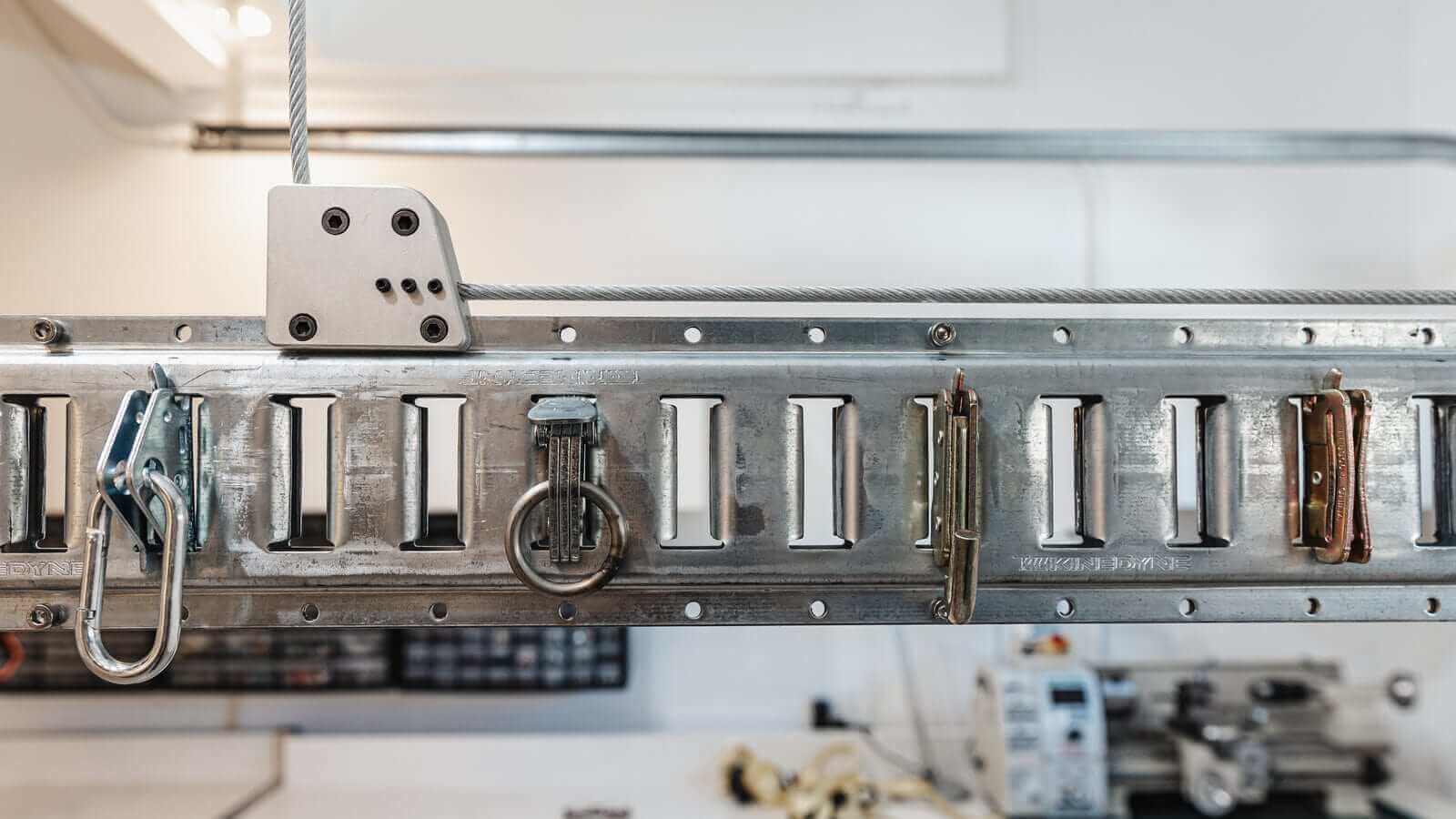

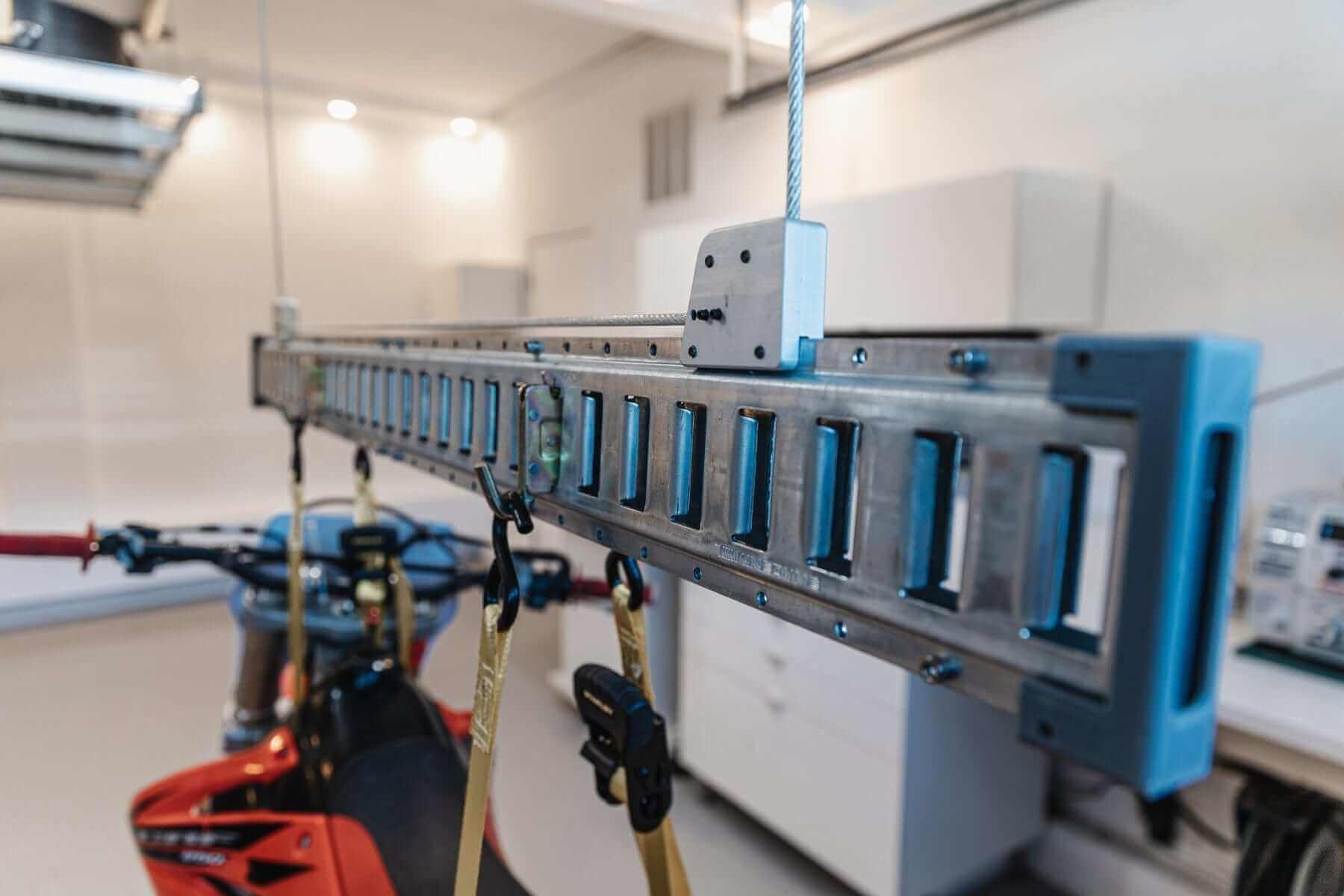

E-Beam Lifting Frame
- Height: 5 inches
- Length: 5 ft
- Material: Galvanized Steel
- Slot Spacing: 2 in on center
- Color: Silver
- Corrosion resistant
- See dimension illustration below:
Installation
This product is designed for DIY installation.
