BendPak HD-7P | 4 Post Car Lift Narrow

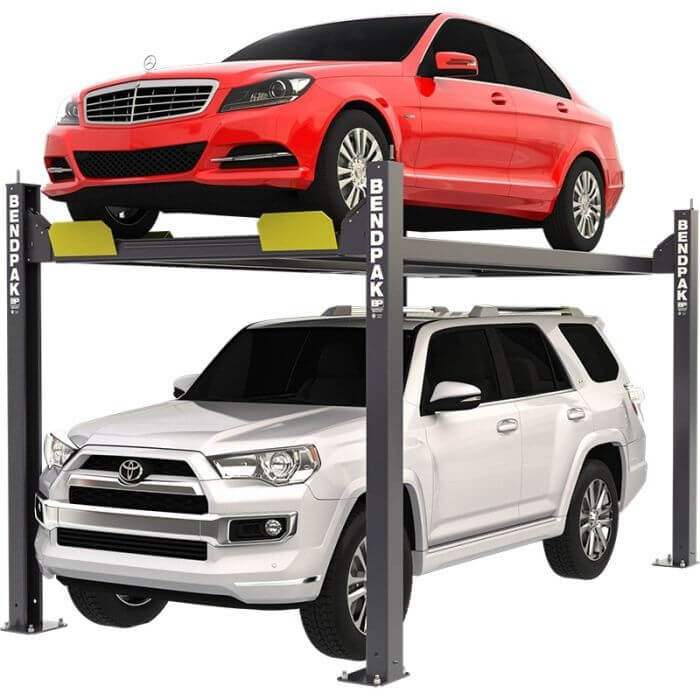

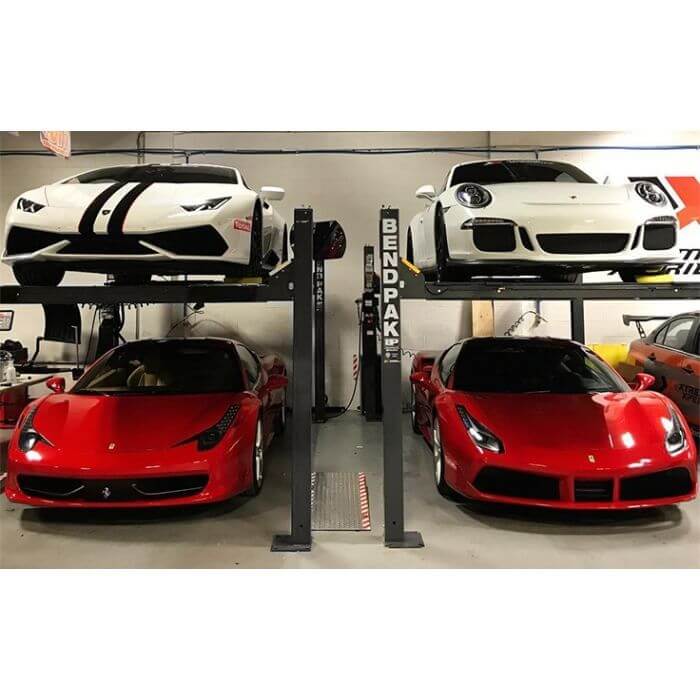

A Versatile and Compact 7,000-lb. Parking Lift

A parking lift is one of the best ways to save space. Home owners love the extra room their lifts offer, and commercial parking garages know that enough parking lifts can effectively double their garage space and their bottom lines. The only way to add parking spaces, other than a car lift, is to expand the physical boundaries of your property (e.g., in-ground lifts). Our lifts are made to outlast whatever vehicle(s) you stow on them. They require very little maintenance over their entire lifespans, and they look sleek and attractive in any setting. This is an important consideration for professionals who know customers make value judgments based off appearances: organized, efficient parking is a no-brainer. Homeowners will enjoy the sophisticated look too. The HD-7 parking lift components are all internally routed for both safety and improved aesthetics.

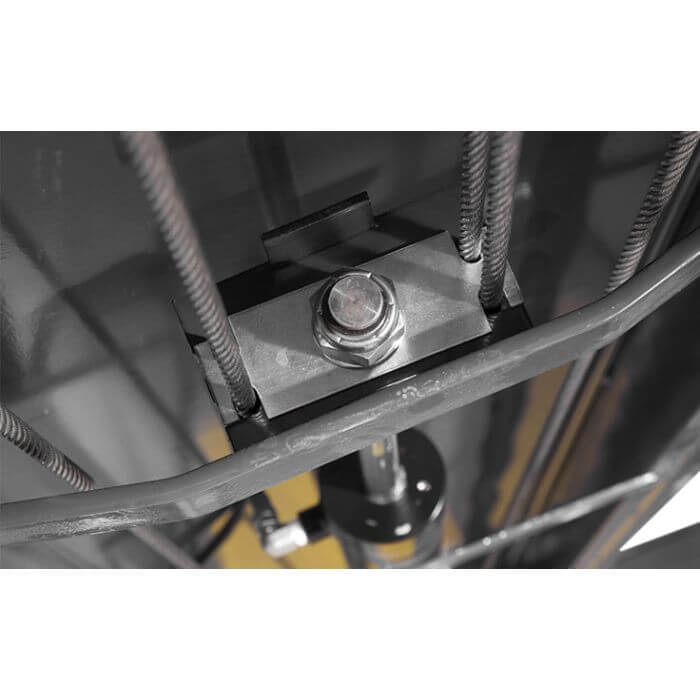

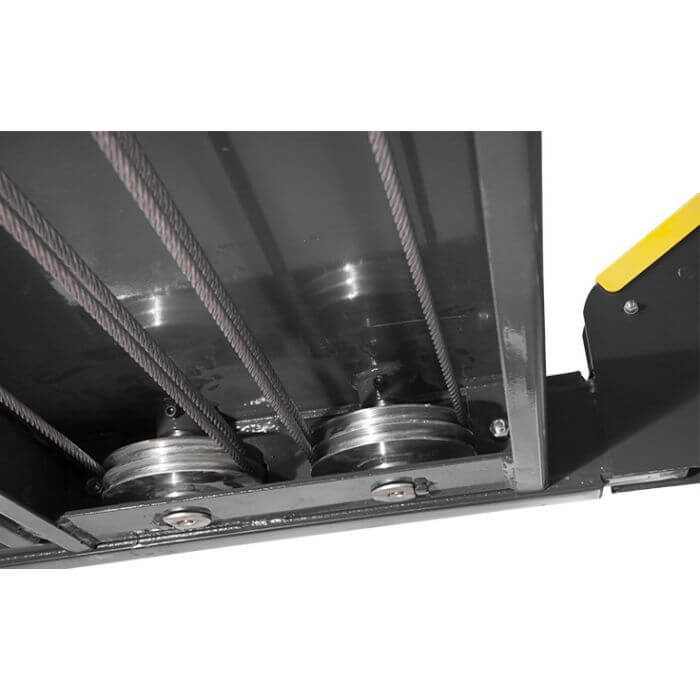

Dual-hub cable sheaves
By doubling the cable-run surface area on our cable sheaves, we’ve created a safer, longer-lasting product for your shop or garage. The extra engineering involved comes at our own expense, but we never believed at doing things on the cheap.

Multi-level locking positions
Four safety locks securely and automatically engage at multiple lock levels as the parking lift rises, and a pneumatic safety release disengages the locks simultaneously when the structure descends.

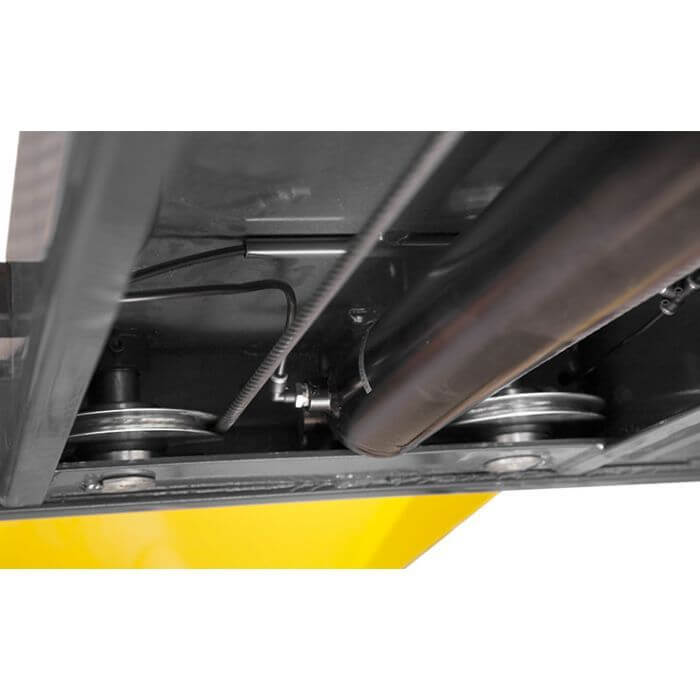

Heavy-duty aircraft cable
Make no mistake, with cables collectively rated over 822% of the overall lift capacity of this parking lift, you’re always getting the best, in quality and attentive design features. Over-engineering is our M.O. In fact, each aircraft-quality stainless steel cable is rated for 14,400 lbs. and is fully enclosed in the car lift columns.

Electric-hydraulic power system
Easy-to-reach controls are standard for BendPak’s integrated electric-hydraulic power systems. They require zero maintenance on the user end.

Large base plates
10" x 12" base plates provide your parking lift with a strong, stable foundation.

Caster kit
Optional 4-piece caster kit can be fitted for use with or without a vehicle on the structure, offering maximum versatility wherever you operate your car lift.

Integrated design
Lifting cables, airlines, safety latches and sheaves are all contained within the parking lift columns. This keeps them safe from weather, chemicals and other accidents. It also makes for a cleaner look. Plus, parking lifts that are placed side-by-side will never run the risk of rubbing cables and/or damaging crucial lift components. Loose clothing won’t get tangled in any moving parts.

Low-deck runways
Our low, 4-1/2" runways easily accommodate low-bodied sport and race cars, as well as every vehicle you can name that weighs less than 7,000 lbs.

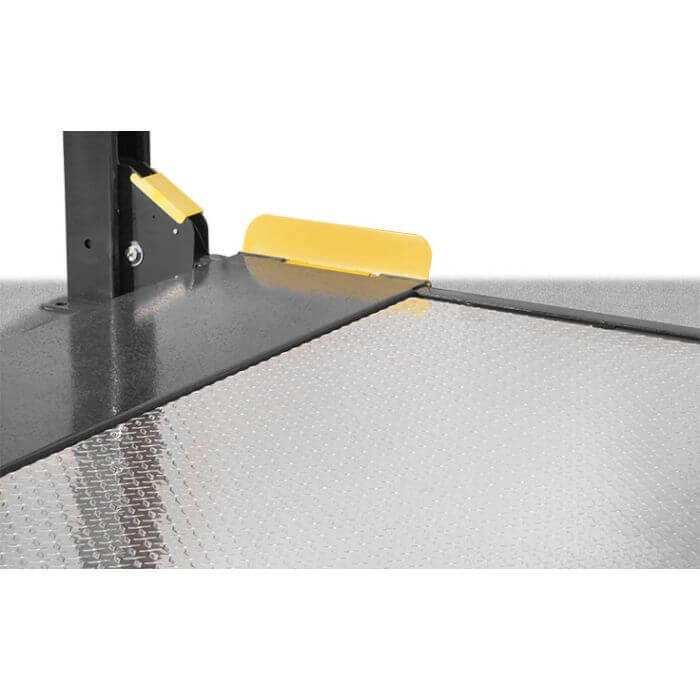

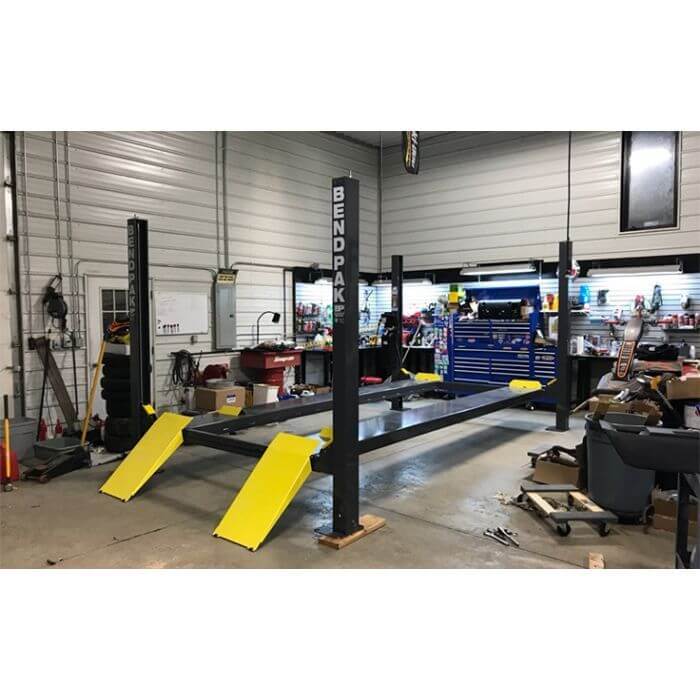

Longer approach ramps
A longer approach ramp eliminates undercarriage damage and increases the range of vehicles this car lift can handle.

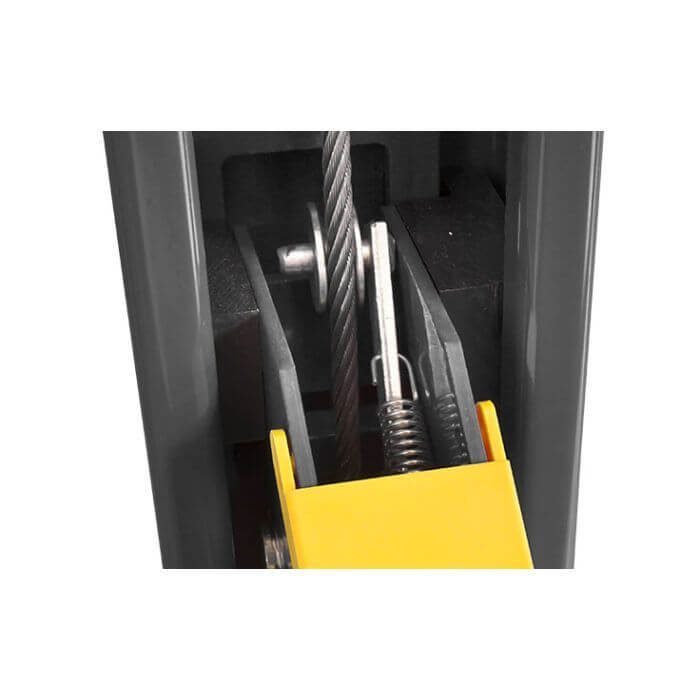

Automatic safety locks
Aircraft-quality stainless steel and aluminum pneumatic cylinders release all four locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device that engages in the unlikely event of cable failure.

Secondary slack-cable locks
Four safety locks release with the push of a button and safely allow your vehicle to descend. Each descent is even and controlled, and if you need to raise the car lift mid-descent, the safety locks will automatically engage again as the lift rises. A secondary slack-cable device engages if cable slack is detected at any point during lift operation. This critical safety piece is a guarantee that every possible step is taken by our team to make the HD-7 the safest parking lift possible.

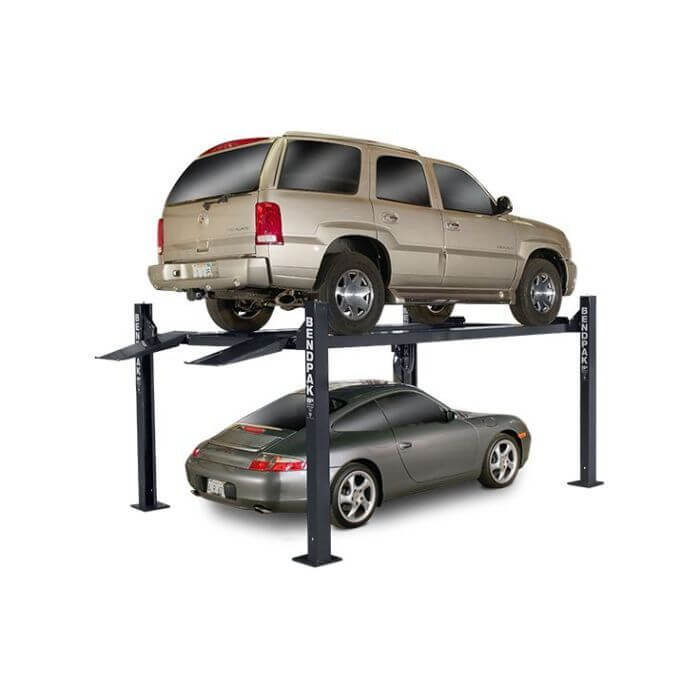

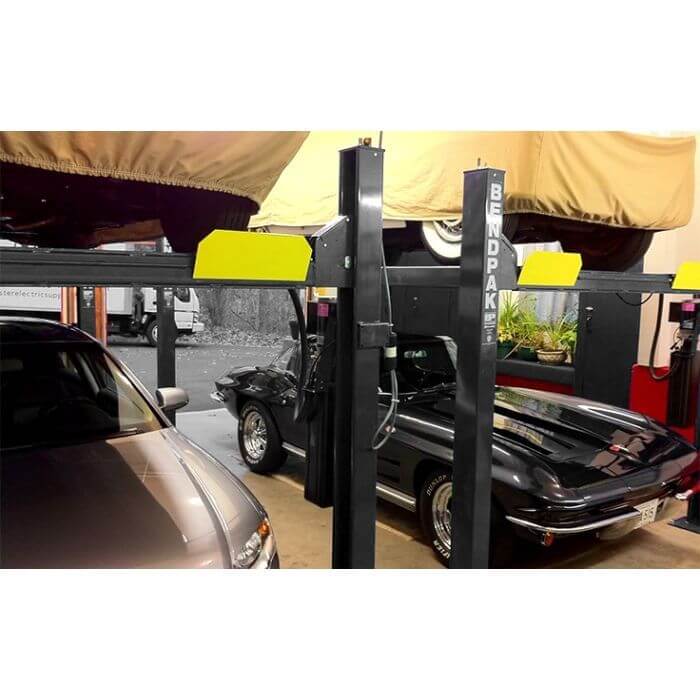

Choose wide or narrow
Wide and narrow options ensure maximum versatility for your garage space. The four-post lift is equally serviceable indoors and out, and multiple units (you can even mix and match types) stack side-by-side to increase your parking capacity without demanding much floor space.

Features:

• 7,000-lb. maximum lifting capacity
• High lift with short runways
• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Internal anti-sway slider blocks in each column
• Oversized self-lubricating cable rollers
• High-speed lifting
• Features heavy-duty 3/8" aircraft cable
• Rugged 1.25" roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders
• Push-button pneumatic safety release
• Optional 4,500-lb. capacity rolling jack available (Model RJ-45)

Capacity
Lifting Capacity* - 7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle - 3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle - 3,500 lbs. (1,588 kg)

Rise
A - Min. Runway Height: 5" (127 mm)
B - Max. Rise: 82" (2,083 mm)
C - Max. Lifting Height: 85.75" (2,178 mm)
Time to Full Rise: 35 seconds

Outside Dimensions
D - Overall Width: 100.25” (2,546 mm)
E - Outside Length: 174" (4,420 mm)
F - Overall Length: 200.5" (5,093 mm)
G - Height of Columns: 100" (2,540 mm)

Inside Dimensions
H - Width Between Columns: 90.25” (2,292 mm)
I - Drive-Thru Clearance: 76.5" (1,943 mm)

Runways
J - Runway Width: 19" (483 mm)
K - Length of Runways: 158.25" (4,020 mm)
L - Width Between Runways: 34.5" (876 mm)
M - Runway Centerline: 56.5" (1,435 mm)
N - Outside Edge of Runways: 75.5" (1,918 mm)

Minimum Wheelbase
Rated Capacity:115" (2,921 mm)
75% Capacity: 100" (2,540 mm)
50% Capacity: 85" (2,159 mm)
25% Capacity: 70" (1,778 mm)

Locking
Locking Positions: 17
Lock Spacing: Every 4" (102 mm)

Power Unit
Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB

Shipping
Weight: 1,756-lbs. (796 kg)
Dimensions: 167" x 22" x 28" (4,242 mm x 558 mm x 711 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).

Manual

Concrete Slab Requirements

Click to Open and Download Concrete Slab Requirements (pdf)

BendPak strongly recommends consulting a Concrete Specialist early in your planning process for Lift installations. The recommendations presented in this document are generic in nature and cannot cover all situations. A Concrete Specialist will adjust these recommendations to account for national, state, and local building codes as well as local weather conditions, soil composition, base preparation, load bearing, seismic requirements, and any other structural concerns that may arise.

Existing concrete floors should be test drilled to verify minimum floor thickness and to confirm building drawings. A core sample should be obtained and tested to verify minimum floor compressive strength. When investigating floor properties, consult building drawings to verify proper floor reinforcement.

DO NOT install any BendPak lift on any surface other than concrete, conforming to the minimum compressive strength, aging, reinforcement, and thickness stated in the table above. ALL BENDPAK LIFTS MUST BE INSTALLED ON CONCRETE ONLY.

DO NOT install any BendPak lift on expansion seams or on cracked or defective concrete. All 3/4 inch diameter anchors must be a minimum of 6 inches away from any expansion seams, control joints or other inconsistencies in the concrete.

All anchors must be a minimum of 6" away from any expansion seams, control joints or other inconsistencies in the concrete. Refer to anchor manufacturer specifications for specific information concerning edge distances and bolt to bolt distance requirements.

NEVER install a BendPak lift on hand mixed concrete.

DO NOT install any BendPak lift on a secondary floor level or on any ground floor with a basement beneath without written authorization from the building architect and prior consultation and approval from BendPak.
