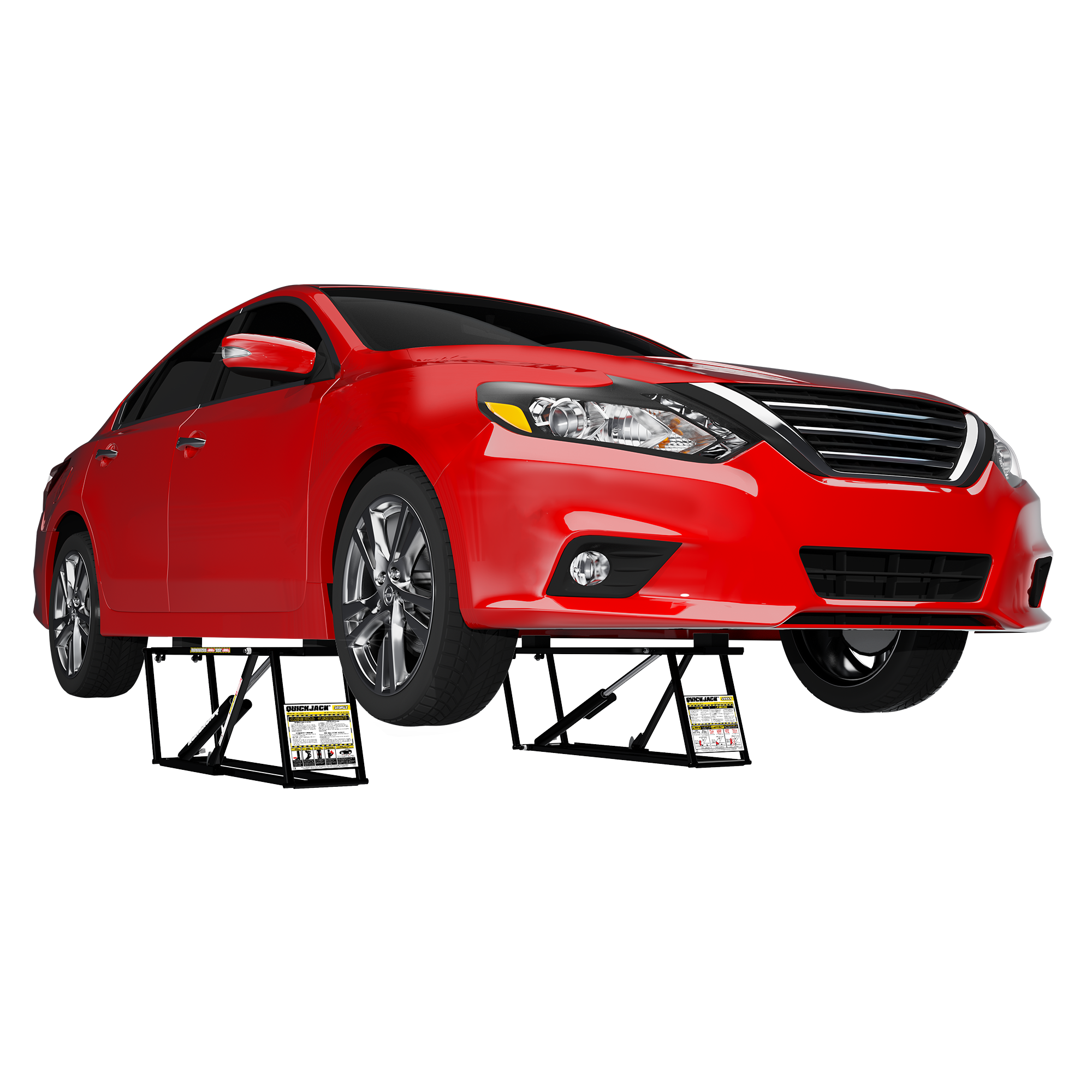

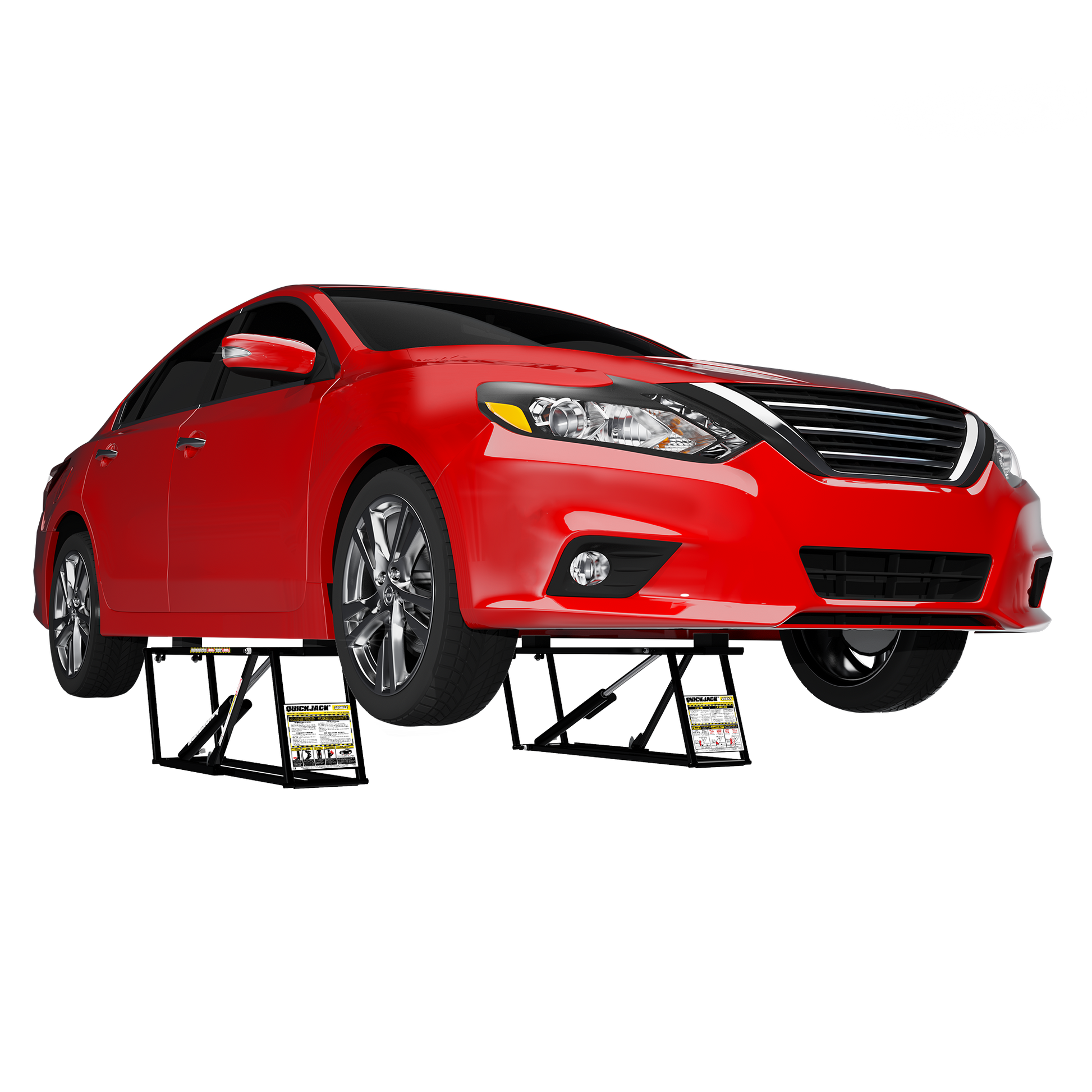

QuickJack 3500SLX Portable Car Lift 110V Standard Frame 5175010

QuickJack 3500SLX Portable Car Lift 110V Standard Frame 5175010

$1,775
Regular price
List Price:
Limited Time Bonus Offers:
✓ Free Shipping (no code needed)
✓ No Sales Tax (except TX & FL)

Quantity: 1
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
View Cart
Guaranteed Safe Checkout

Perfect for the track

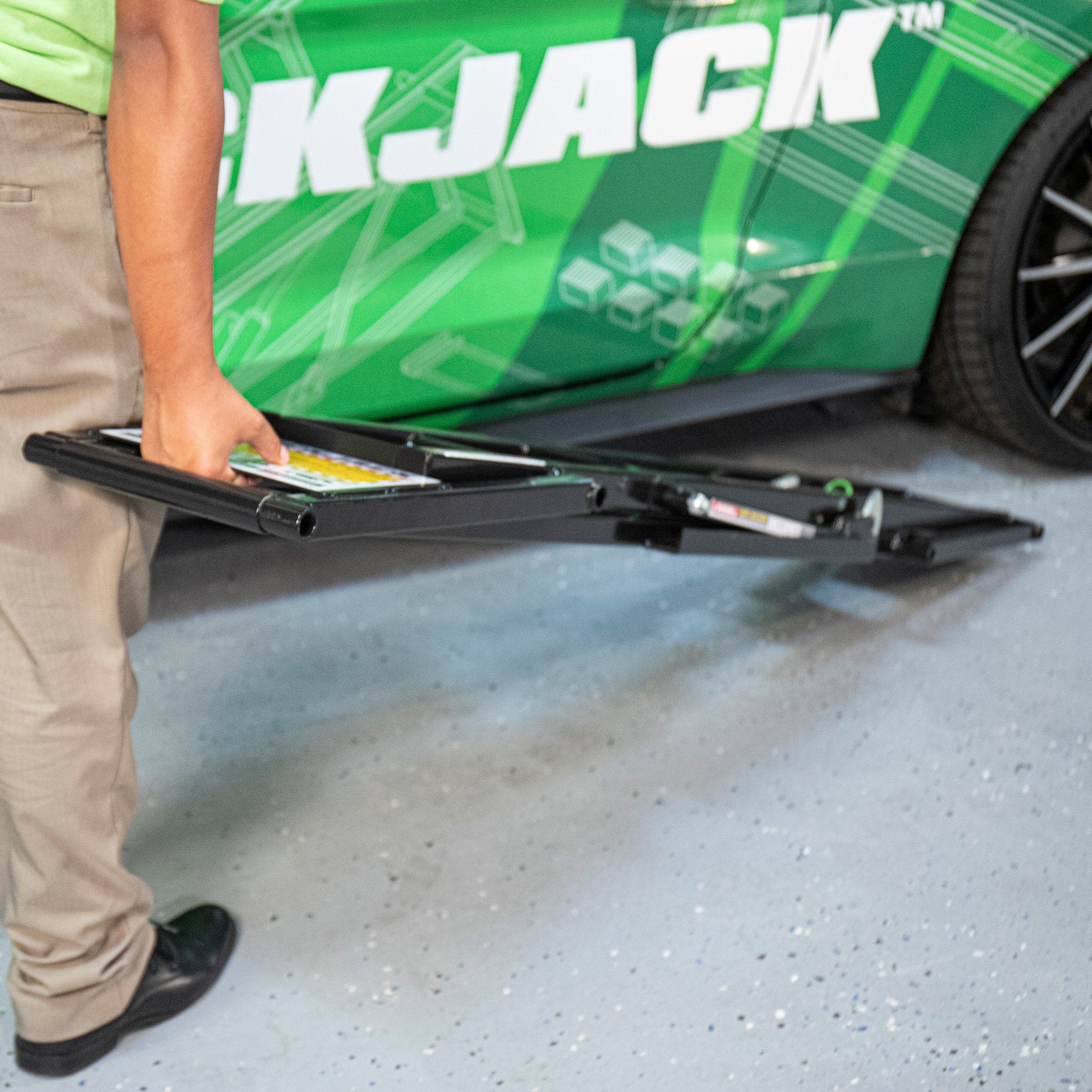

Convert your garage lift to a portable car lift just by rolling it to the trunk of your car and hauling it to the track. 12V DC power option makes this the world's first-ever true track lift. If you don't have a professional pit crew at your disposal, you'll want QuickJack by your side.Have a heavier vehicle? The 5000TL is also great for track day.

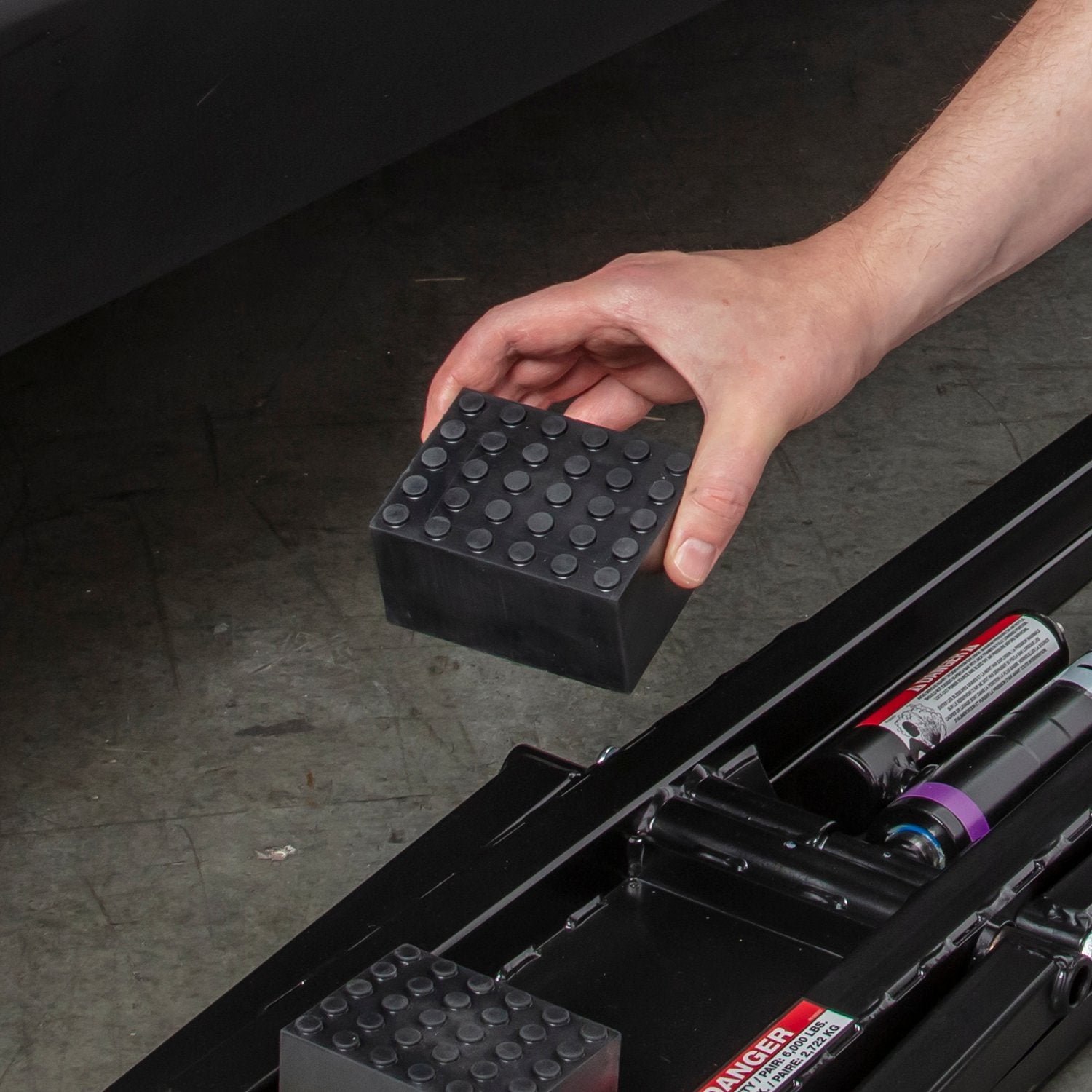

Extended block trays

We increased the size of our rubber block trays to improve access to varied lift points. Position blocks from 26.75" - 50.5" apart, satisfying most lift point spreads.

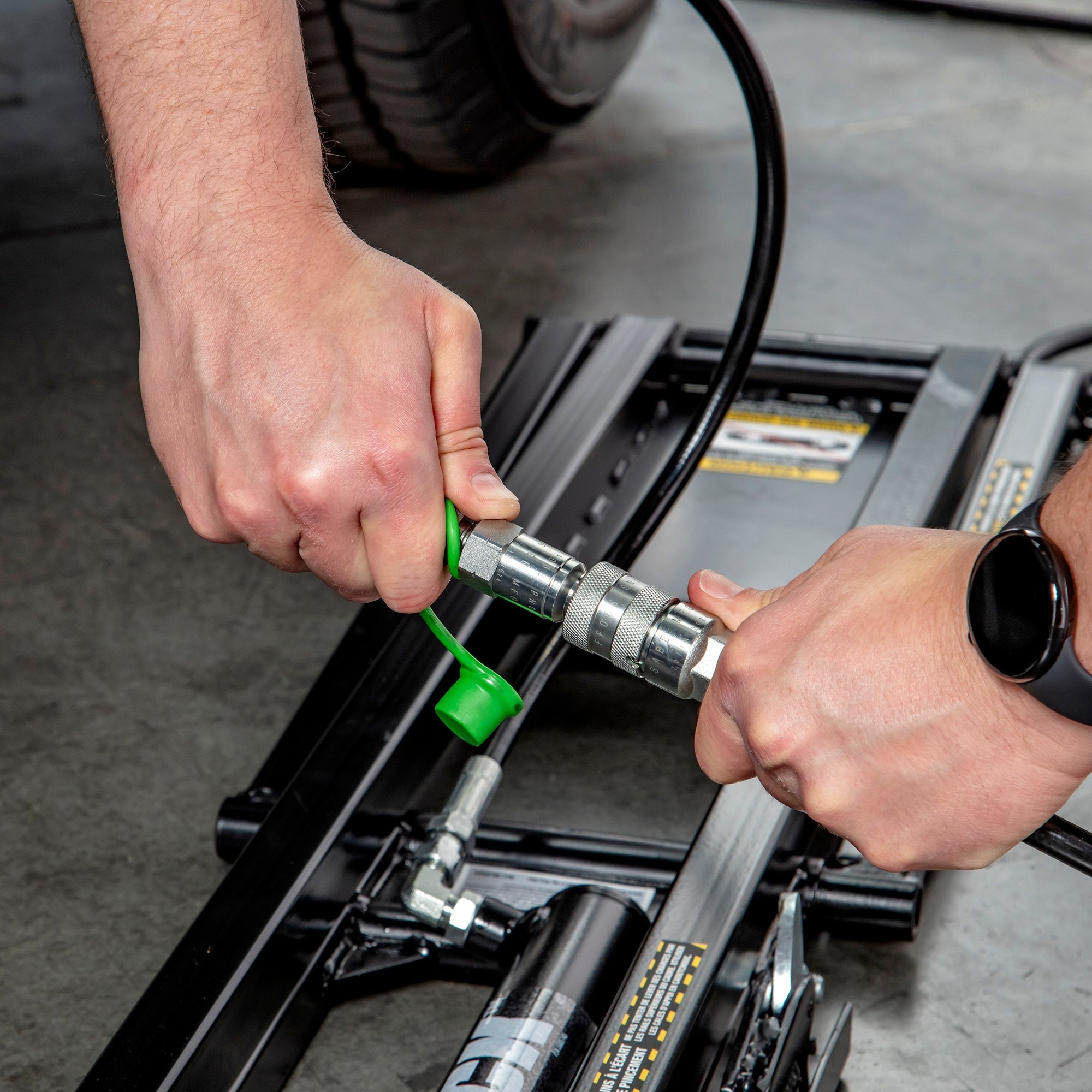

Zero-leak fittings

Our car lift components include flush-face hose fittings to ensure fluids stay in the unit and not on your garage floor. You don't want to be the one to leak all over the track, either.

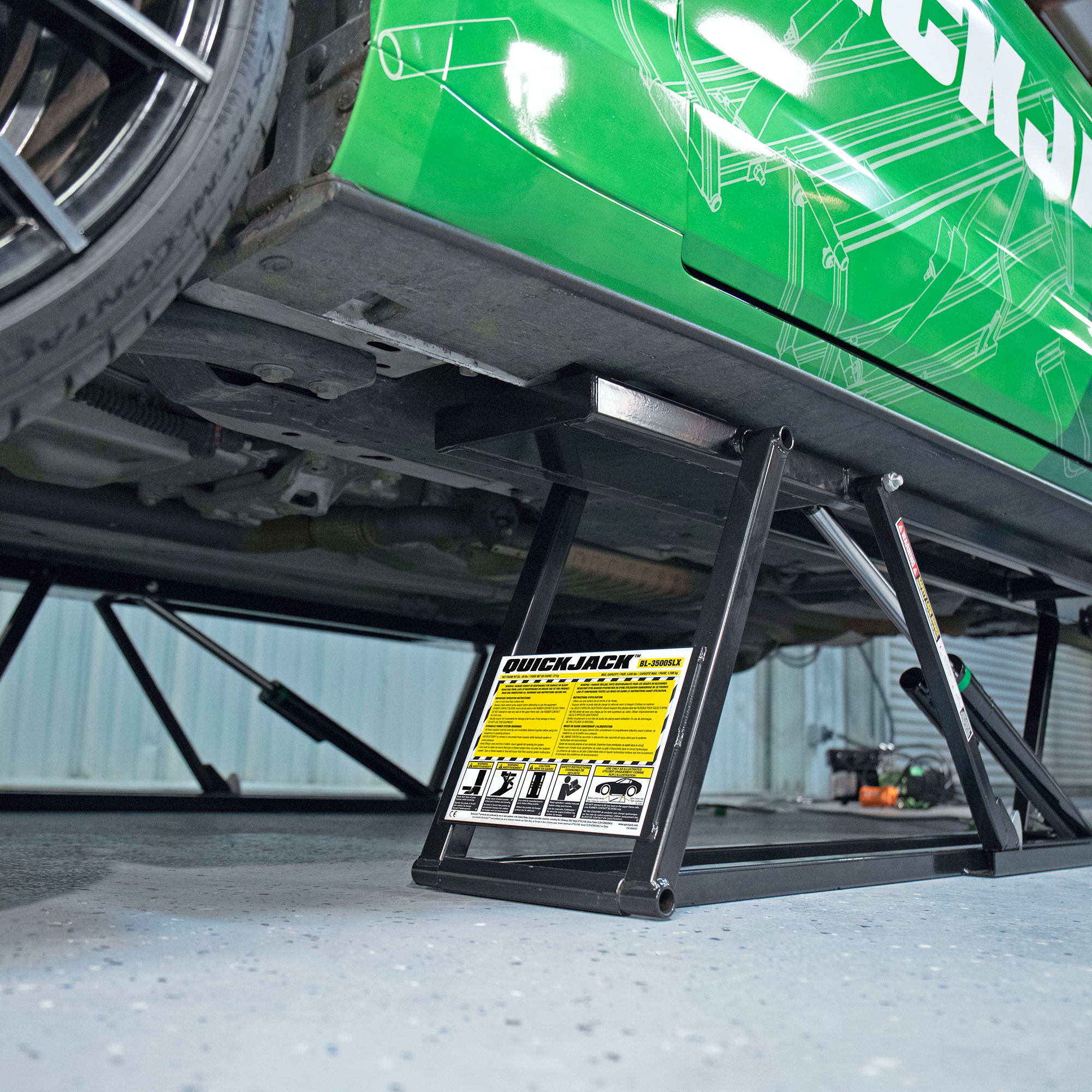

Open-center design

Don't let us get in your way! Inspired by larger frame-engaging car lifts, our open-center design gives users total access to the wheels and undercarriage.

General

Material: Steel

Assembly Required: true

Portable: true

Assembled Weight Lbs: 66

Dimensions

Height Overall Inches Rounded: 16.25

Individual Frame Weight Pounds: 66

Overall Width Max Inches Rounded: 10.5

Lifting Dimensions

Lifting Height With 2 inch block Inches Rounded: 17

Lifting Height With 3 inch block Inches Rounded: 17.75

Lifting Height Stacked blocks Inches Rounded: 20

Maximum Lift Point Spread Inches Rounded: 50.5

Minimum Lift Point Spread Inches Rounded: 27

Lifting Capacity

Lifting Capacity Pounds: 3500

Rise

Time to Full Rise sec: 26

Locking Dimensions

Locking Position Qty: 2

Runway Dimensions

Width Between Runways Narrow/Standard Configuration Inches Rounded: 23.88

Power

Horse power: 1

Voltage: 110V 50/60HZ

Amps: 10

Motor: 110V, 50/60Hz, 1PH

Noise dB: 70

Watts: 1100

Motor RPM: 3450

Clearance Dimensions

Lowered Height Frame Only Inches Rounded: 2.38

Lowered Height With 2 inch block Inches Rounded: 3.38

  • Open-center design
  • Extended block trays
  • Zero-leak fittings

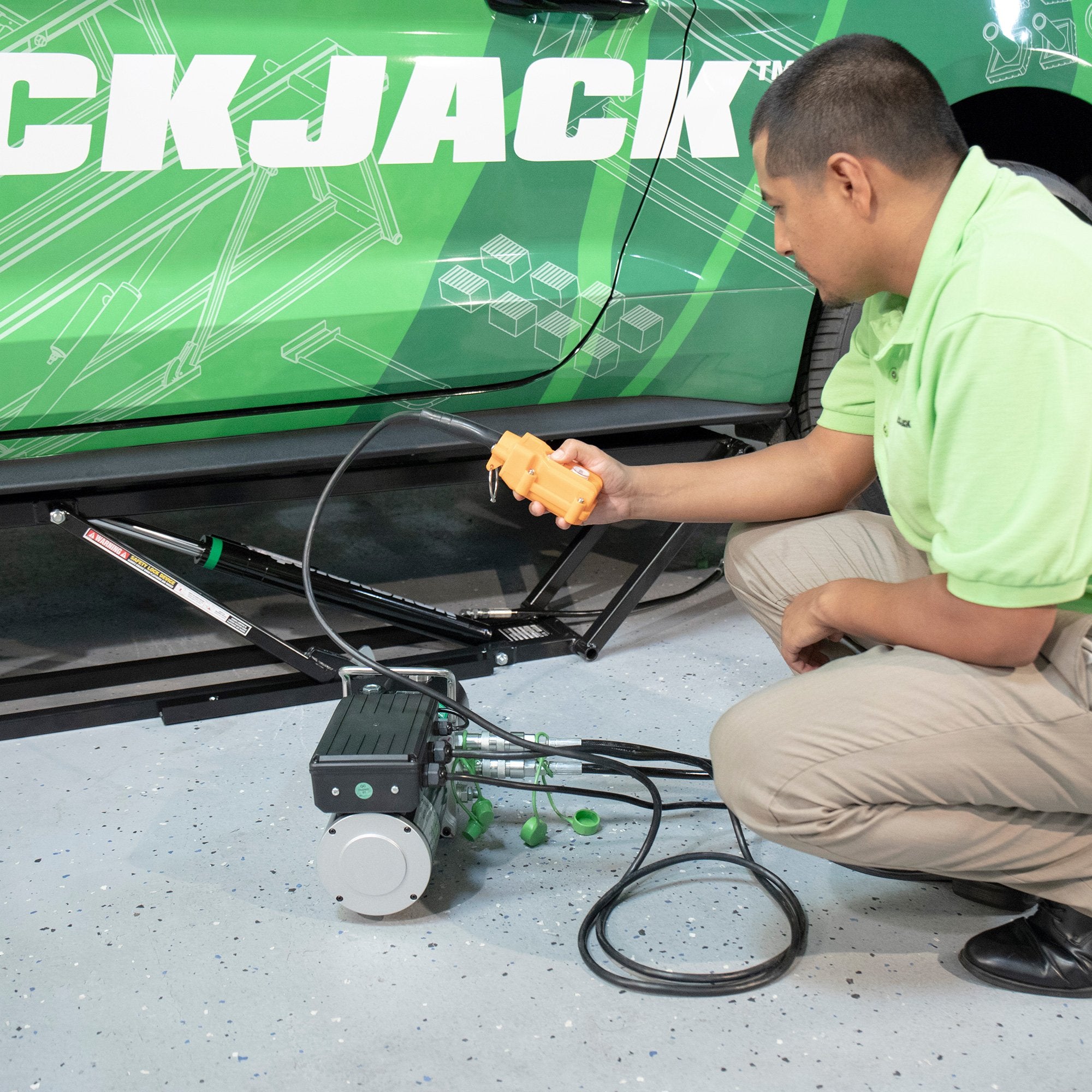

  • 1 Set of 3500SLX-110V 1 Power unit

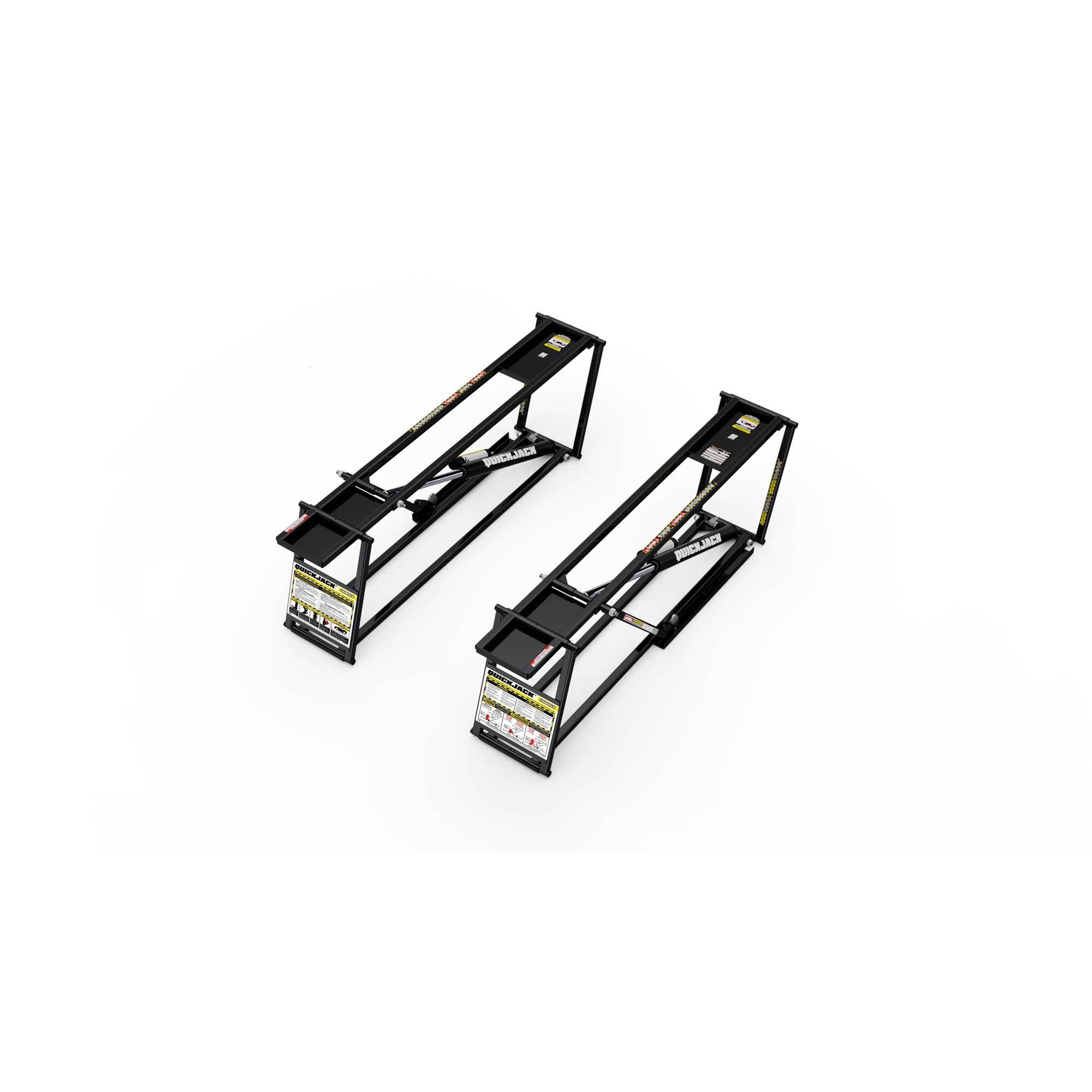

  • Left and Right Frame Assembly
  • 2x Short Hydraulic Hose
  • 2x Frame-positioning Handle
  • 4x Medium Rubber Lift Blocks
  • 4x Tall Rubber Lift Blocks
  • 2x Long Hydraulic Hoses
