QuickJack 5000TL | Portable Car Lift 5000 lb capacity


Regular price
Price: $1,775.00
Regular price
List Price:
Sale price
Price: $1,775.00
We pay the sales tax + Free Shipping | Ends:
View Cart

Free Shipping with Tracking

No Sales Tax (excluding TX)

Price Match Guarantee (excluding SafeRacks & Mesa Safe products)

5,000 lb. lifting capacity - Portable system - Less than 60 second setup

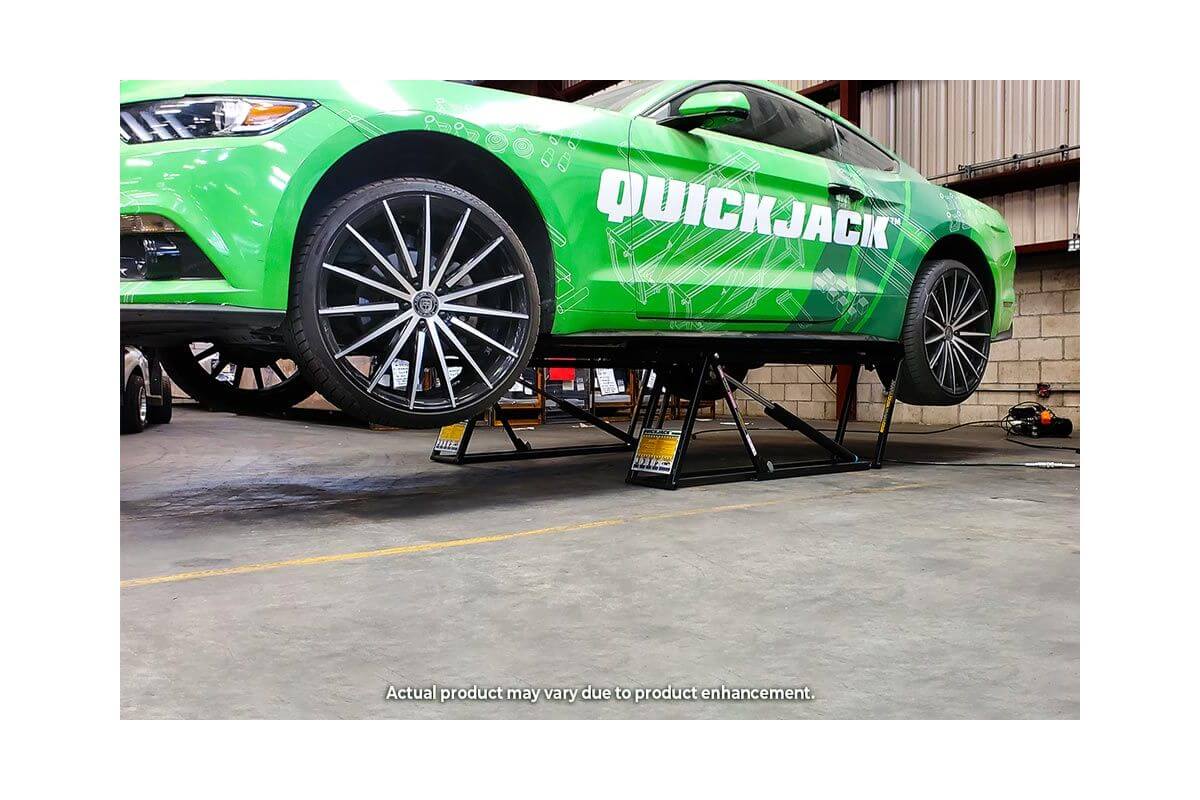

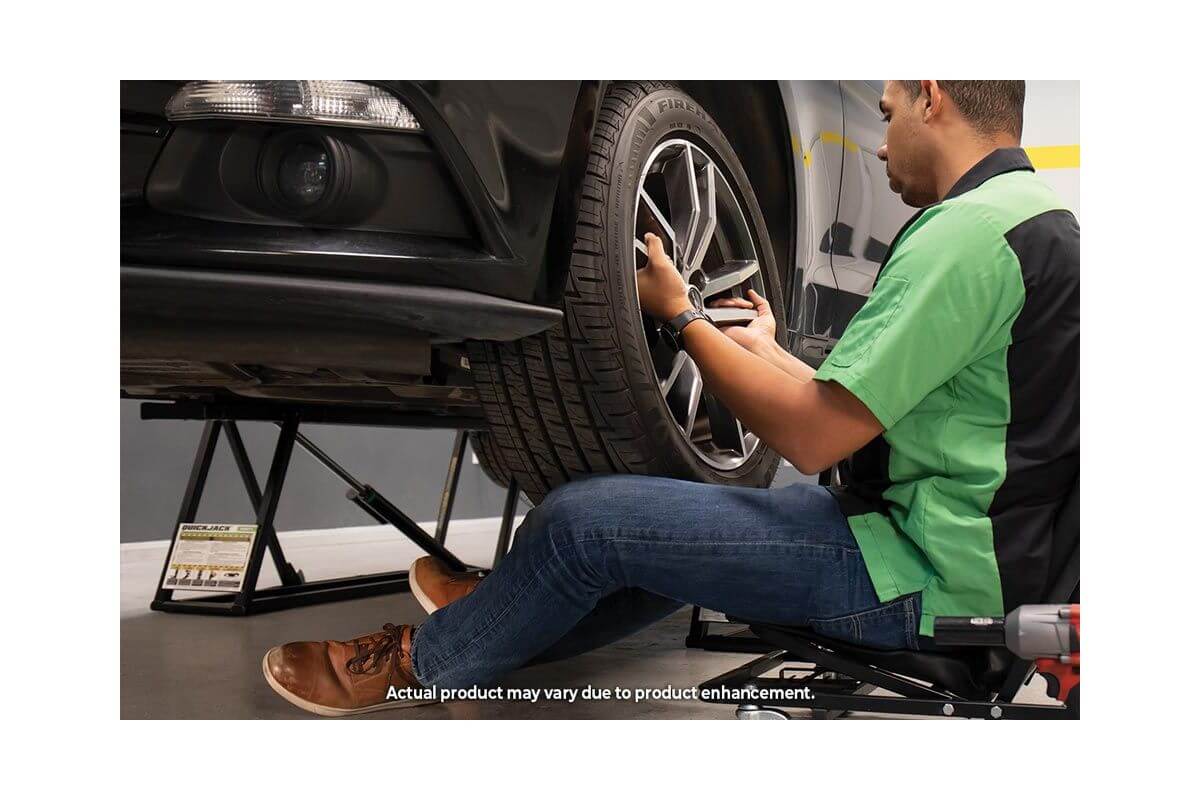

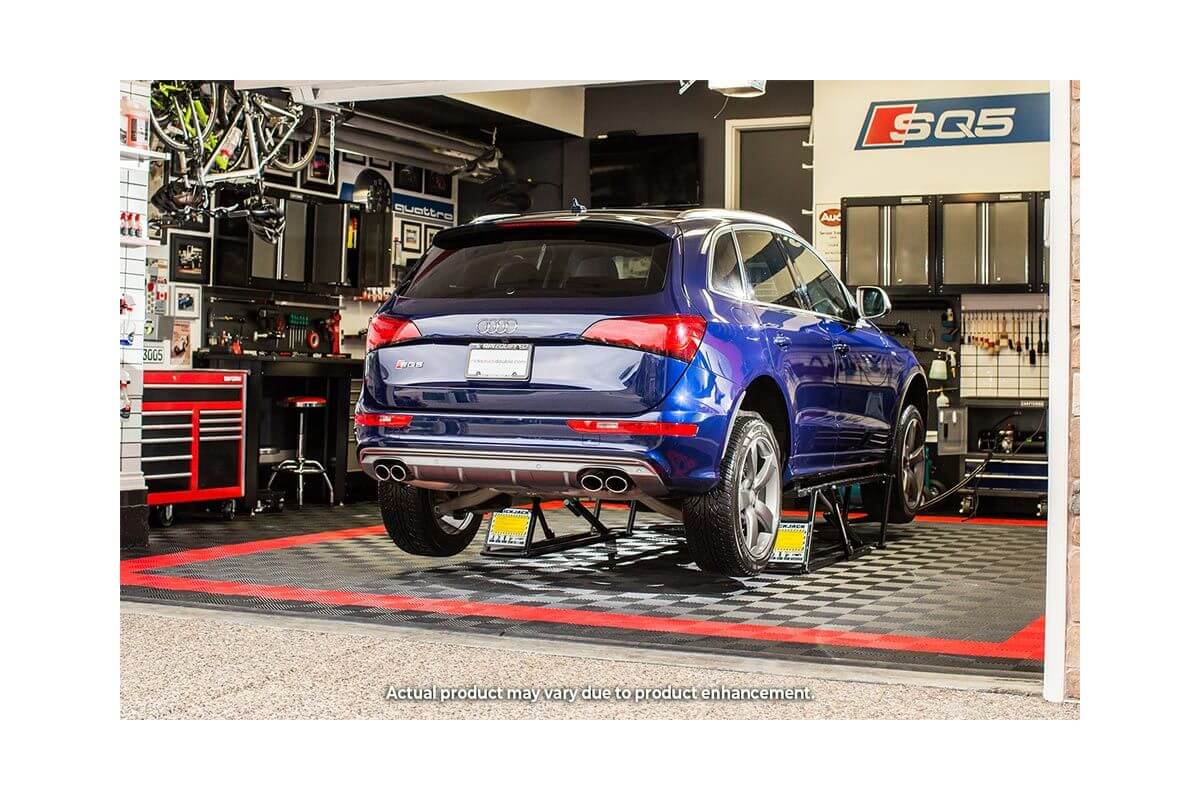

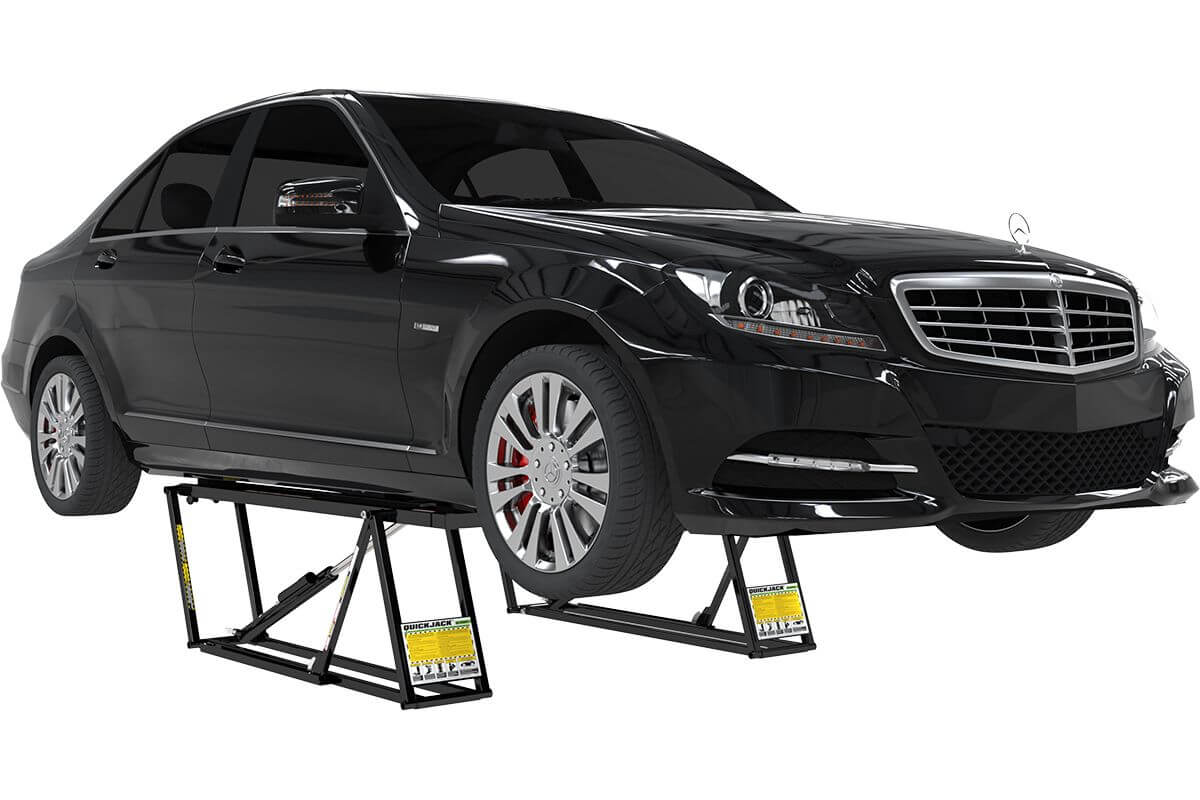

Complete your garage or workspace with this Portable Car Lift 5,000 lbs. Capacity. It can hold vehicles up to 5,000 lbs. The smart design produces 24 in. of lifting height, 3 in. lowered height, 70 in. overall length and 11 in. overall width. This lift allows you to easily perform repairs on the underside of vehicles.


  • Plugs into 110V AC wall outlet power to operate
  • Remote pendant control features a 13 ft. cord
  • Dual locking positions mid level and full rise
  • Quickjack is designed to lift an entire vehicle with both frames by engaging the OEM recommended lifting points
  • Strong 14-gauge welded steel frames

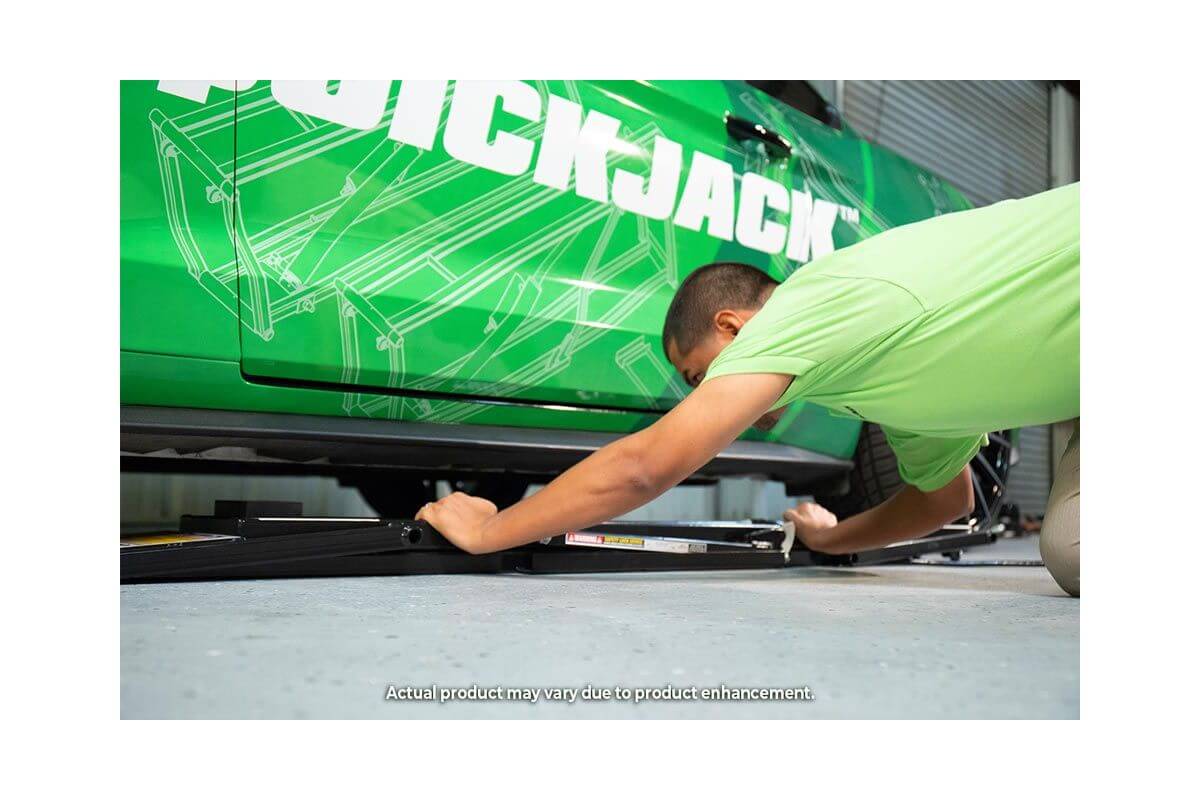

  • Low-profile jack frames fit under most race cars
  • Recommended that you always use Quickjack on a flat surface, anything greater than a 3 degrees slope is not considered safe
  • Long as Quickjack's mechanical safety locks are engaged, vehicles can be raised and stored indefinitely
  • Extended, cantilevered rubber block trays provide increased rubber block reach

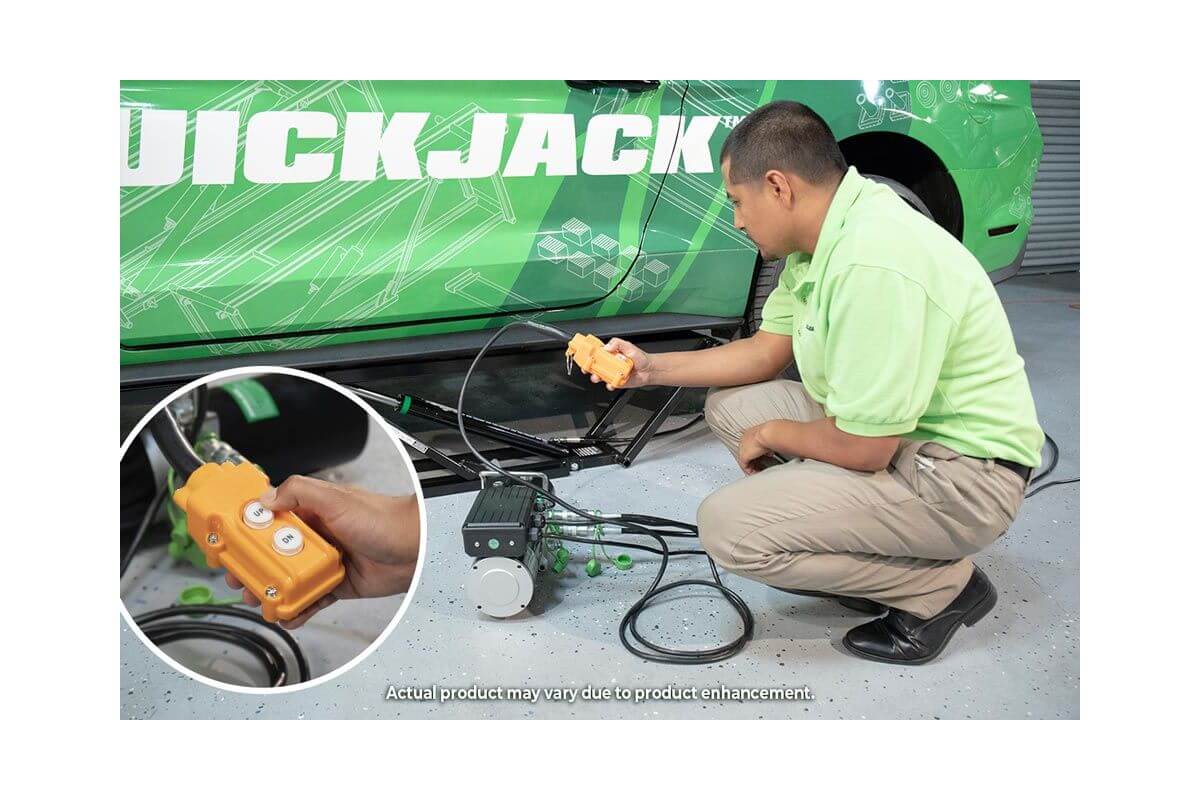

  • Portable power unit features a remote push-button control for simple operation

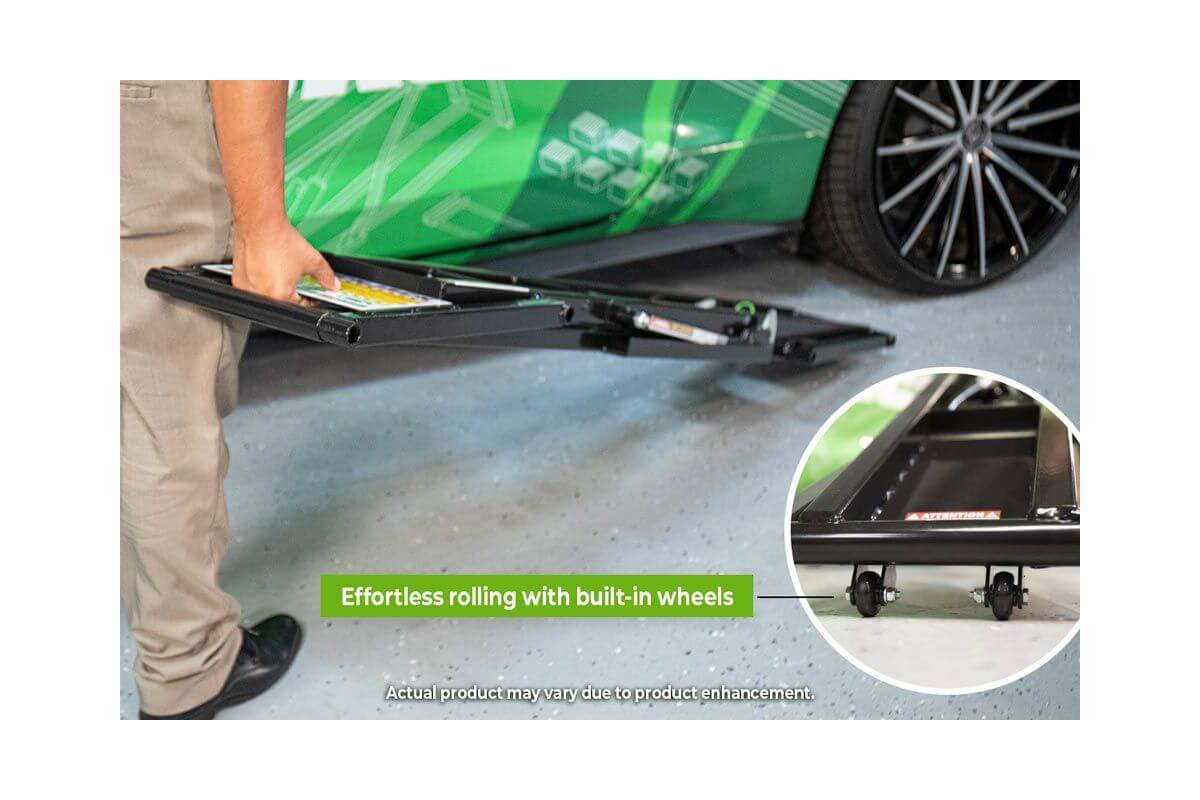

  • Steel mounted urethane wheels provide effortless rolling of jack frames on floor
  • Power unit features a built-in hydraulic flow divider for precise equalized lifting
  • Convenient handles allow for easy positioning of the jack frames
  • Integrated power-assist canisters increase the lowering speed
  • Hydraulic cylinders feature integrated velocity-fuse safety valves
  • Includes an 8-piece set of adjustable and stackable rubber lift blocks to support cars at precise locations for increased stability and safety
  • Detailed installation, maintenance and safety instructions accompany each Quickjack system

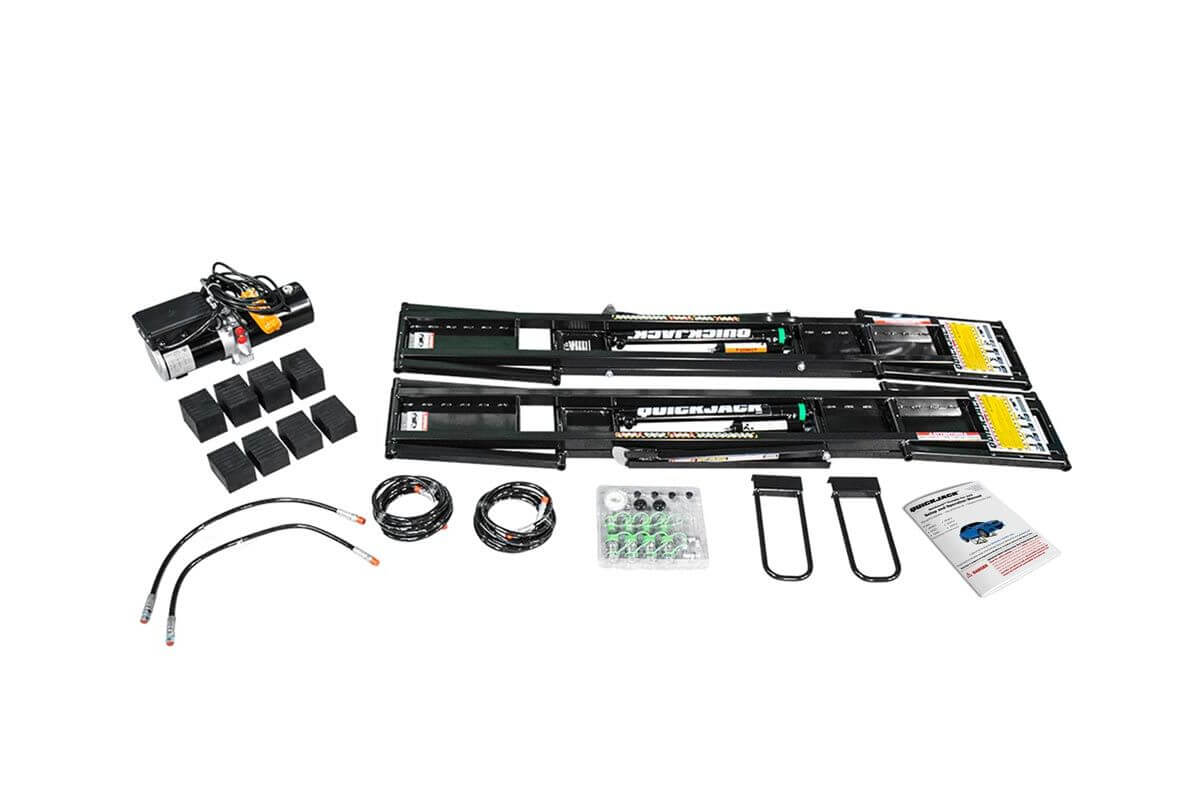

What's Included:

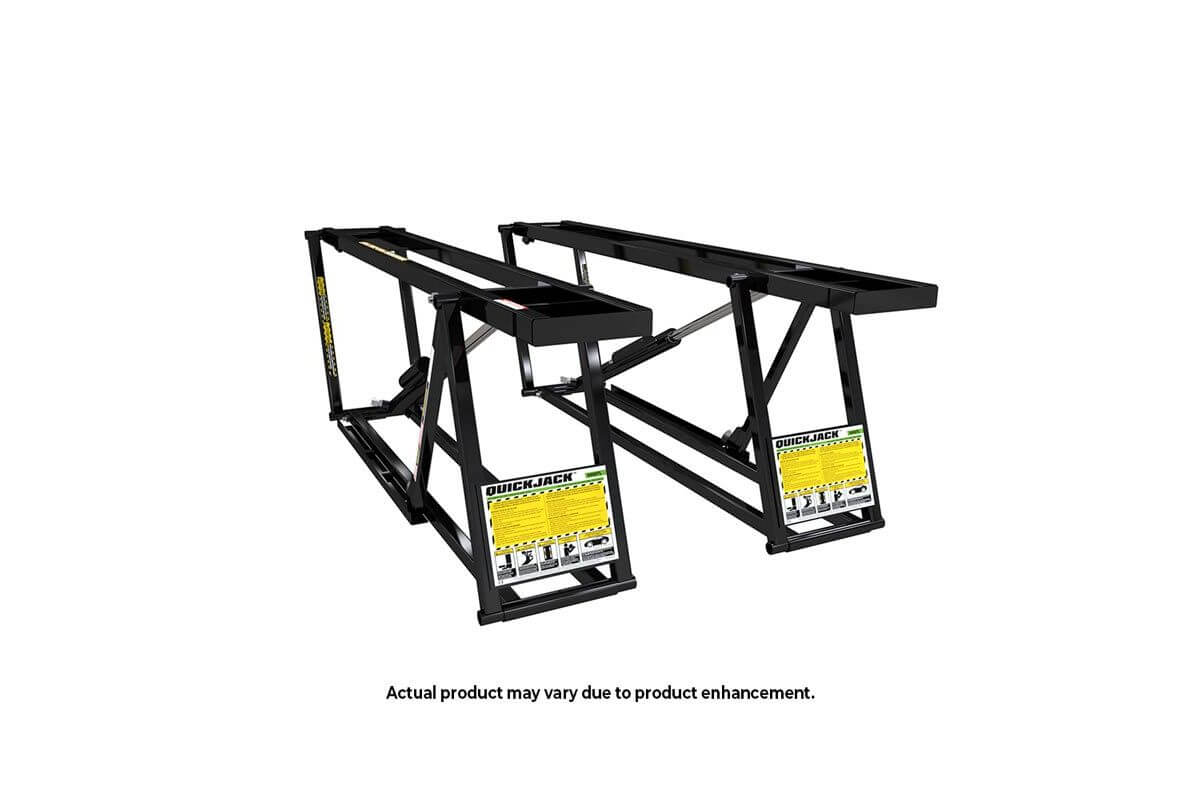

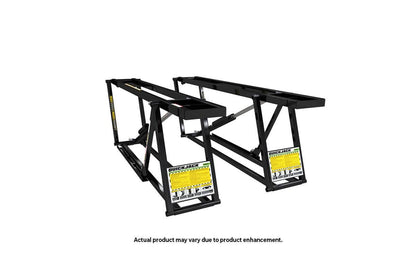

  • 5000TL Left Frame Assembly
  • 5000TL Right Frame Assembly
  • 1x Hydraulic power unit with control
  • 4x Medium rubber lift blocks (2")
  • 4x Tall rubber lift blocks (3")
  • 2x Short hydraulic hoses
  • 2x Long hydraulic hoses
  • 2x Frame-positioning handles
  • Fittings and thread tape for setup
  • Instruction manual


  • 3 liters of Automatic Transmission Fluid
  • Air source to inflate air cylinders up to 50 PSI
  • Assembly tools

Lifting capacity
5,000 lbs. (2,268 kg)

Lowered height
A - Frame only: 3" (76 mm)
B - With 2" block: 3.5" (89 mm)

Lifting height
D - With 2" block: 21" (521 mm)
E - With 3" block: 22" (546 mm)
F - Max. height: 24" (616 mm)
G - With adapters: 24" (597 mm)
H - With adapters + pin: 26.75" (673 mm)

Lift point spread
I - Maximum: 60" (1,524 mm)
J - Minimum: 37" (940 mm)

Frame dimensions (ea.)
K - Width: 11" (278 mm)
L - Length: 70" (1,778 mm)
A - Height (lowered): 3" (76 mm)
- Weight: 78 lbs. (35 kg)

Other specs
- Time to full rise: 30 seconds
- Power unit weight: 15 lbs. (7 kg)
- Shipping dimensions (ea. frame): 73.5" (L) x 15.25" (W) x 5" (H)
- Shipping weight: 240 lbs. (109 kg)
