QuickJack 5000TLX | Extended Portable Car Lift 5000 lb capacity


Regular price
Price: $1,825.00
Regular price
List Price:
Sale price
Price: $1,825.00
We pay the sales tax + Free Shipping | Ends:
View Cart

Free Shipping with Tracking

No Sales Tax (excluding TX)

Price Match Guarantee (excluding SafeRacks & Mesa Safe products)

5,000 lb. lifting capacity - Portable system - Less than 60 second setup

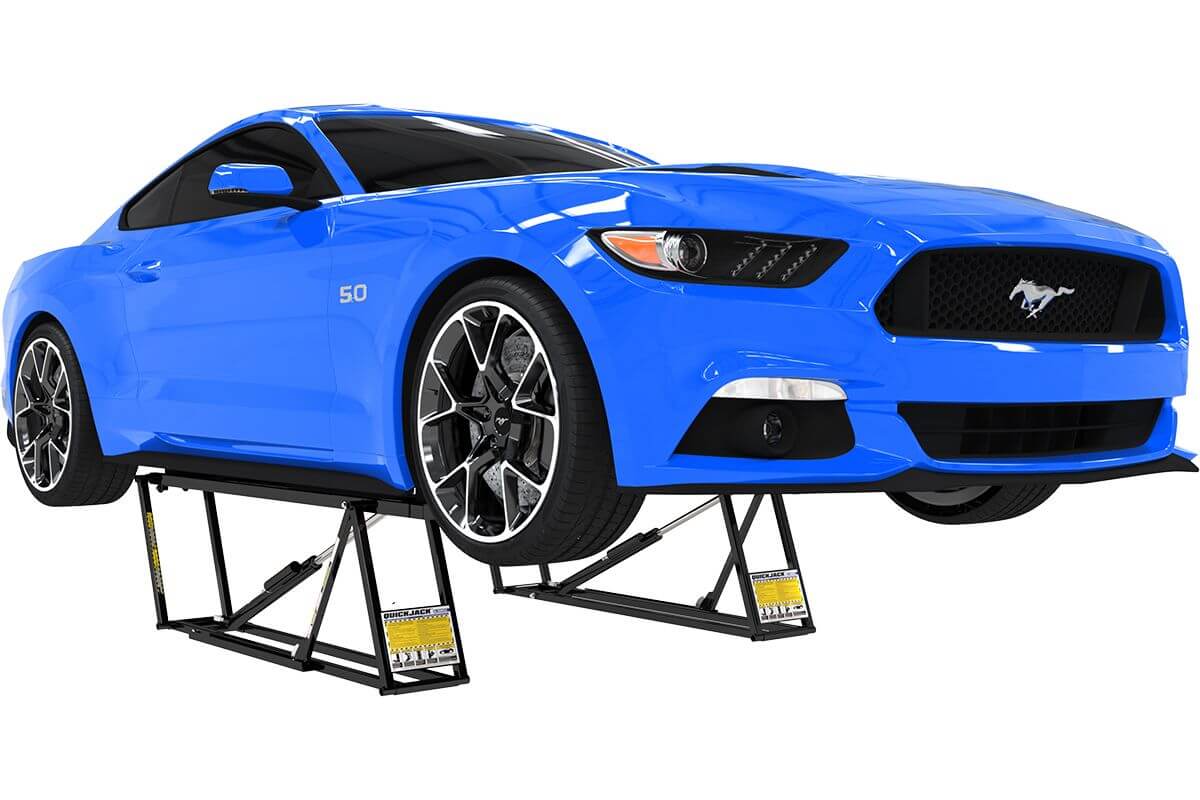

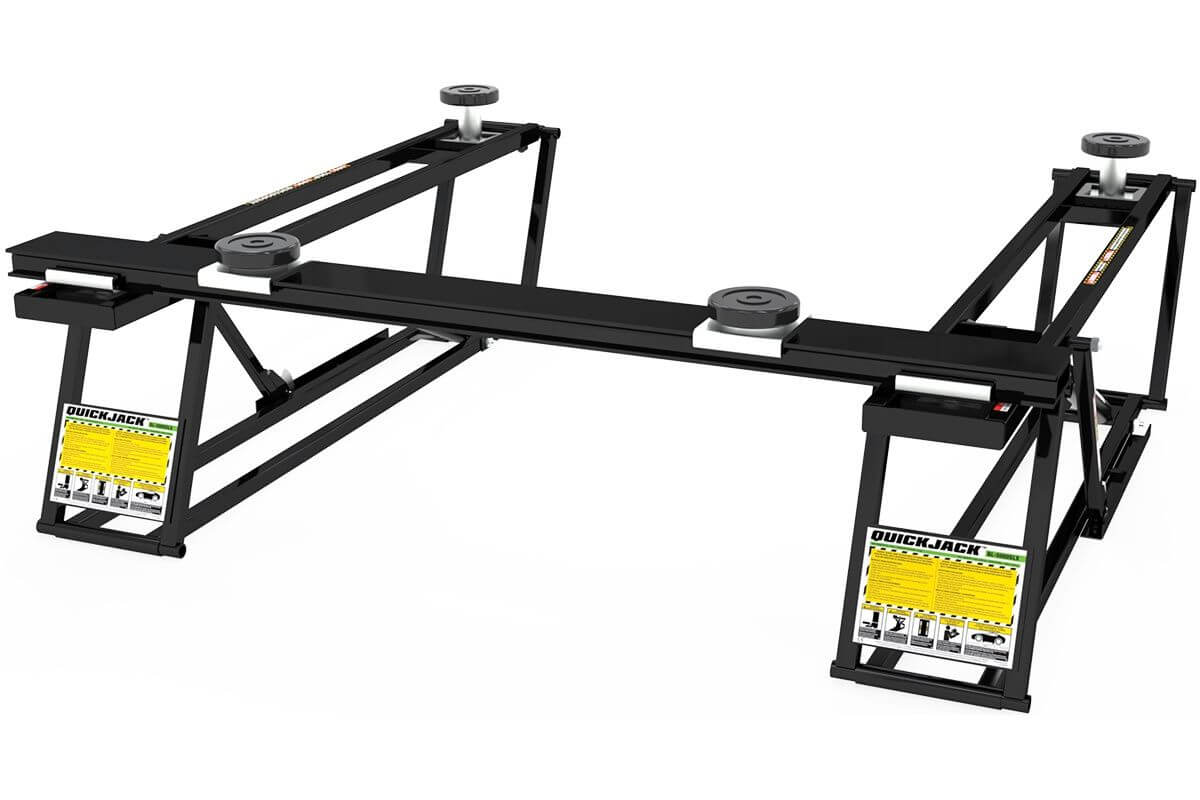

5000TLX is an extended-length lift with jack support locations that extend 6 inches farther than our TL models. QuickJack is the best car lift for your home garage or shop, and with the additional reach of the EXT, you’ll service more vehicles than ever. Great for light-duty trucks and SUVs.  It can hold vehicles up to 5,000 lbs. The smart design produces 24 in. of lifting height, 3 in. lowered height, 76 in. overall length and 11 in. overall width. This lift allows you to easily perform repairs on the underside of vehicles.

The 5,000-lb. capacity 5000TL car lift is made from the same materials found in a professional shop or garage. But, there’s one key difference. You can take the 5000TL with you almost anywhere. Toss it in a large trunk or backseat when you're on the move, and stow it away in a corner when you're done. After the initial one-time assembly, setting up your QuickJack is a snap. Just drop it on the floor, connect the power and position the rubber blocks underneath the lift points. That’s it! Press Up on the pendant control, and watch your car lift do its thing!

With a mere 3" collapsed height, the QuickJack is more versatile than other car lifts. Not to mention, auto-locking safety arms keep you safer than any jack or stand ever could. No cross members. No bolts in your concrete. The QuickJack 5000TL matches to almost any vehicle length and width in its weight class.

The new design better accommodates shorter wheelbases and/or smaller lift point spreads, making this our most clever and versatile design yet. For instance, we’ve eliminated a problem some Porsche owners experienced where the frames would make contact with the tires. Despite the new reduced frame length, the maximum lift point reach on the new 5000TL model is unchanged.

If you need to reach longer wheelbases than permitted by this car lift, chose the extended length 5000TLX


  • Automatic safety locks: Features dual-position automatic safety locks. As the frames rise, these locks glide securely into place. Disengage with a simple flip of the lock bar and your car lift is ready for a smooth descent.

  • Reduced overall length: We shaved off 3" end-to-end on the BL-5000TL (70" overall). This makes QuickJack easier to stow in tight spaces and more able to service vehicles with narrow wheelbases. The maximum lift point reach is unaffected by the change. The BL-5000EXT measures 76.5", ensuring that you don't compromise on safety while lifting longer wheelbase cars.

  • Improved lift point access: By extending each rubber block tray an inch toward the center of the frame, the minimum lift point reach is now 2" less than it was before. This allows our portable car lift to accommodate smaller vehicles, like Porsches, with ease.

  • One-handed operation: By holding the pendant control in one hand, your other hand is totally free. No cranking or bending during "liftoff."

    What's Included:

    • 5000TLX Left Frame Assembly
    • 5000TLX Right Frame Assembly
    • 1x Hydraulic power unit with control
    • 4x Medium rubber lift blocks (2")
    • 4x Tall rubber lift blocks (3")
    • 2x Short hydraulic hoses
    • 2x Long hydraulic hoses
    • 2x Frame-positioning handles
    • Fittings and thread tape for setup
    • Instruction manual


    • 3 liters of Automatic Transmission Fluid
    • Air source to inflate air cylinders up to 50 PSI
    • Assembly tools

    Lifting capacity
    5,000 lbs. (2,268 kg)

    Lowered height
    A - Frame only: 3" (76 mm)
    B - With 2" block: 3.5" (89 mm)

    Lifting height
    D - With 2" block: 21" (521 mm)
    E - With 3" block: 22" (546 mm)
    F - Max. height: 24" (616 mm)
    G - With adapters: 24" (597 mm)
    H - With adapters + pin: 26.75" (673 mm)

    Lift point spread
    I - Maximum: 66" (1,676 mm)
    J - Minimum: 43" (1092 mm)

    Frame dimensions (ea.)
    K - Width: 11" (278 mm)
    L - Length: 76" (1,930 mm)
    A - Height (lowered): 3" (76 mm)
    - Weight: 81.5 lbs. (37 kg)

    Other specs
    - Time to full rise: 30 seconds
    - Power unit weight: 15 lbs. (7 kg)
    - Shipping dimensions (ea. frame): 79.5" (L) x 15.25" (W) x 5" (H)
    - Shipping weight: 250 lbs. (113 kg)
