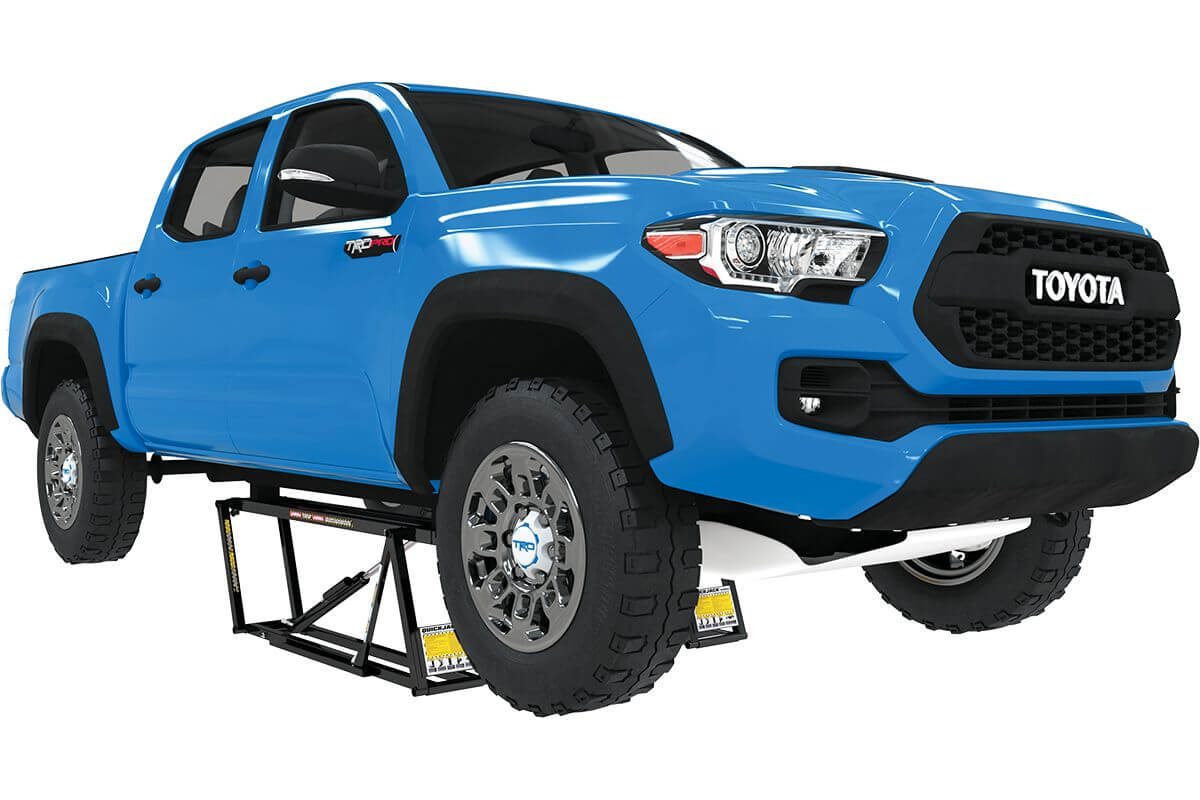

QuickJack 7000TLX | Extended Portable Car Lift 7000 lb capacity


Regular price
Price: $1,925.00
Regular price
List Price:
Sale price
Price: $1,925.00
We pay the sales tax + Free Shipping | Ends:
View Cart

Free Shipping with Tracking

No Sales Tax (excluding TX)

Price Match Guarantee (excluding SafeRacks & Mesa Safe products)

7,000 lb. lifting capacity - Extended-Length Portable Car Lift

The 7000TLX is one of the safest, highest-capacity, and longest-reaching portable car lifts that has ever been made. Vehicle types with lift points that stretch toward the edges of the wheelbases can easily be serviced by a fully collapsible, open-center car lift. Before this ruggedly built lift came along, only two-post and four-post lifts would be able to service such vehicles. Even mid-rise lifts, while still popular in many auto detailing shops and repair bays, often struggle with unique lift point spreads. When you compare the 7000TLX to other QuickJack models, its 66” lift point will allow your operators to access more trucks and SUVs than ever before.

Although this lift is sporting a longer and beefier construction, it’ll still be able to reach its max rise in approximately 30 seconds. Combine the 7000TLX with a QuickJack truck/SUV adapter kit, sold separately, and you’ll be able to get even more rise and convenience out of your lift.

Like other lower-capacity QuickJack lifts, (the 3500SLX, 5000TL, and 7000TL) the 7000TLX still has built-in urethane wheels so you’ll be able to easily roll around your lift, indoors and outdoors. This is one of QuickJack’s heavier models, but you still won’t need to rely on bolts or special wiring.

The 76” frames are longer than QuickJack’s TL models, but they’re still easy to roll and stow around your garage. An SUV or truck bed can make for the perfect transportation to the track or to other locations. You can set up your QuickJack virtually anywhere with solid, level ground. Initial setup is quick and easy, it’ll only take a few moments to get from stow-to-go.

Sporting a collapsed profile that’s just over 3.5”, the 7000TLX doesn’t have a need for extra support crossbeams. It’s the perfect car lift for shops that may not have an ample amount of space, but they still need to service some big vehicles.

This model plugs into an 110V AC wall outlet power to operate.

Extended-length car lift design

The 7000TLX portable car lift has been redesigned to allow it to accommodate heavy, high-clearance vehicles with long wheelbases. QuickJack has also increased the overall frame length and lift point spread by 6”. What this means is that the minimum lift point is now 6” longer, so smaller vehicles probably will not be able to fit with the 7000TLX.

TL minimum lift point spread: 37"
TLX minimum lift point spread: 43"

TL maximum lift point spread: 60"
TLX maximum lift point spread: 66"

TL overall frame length: 70"
TLX overall frame length: 76" (7000TLX model only)

What's Included

  • 7000TLX Left Frame Assembly
  • 7000TLX Right Frame Assembly
  • 1x Hydraulic power unit with control
  • 4x Medium rubber lift blocks (2")
  • 4x Tall rubber lift blocks (3")
  • 2x Short hydraulic hoses
  • 2x Long hydraulic hoses
  • 2x Frame-positioning handles
  • Fittings and thread tape for setup
  • Instruction manual


  • Up to 3 liters of Automatic Transmission Fluid
  • Air source to inflate air cylinders up to 50 PSI
  • Assembly tools

Lifting capacity
7,000 lbs. (2,268 kg)

Lowered height
A - Frame only: 3.5" (89 mm)
B - With 2" block: 4" (102 mm)

Lifting height
D - With 2" block: 21.5" (546 mm)
E - With 3" block: 22.5" (572 mm)
F - Max. height: 24.5" (622 mm)
G - With adapters: 24.25" (610 mm)
H - With adapters + pin: 27" (686 mm)

Lift point spread
I - Maximum: 66" (1,676 mm)
J - Minimum: 43" (1,092 mm)

Frame dimensions (ea.)
K - Width: 12.5" (318 mm)
L - Length: 76" (1,930 mm)
A - Height (lowered): 3.5" (89 mm)
- Weight: 98 lbs. (45 kg)

Other specs
- Time to full rise: 30 seconds
- Power unit weight: 15 lbs. (7 kg)
- Shipping dimensions (ea. frame): 73.75" (L) x 16.75" (W) x 6.25" (H)
- Shipping weight: 304 lbs. (138 kg)
