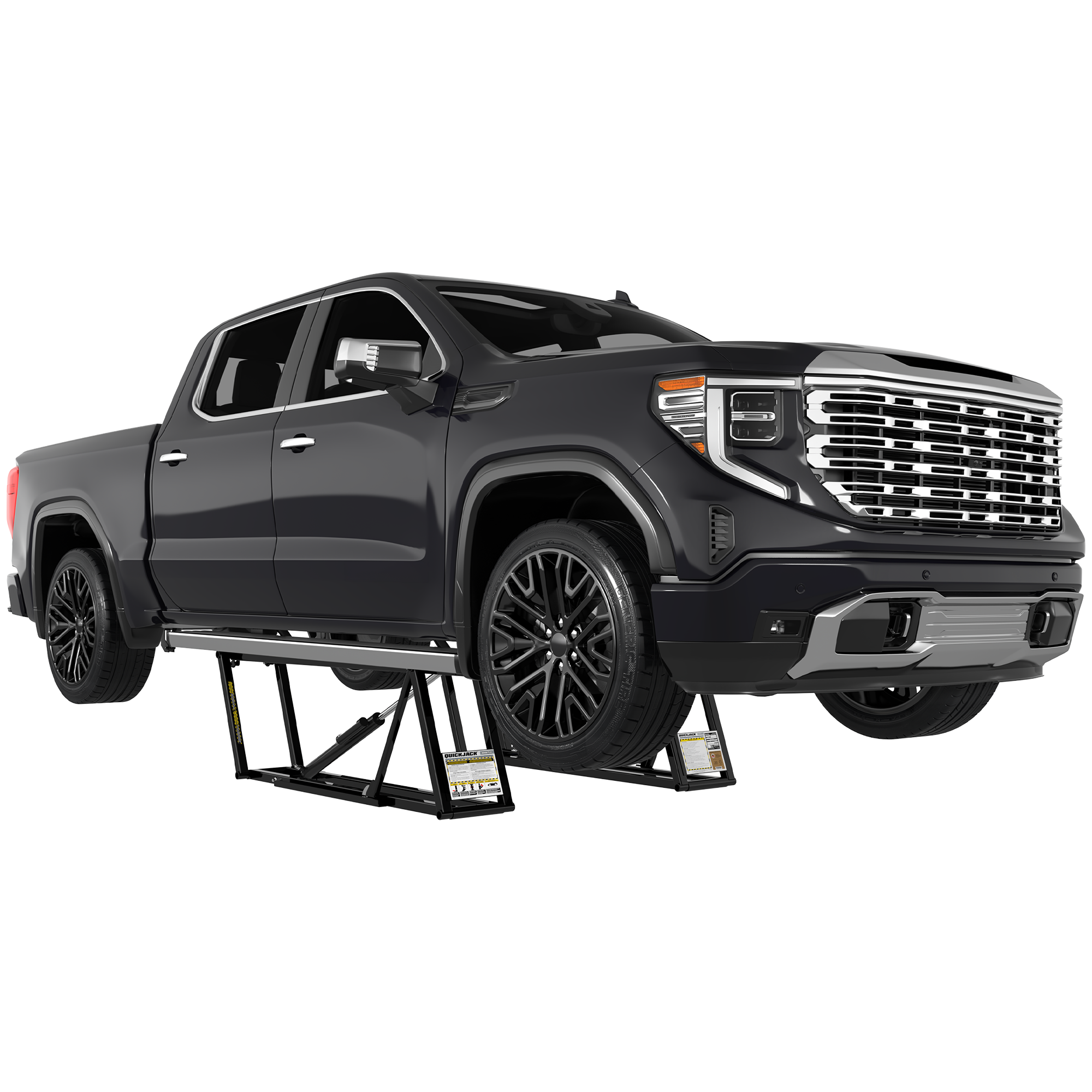

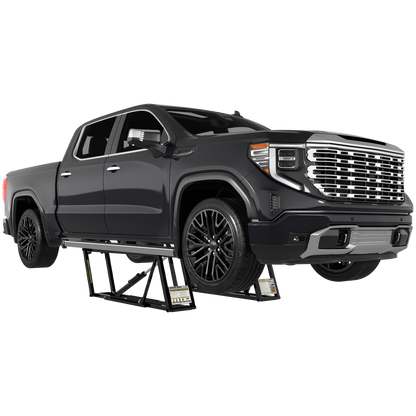

8000TLX Extended-Length Portable Truck and SUV Lift
The QuickJack 8000TLX is the highest-capacity, extended-length portable lift in our lineup - engineered specifically for heavy-duty trucks, SUVs, and long-wheelbase vehicles. With an 8,000-lb. capacity and a 66-inch lift point reach, it handles the jobs that standard car lifts can't touch. Built tough, yet fully collapsible, this portable truck lift gives you full access beneath your vehicle without the footprint of a permanent setup.Extended-length design and lift point specs
The 8000TLX was engineered to accommodate long-wheelbase vehicles with lift points that exceed standard lengths. Its frame and lift point spread are 6 inches longer than TL models, so be sure to measure before purchasing for shorter vehicles. TL minimum lift point spread: 37"TLX minimum lift point spread: 43"TL maximum lift point spread: 60"TLX maximum lift point spread: 66"TL overall frame length: 70"TLX overall frame length: 76"What's different about the NEW TLX Models?
The 8000TLX delivers a full 1,000-lb. boost in capacity over the 7000TLX and includes the latest QuickJack upgrades: reinforced structural components, an upgraded hydraulic system, and a safer, more stable lift cycle. Best of all, it still folds to just 3.5 inches for easy storage and portability.Already own a QuickJack? Upgrade with TLX frames
The 8000TLX left and right frames are available for purchase separately. If you already have a compatible power unit, this is a cost-effective way to increase your lifting capacity. Just follow the correct bleeding procedure for safe operation. Note: frame-only kits do not include hoses, power units, or fittings.Warranty coverage
All TL and TLX models include a 1-year warranty on structure and components. An optional 2-year extended warranty is available.Factory preassembled hydraulics
Each 8000TLX ships with its hydraulic system preassembled at the factory, saving time during setup and ensuring flawless performance right out of the box. You'll be lifting faster with fewer steps and no guesswork.Automatic safety locks
The 8000TLX includes dual-position automatic safety locks that engage securely as the frames lift. Locks automatically slide into place at both mid-rise and full-rise positions, and a simple flip of the lock bar releases them for smooth, controlled descent.Extended-length power & clearance
Built for long-wheelbase vehicles, the 8000TLX features a 76-inch frame and 66-inch max lift point spread. With an 8,000-lb. capacity and 24.5-inch lift height, it’s the ideal portable lift for large SUVs, trucks, and specialty sedans with extended chassis requirements.Upgraded hydraulic system
Our reengineered hydraulic power unit includes a pressure-compensated flow divider and independent shut-off solenoids to ensure both frames rise and lower in perfect sync—critical for heavier vehicles and added safety during operation.Stronger frame, greater stability
The 8000TLX is built with thicker cross members, improved weld geometry, and enhanced pivot joints that resist flex under heavy load. These structural upgrades give you greater confidence, especially when lifting heavier or longer vehicles.One-handed pendant operation

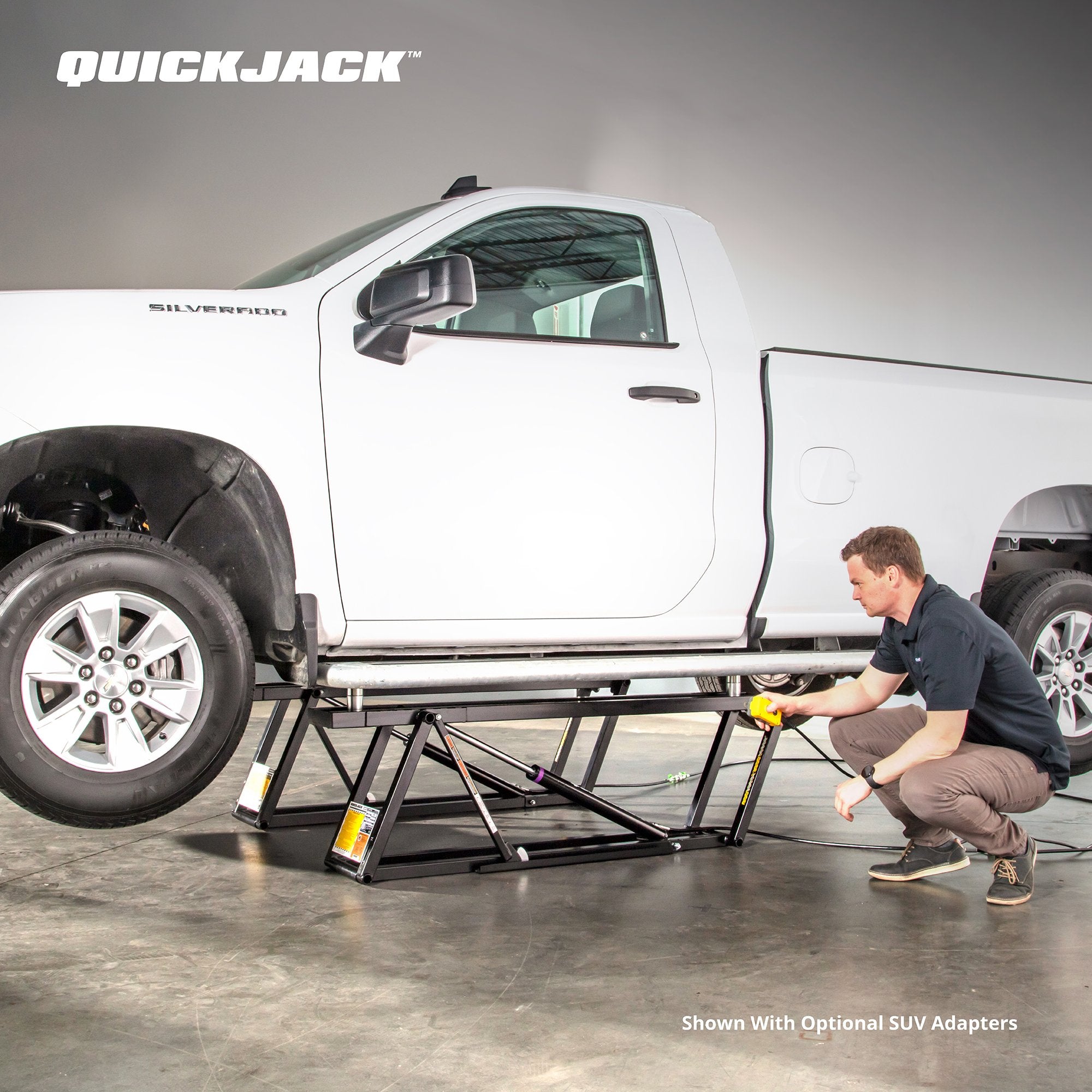

The simple pendant control lets you operate the lift with one hand, keeping your other hand free for guiding the frames or handling basic tasks. QuickJack lifts with the push of a button—no bending, cranking, or manual intervention.Compact footprint, extended utility

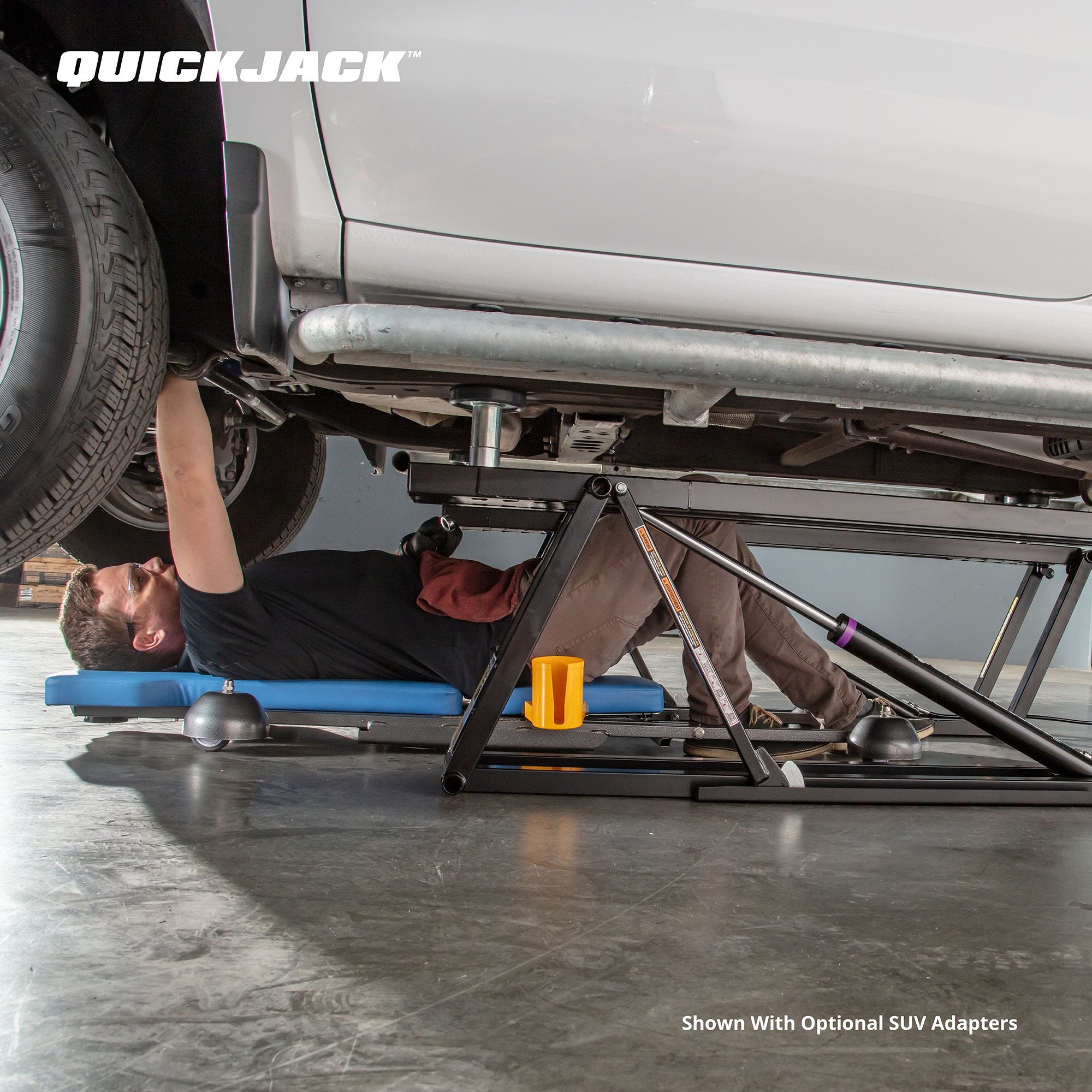

Despite its reach and capacity, the 8000TLX still lowers to a 3.5-inch profile and rolls easily on built-in urethane wheels. It’s the perfect mobile solution for shops or home garages where versatility and space matter.Accessories to increase versatility

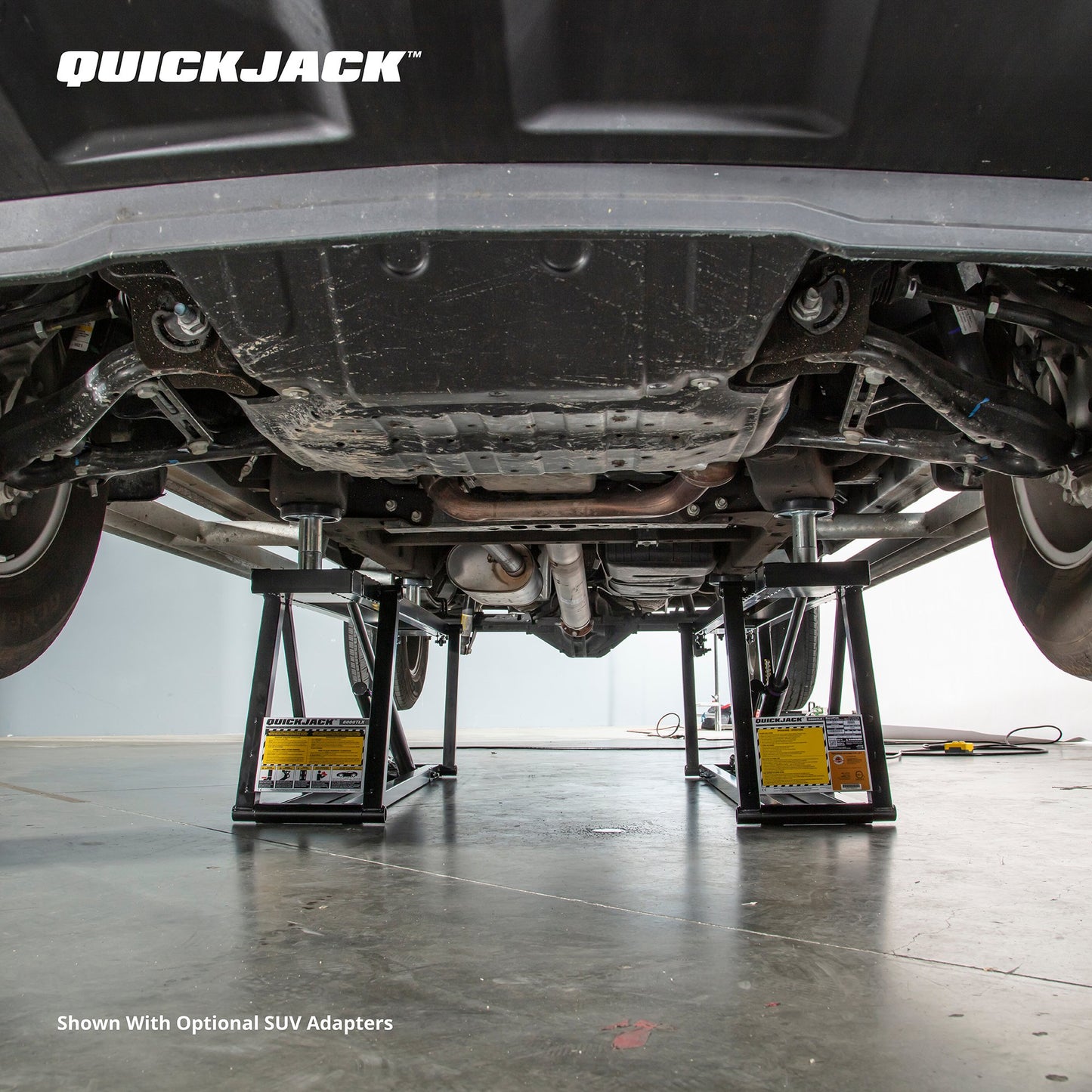

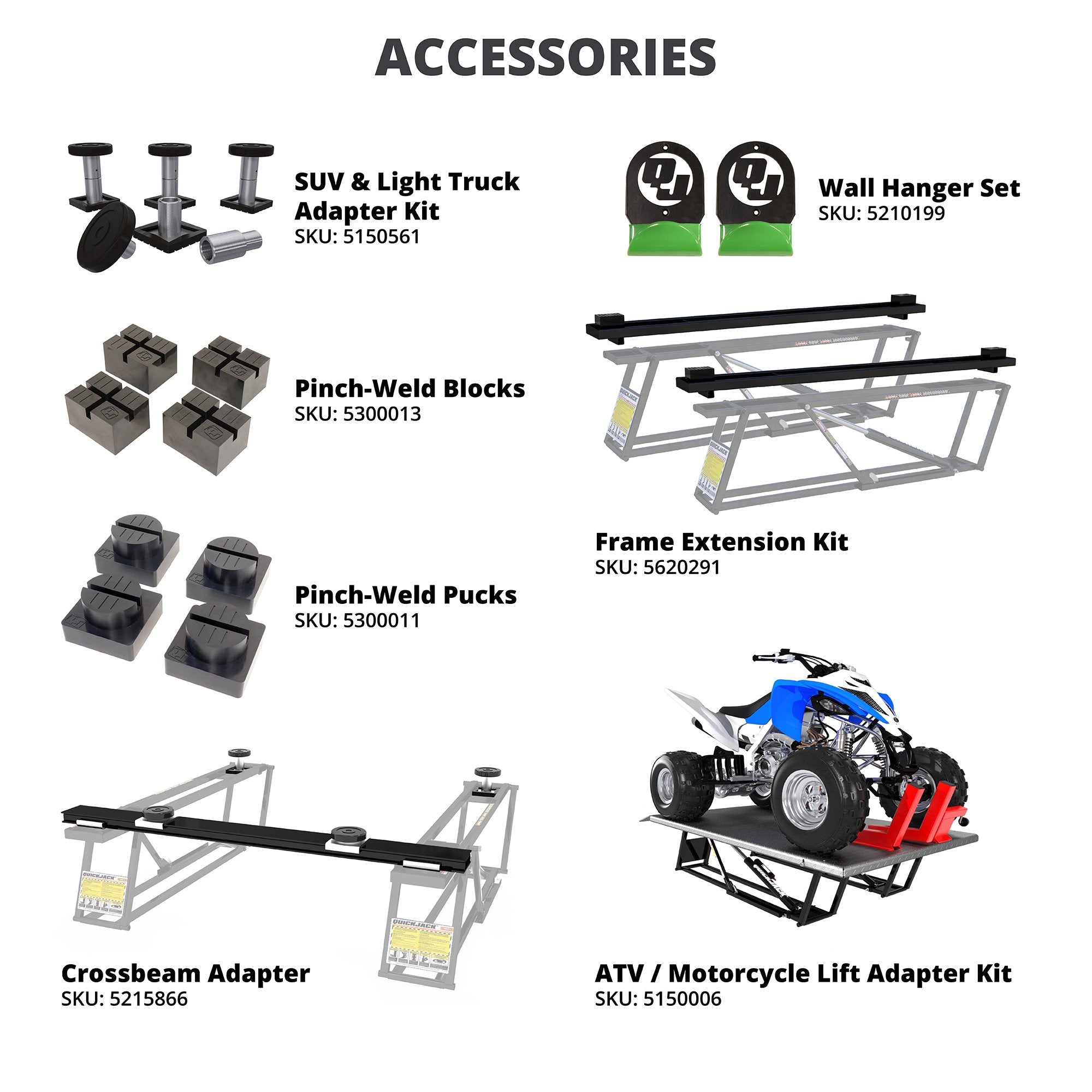

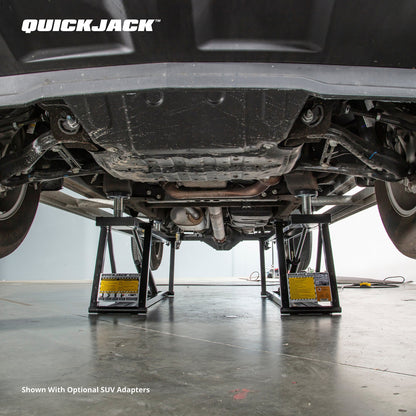

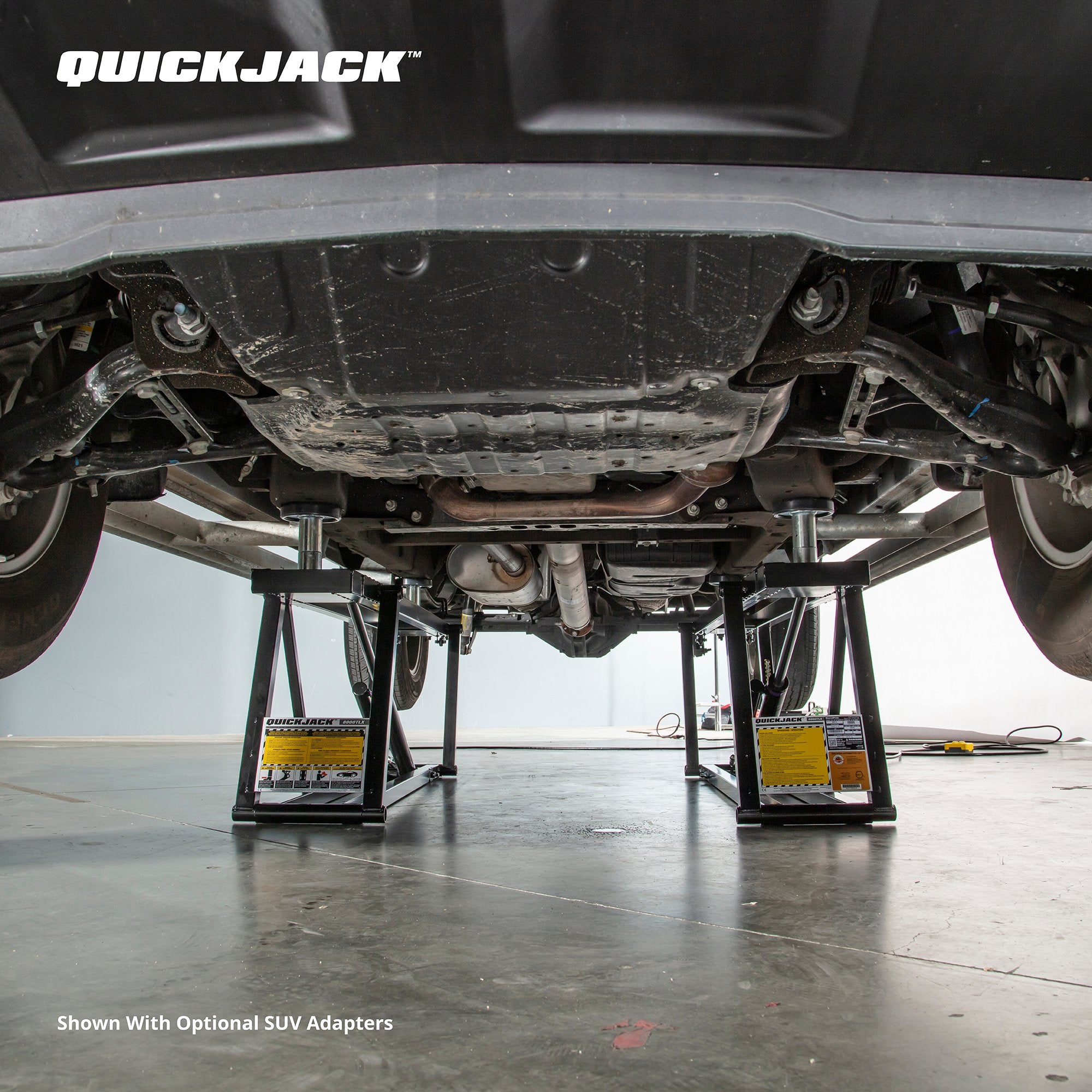

The 8000TLX works with a wide range of QuickJack accessories, including truck and SUV adapters, pinch-weld blocks, and frame extensions. Configure your lift setup to meet your exact needs.General
Material: Steel
Assembly Required: true
Portable: true

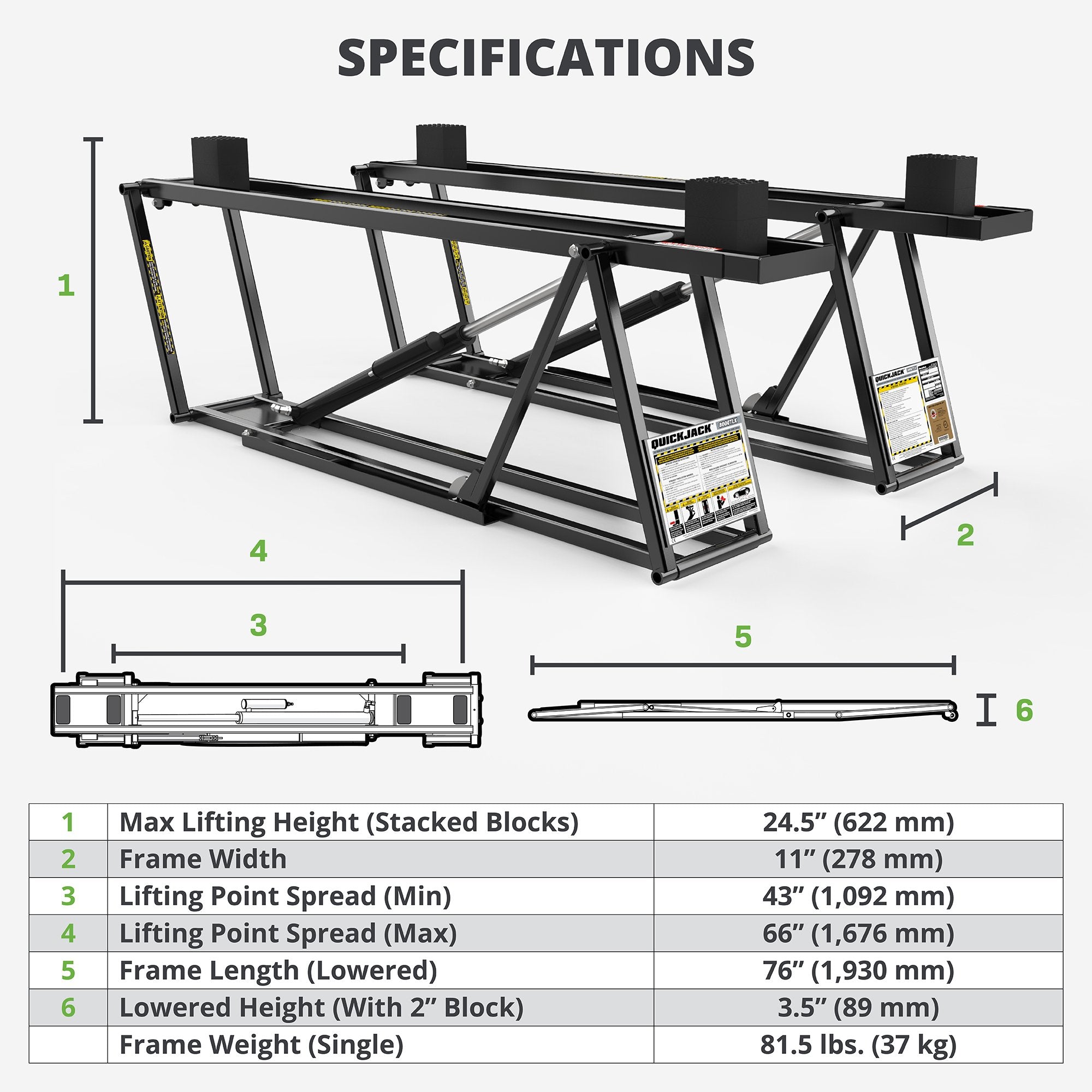

Dimensions
Individual Frame Weight Pounds: 114
Lifting Dimensions
Lifting Height With 2 inch block Inches Rounded: 21
Lifting Height With 3 inch block Inches Rounded: 21.75
Lifting Height Stacked blocks Inches Rounded: 24
Maximum Lift Point Spread Inches Rounded: 66
Minimum Lift Point Spread Inches Rounded: 43
Lifting Capacity
Lifting Capacity Pounds: 8000
Rise
Time to Full Rise sec: 26
Locking Dimensions
Locking Position Qty: 2
Lock Release Type: Single-Point safety release
Power
Horse power: 1
Voltage: 110V 50/60HZ 1PH
Amps: 10
Motor: 110V, 60Hz, 1-PH
Noise dB: 70
Power Unit: 110V, 50-60Hz, 1-Ph.
Watts: 1100
Motor RPM: 3450

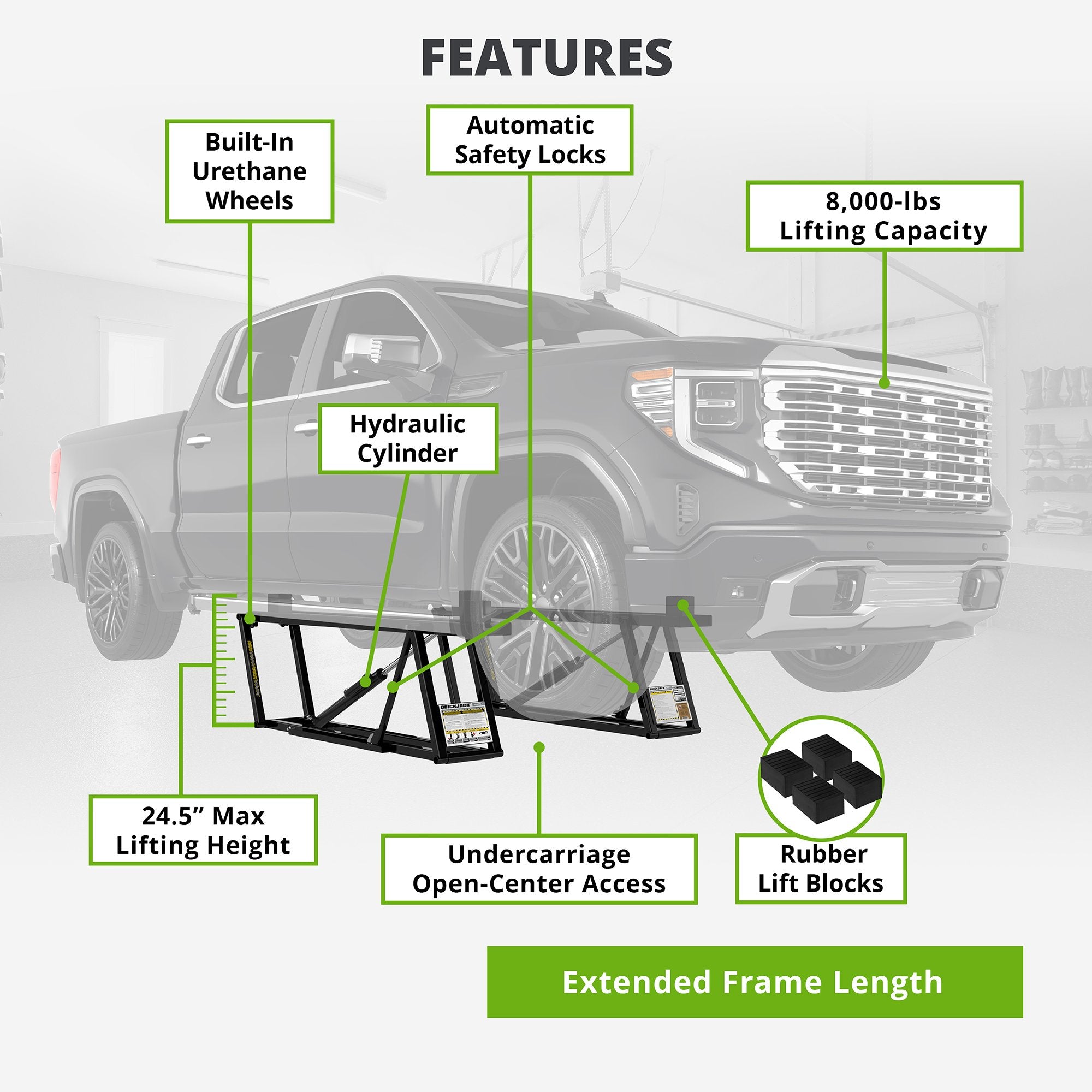

- Factory preassembled hydraulics
- Automatic safety locks
- Extended-length power & clearance
- Upgraded hydraulic system
- Stronger frame, greater stability
- One-handed pendant operation
- Compact footprint, extended utility
- Accessories to increase versatility
- 1 Set of 8000TLX-110V 1 Power unit
- Left and Right Frame Assembly
- 1x Short Hydraulic Hose
- 1x Frame-positioning Handle
- 4x Medium Rubber Lift Blocks
- 4x Tall Rubber Lift Blocks
- 2x Long Hydraulic Hoses
