Versa Lift Model 24 Attic Storage Lift: Move Boxes Between Floors Without the Ladder

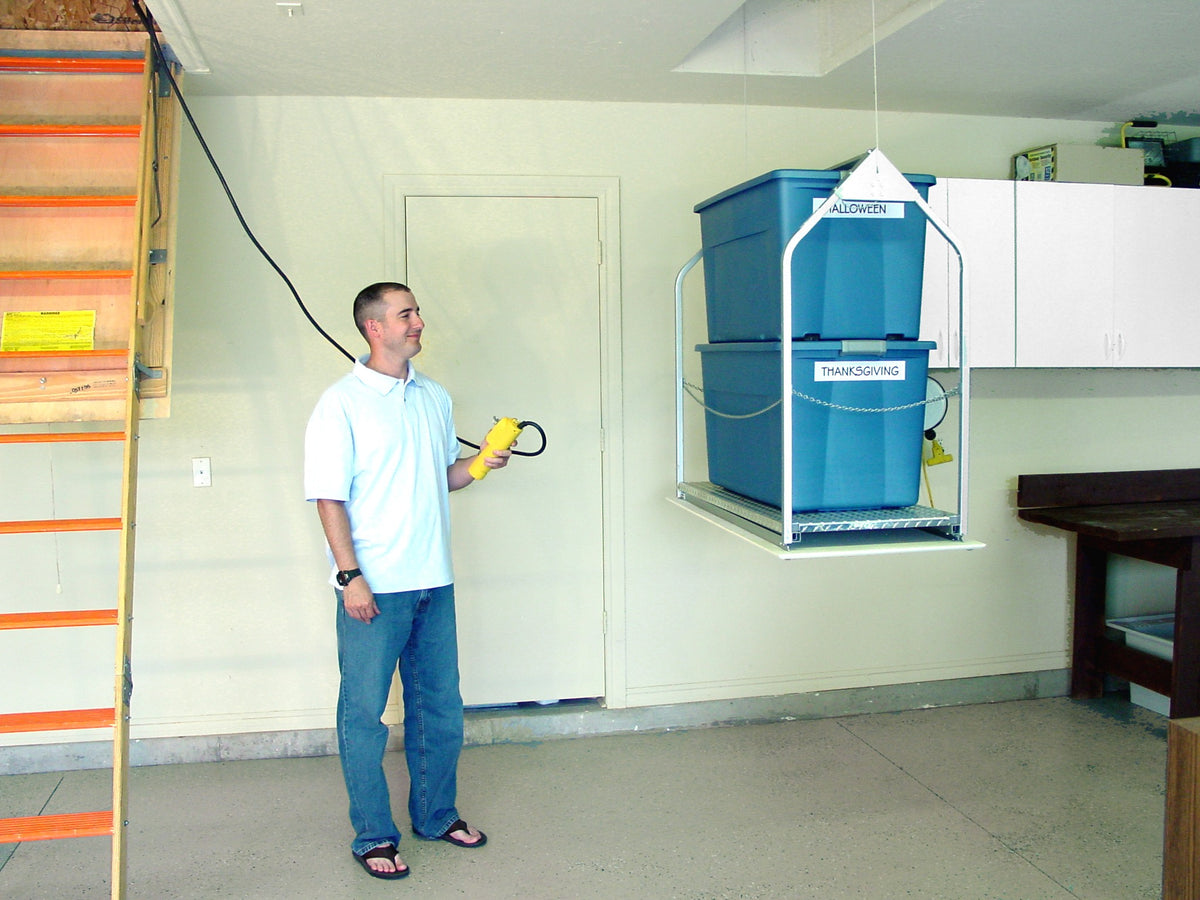

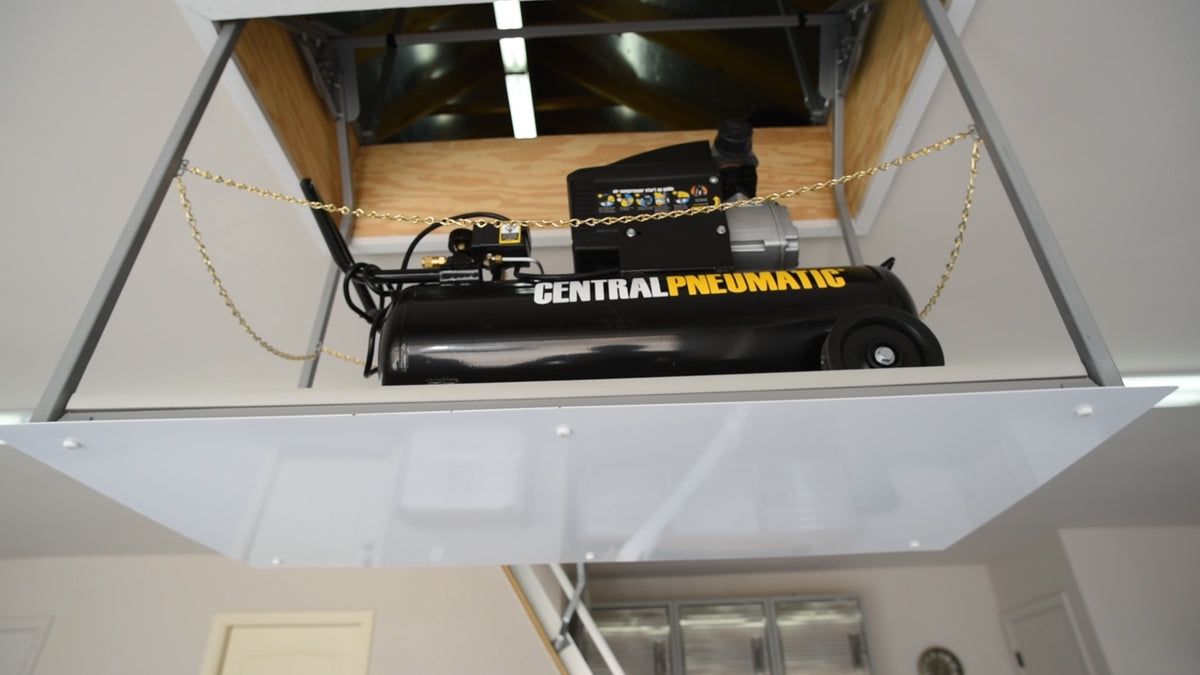

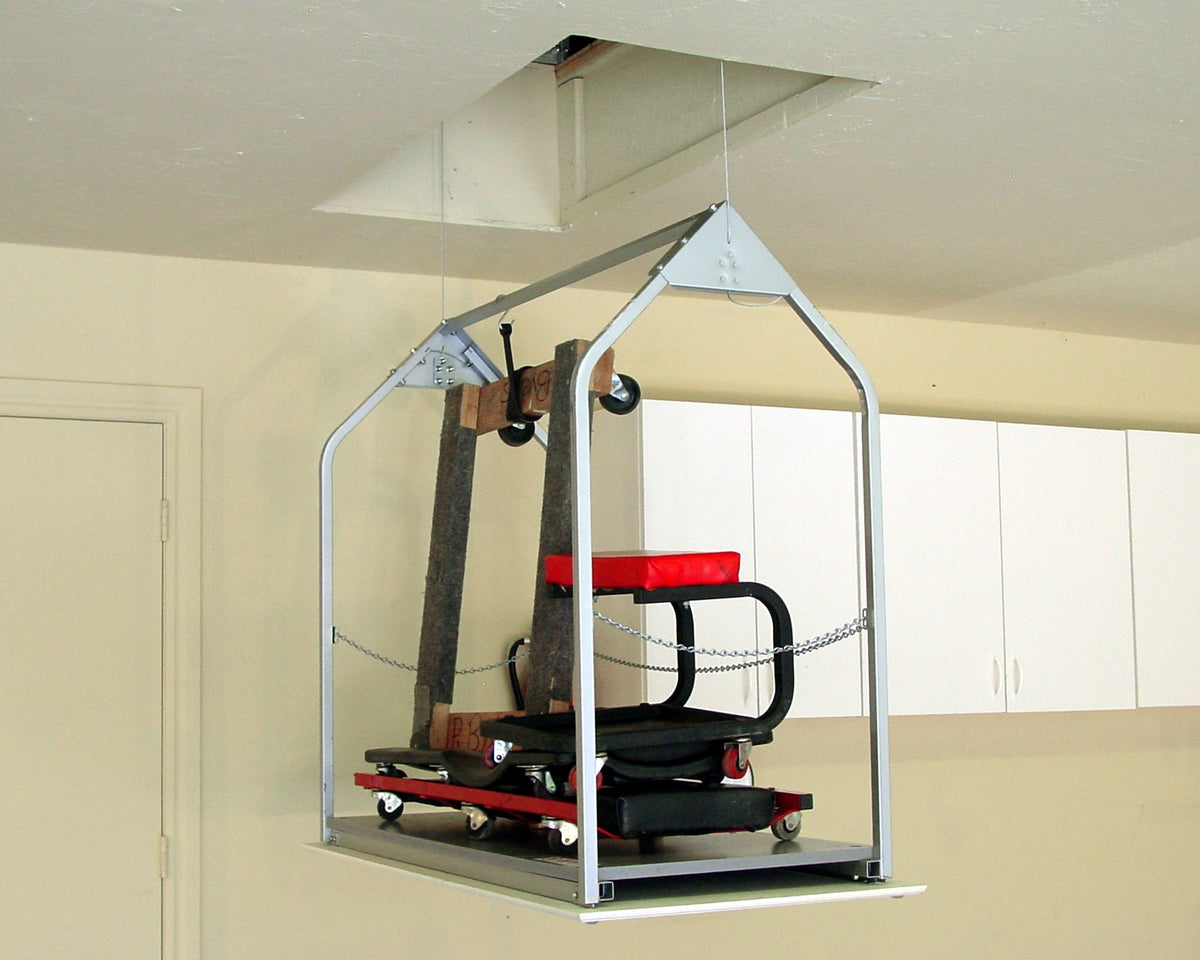

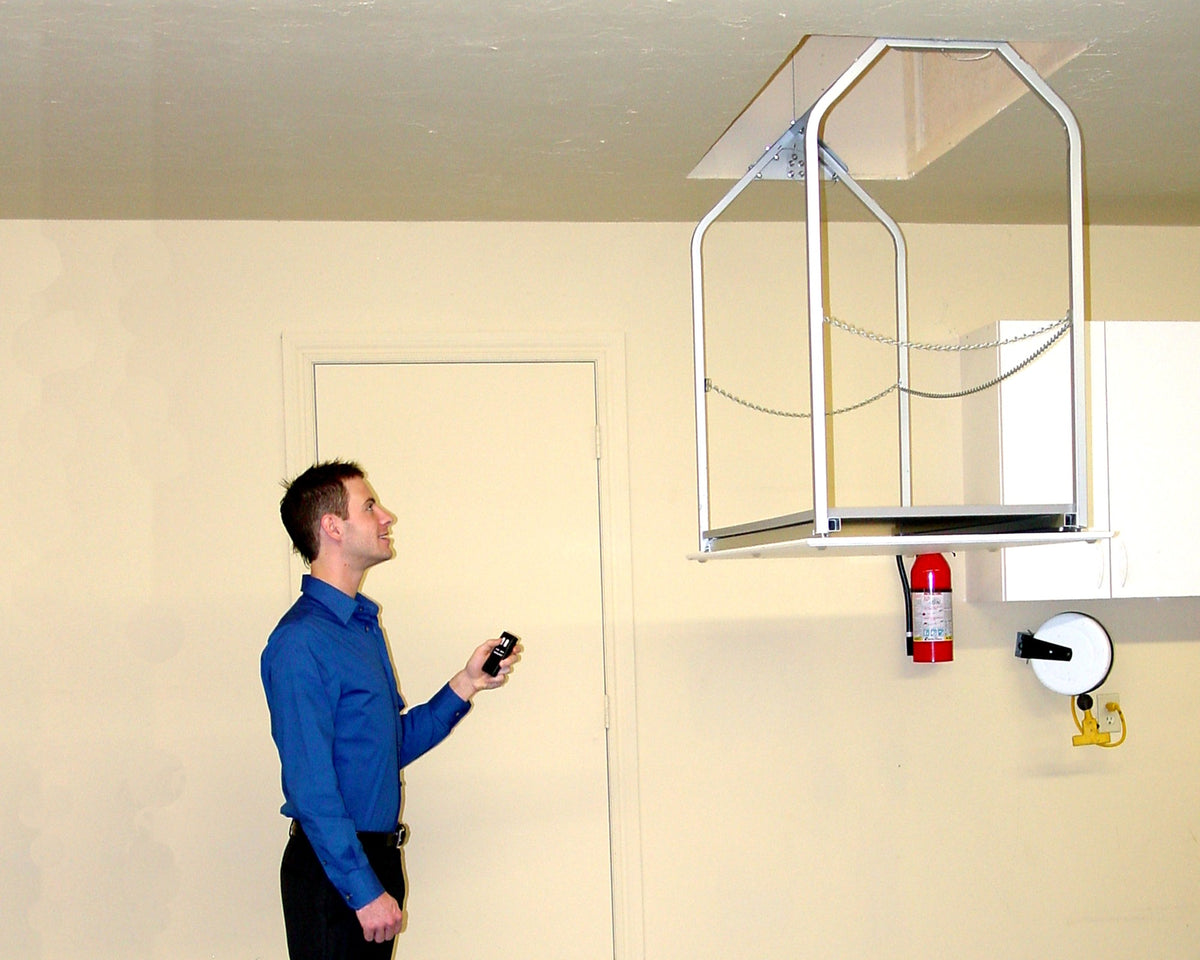

Stop carrying boxes up a folding attic ladder. The Versa Lift Model 24 is a motorized attic storage lift that mounts on the attic floor over a framed ceiling opening. It carries up to 200 lbs per load between your garage or living space and the attic above. The platform stops level with the attic floor, so you slide cargo on and off instead of lifting it, and a spring-loaded door closes the ceiling opening when the platform is raised.

→ Versa Lift Installation Services are available through our affiliated company, Install Genie. Text or call 844-600-0885 or email contact@installgenie.com.

→ Important Safety Note: The Versa Lift is designed to carry storage items only. Never ride, stand on, or sit on the lifting platform. If the lift is installed in living space, a closet, or a walk-in attic accessible to children, the manufacturer requires the Versa Lift Auto-Shutter, which closes the lift opening as the platform goes down.

Features:

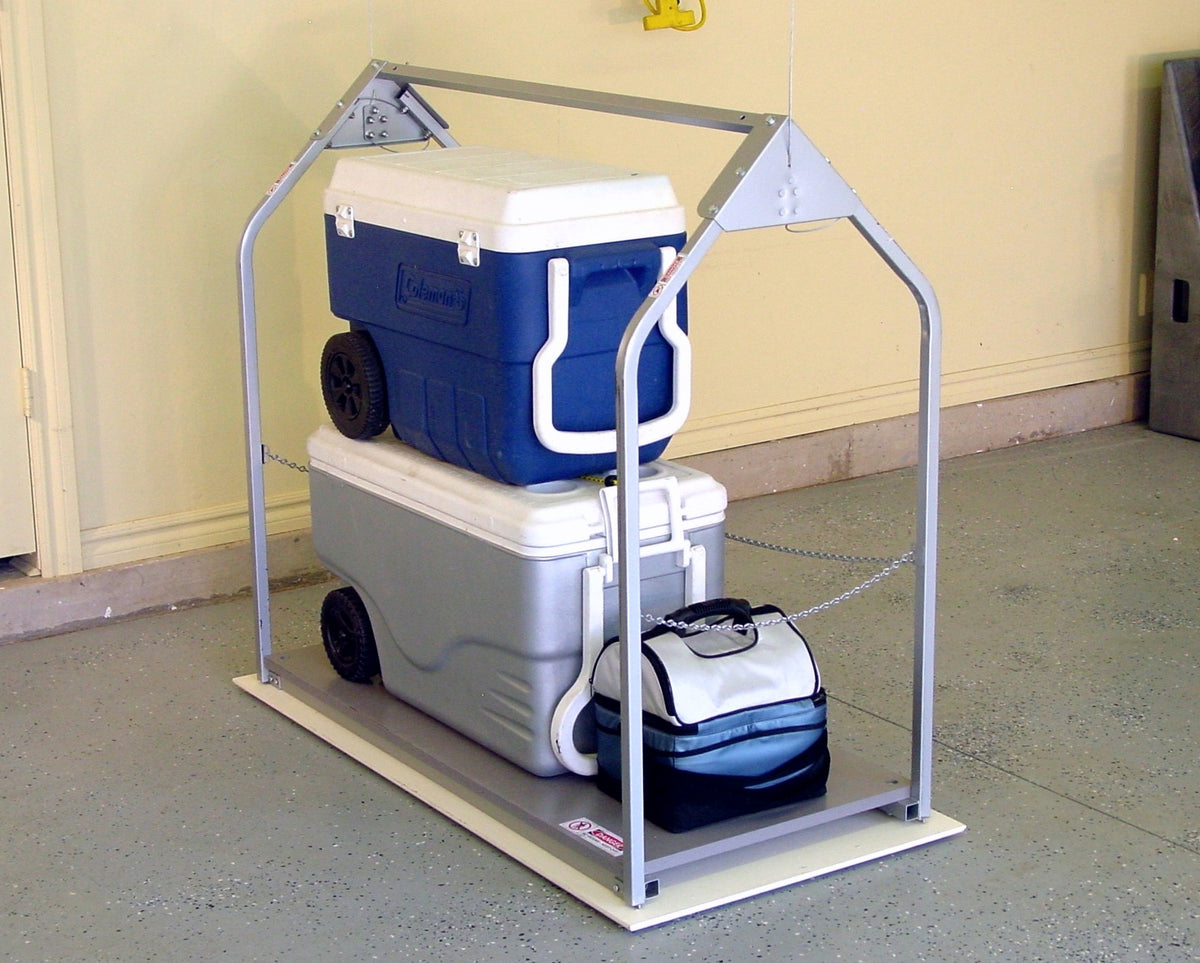

• 200 lb Lifting Capacity: Moves up to 200 lbs and 15.3 cubic feet of cargo per trip.

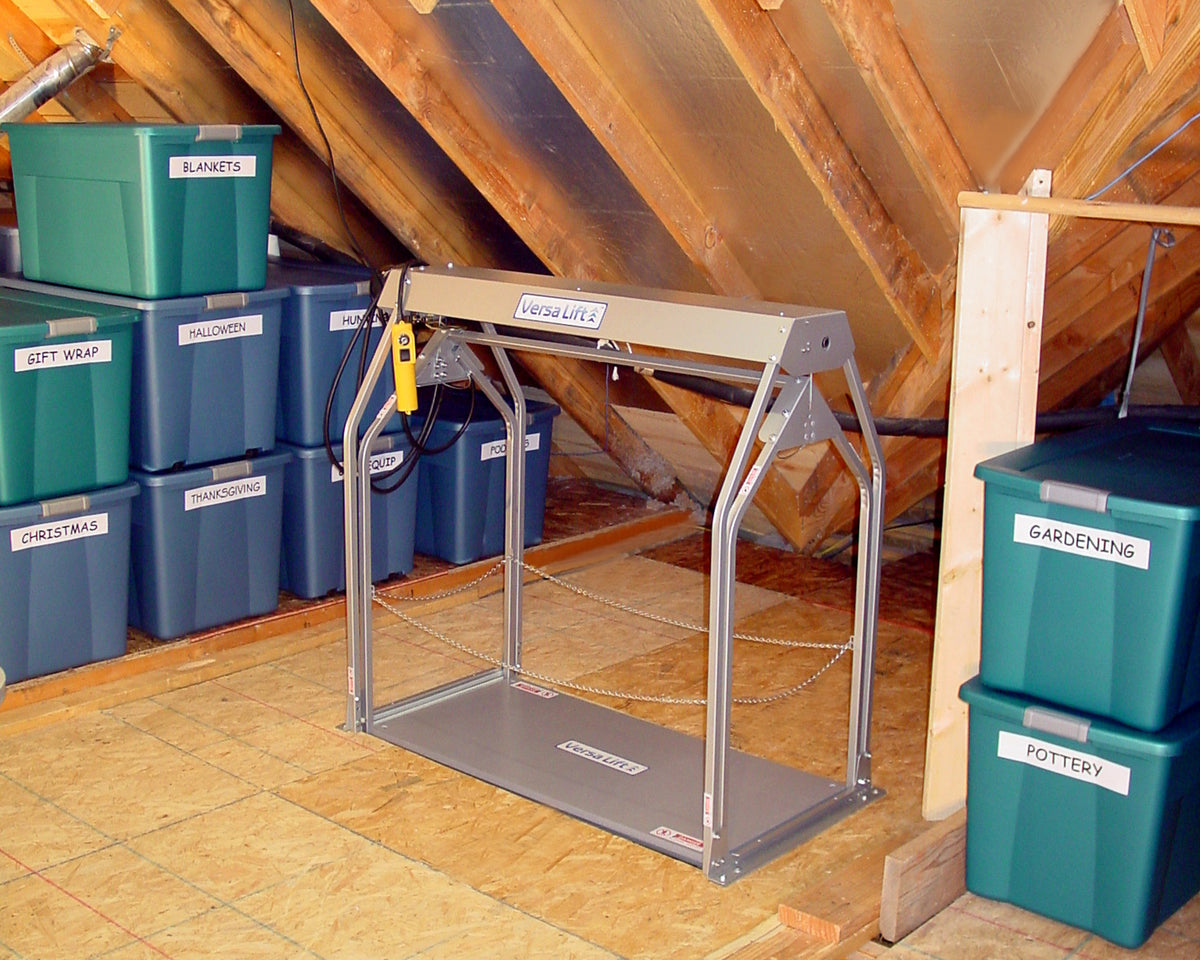

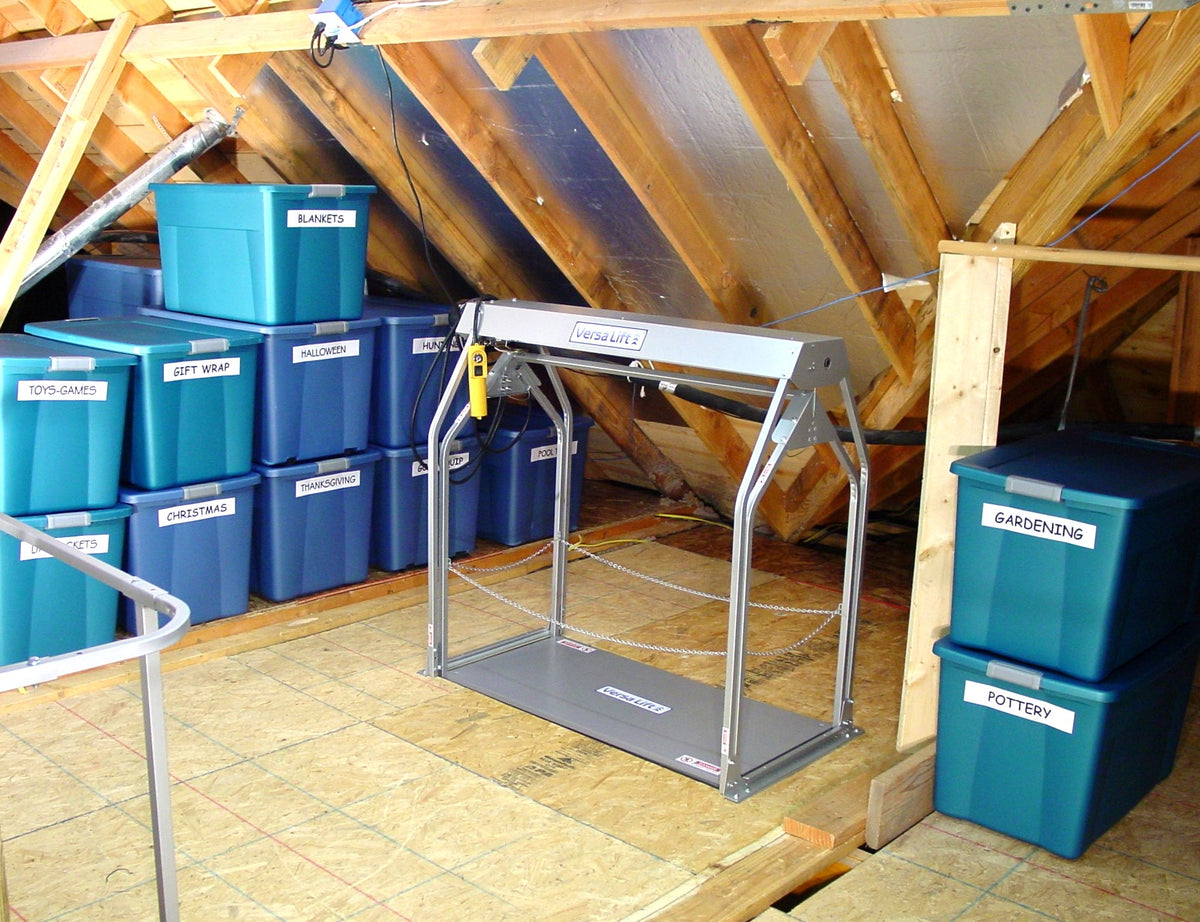

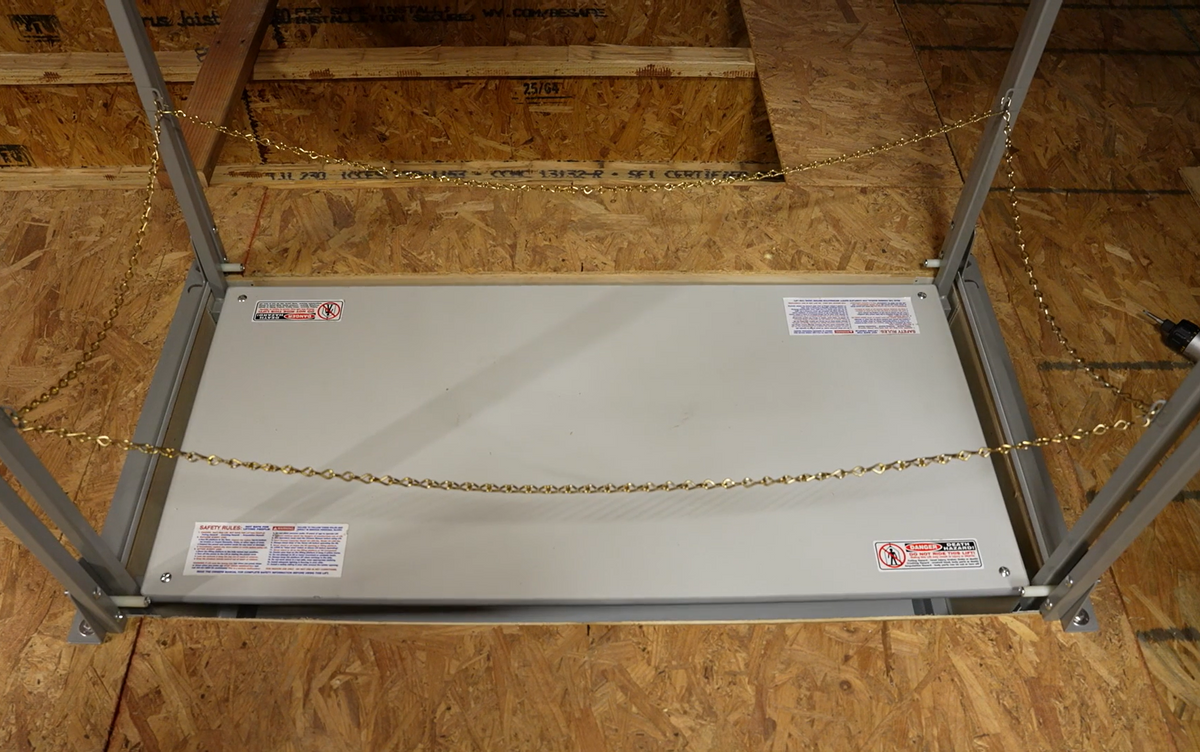

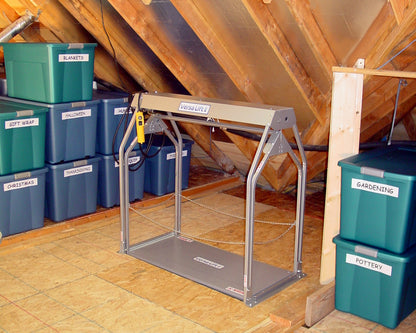

• Level-Up™: The platform stops level with the attic floor regardless of joist height, so heavy items slide off instead of being lifted out.

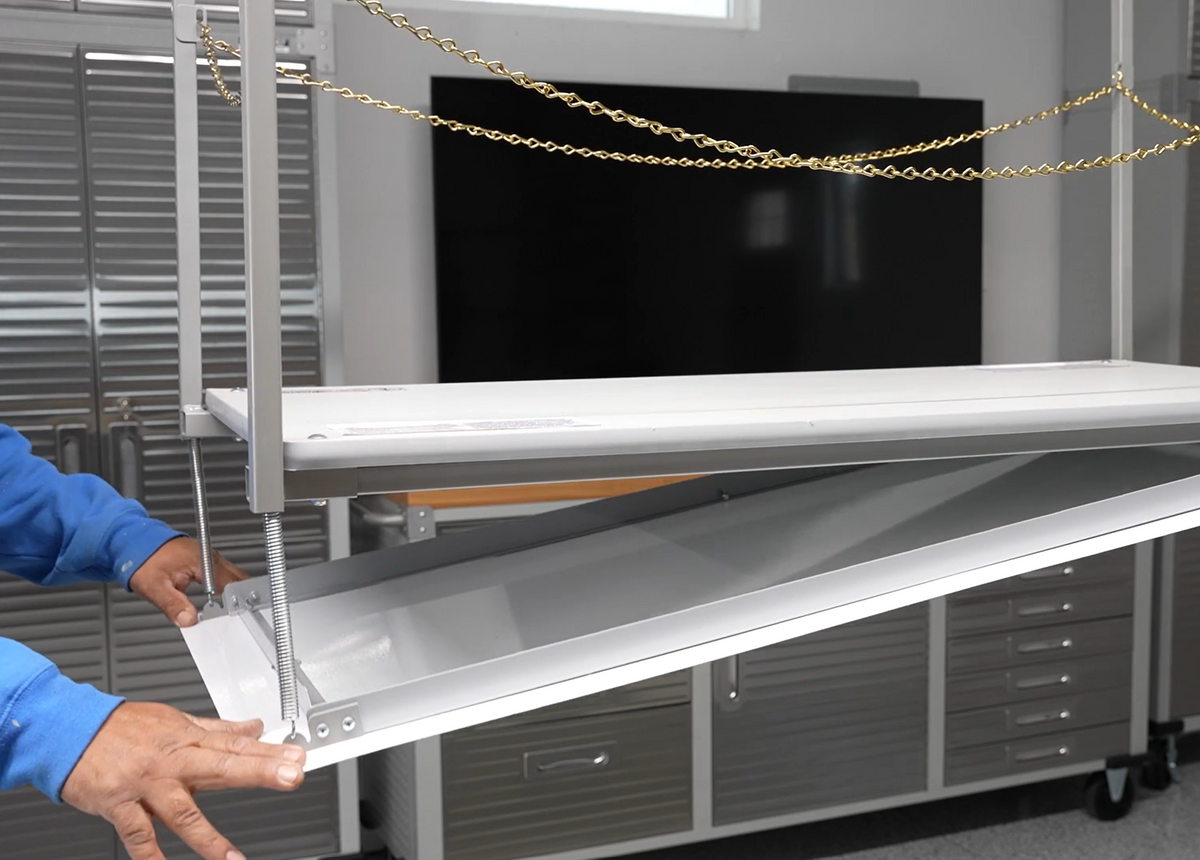

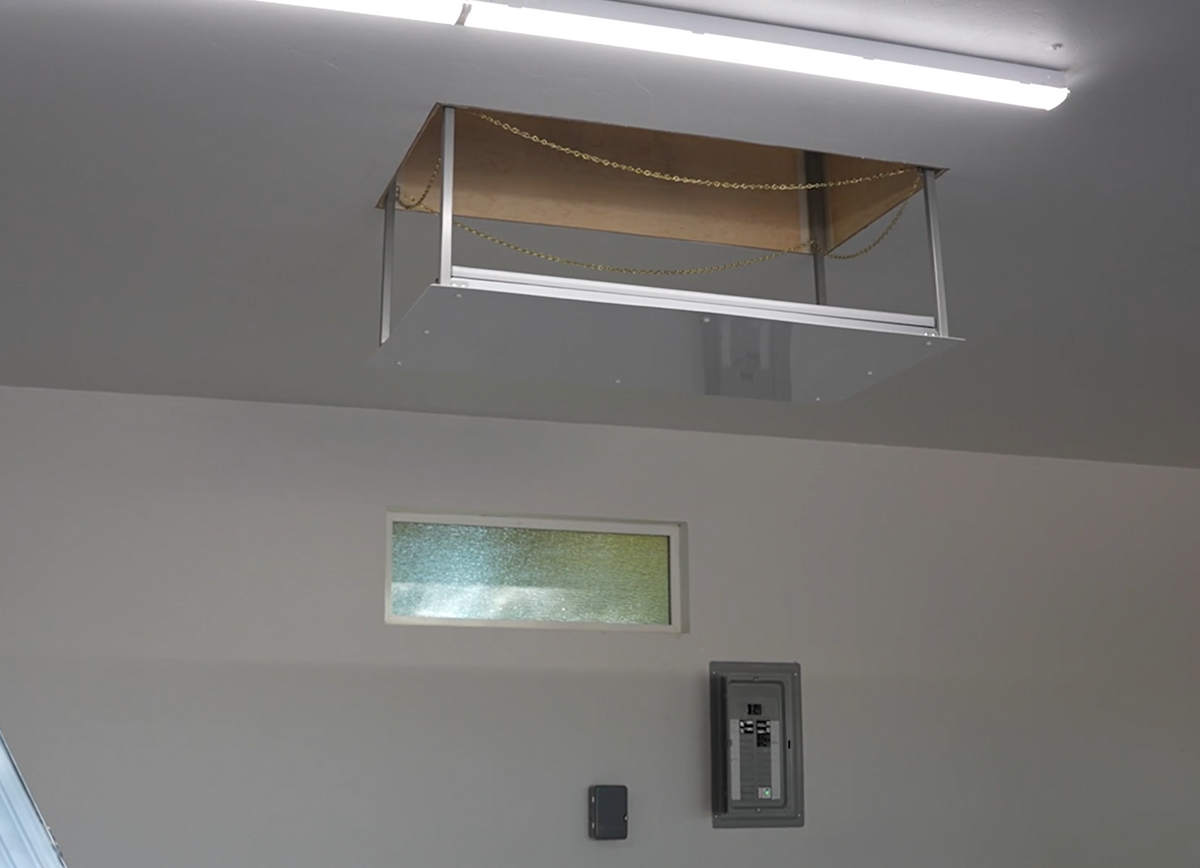

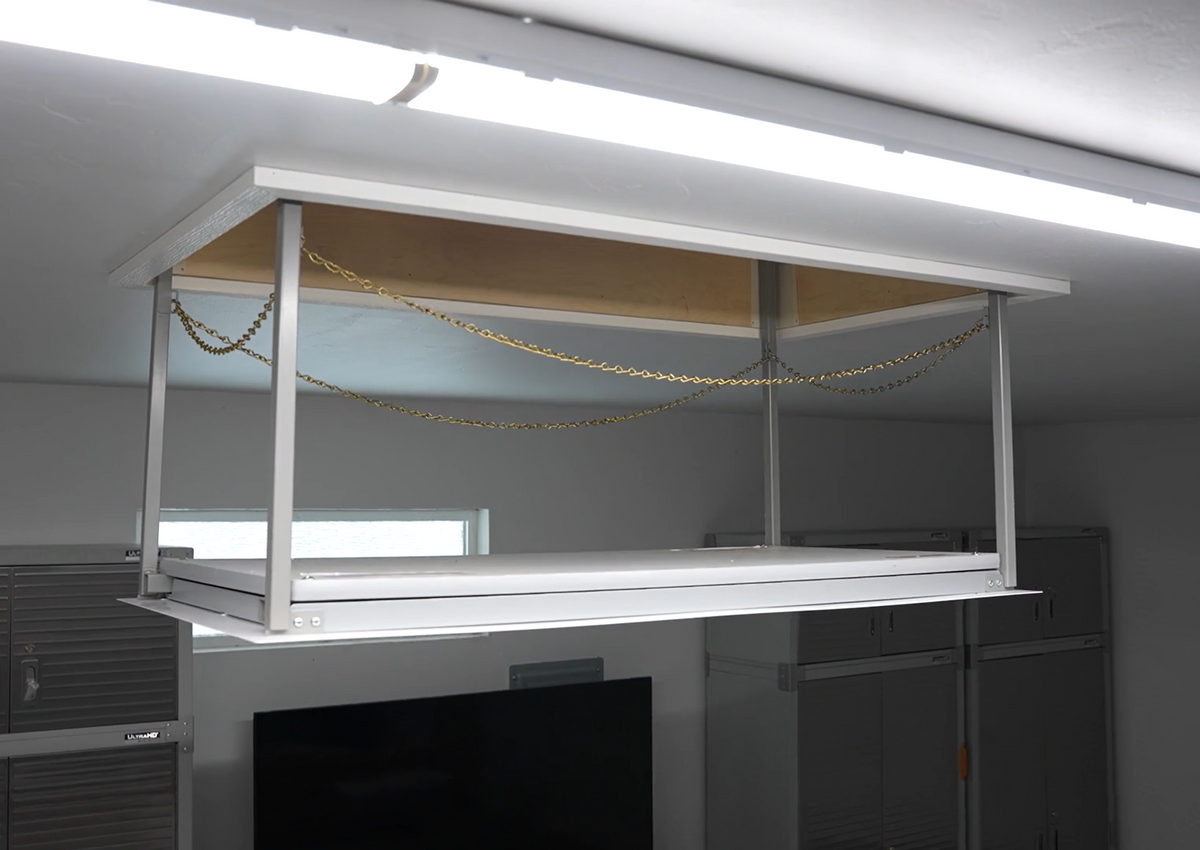

• Auto-Close™: A spring-loaded door panel under the platform closes the ceiling opening when the lift is up. It self-adjusts for joists up to 20" tall and can be weatherstripped or insulated with a rigid foam insert.
• Auto-Stop™: An upper limit switch stops the platform at the attic floor, and a slack-cable switch stops it when it lands on the floor below.
• Instant Motor Brake: Controls are momentary, so the gear motor's brake engages the moment you release the button.

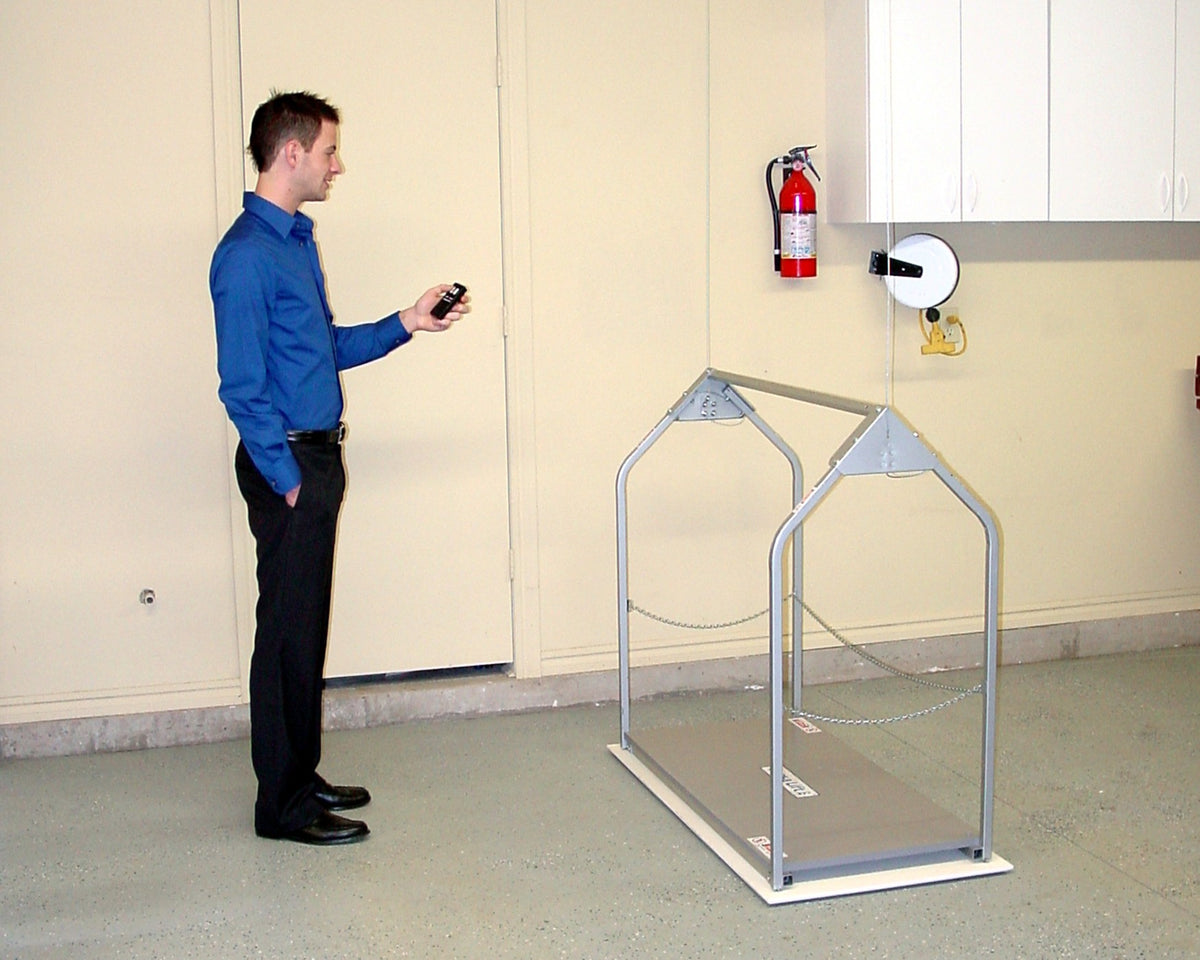

• Three Control Options: Corded remote with key lock, wireless remote, or two wall-mounted switches with a key lock.
• Four Height Ranges: Fits floor-to-floor heights from 8' up to 20'.
• Fast Travel: Lifts at about 8" per second, roughly 15 seconds for 10 feet.
• Steel Construction: Powder-coated steel frame with two zinc-plated steel cables, each rated to a 1,000 lb break strength.
• Standard Household Power: Plugs into a grounded 110–120V outlet. Surge protector included.
• 3-Year Manufacturer Warranty: Covered by Byers Products Group's limited 3-year warranty, with an optional 2-year extension available.
• 30-Day Returns: See the Returns section for details.

Choose Your Model:

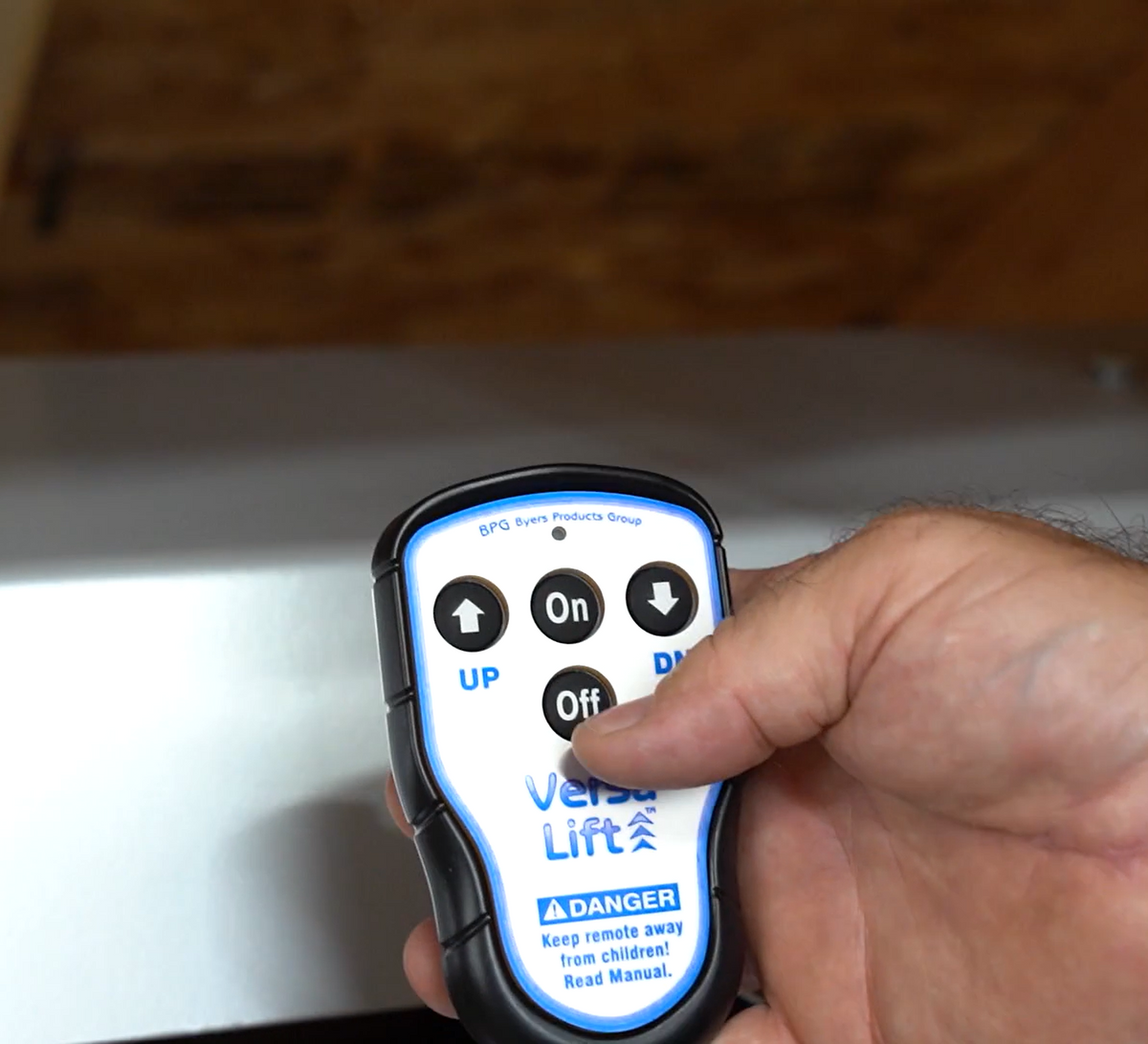

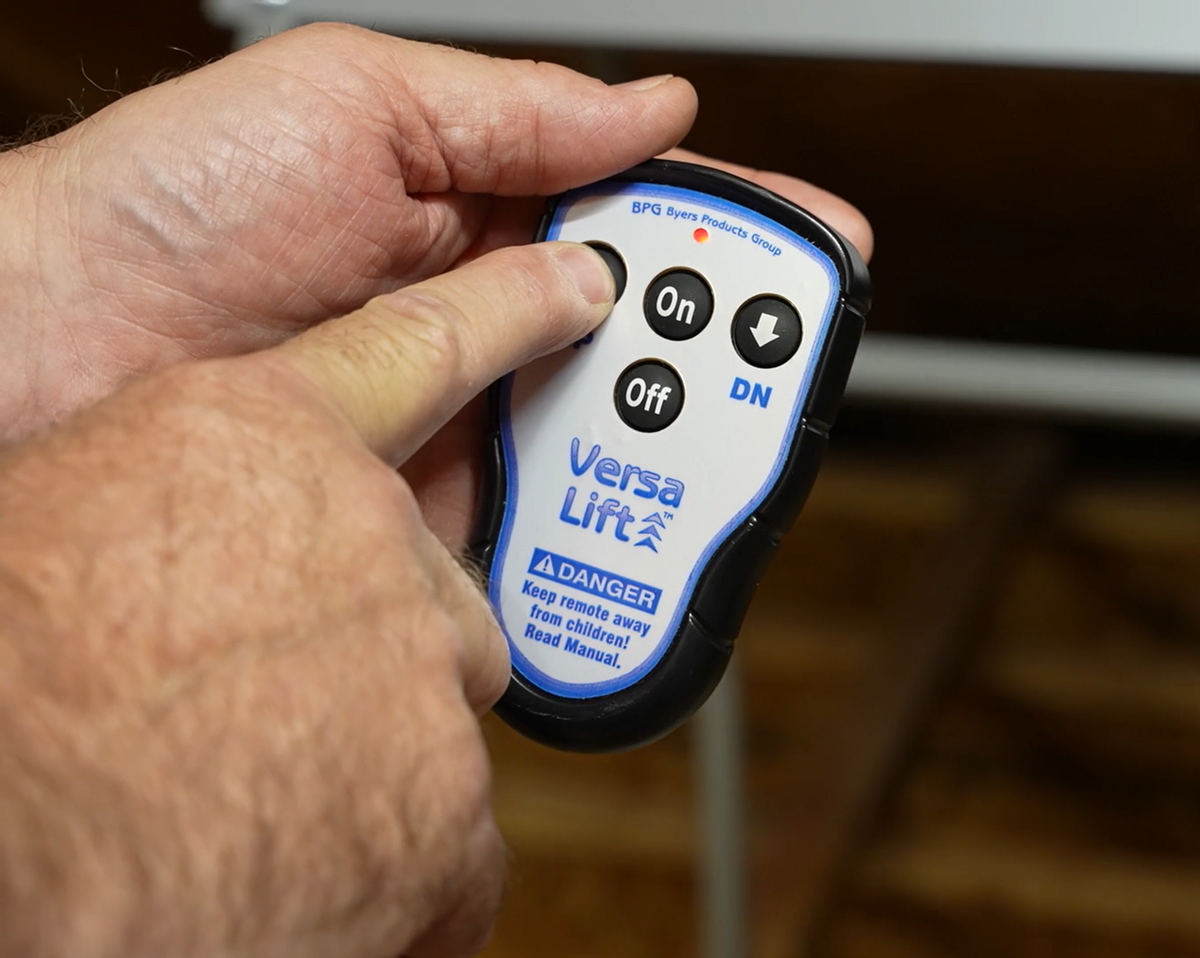

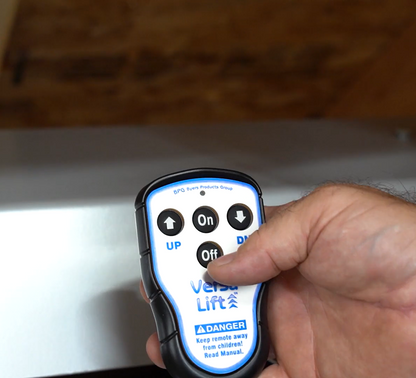

• Control Type: Corded remote with key lock and 15' cord; wireless remote, which turns itself off after 3–4 minutes unused; or wall-mounted switches upstairs and downstairs, with a key lock on the downstairs switch.
• Floor-to-Floor Height: 8'–11', 11'–14', 14'–17', or 17'–20'. Measure from the lower floor to the top of the attic floor.

What's Included:

• Versa Lift 24 lift head assembly with 0.6 HP gear motor

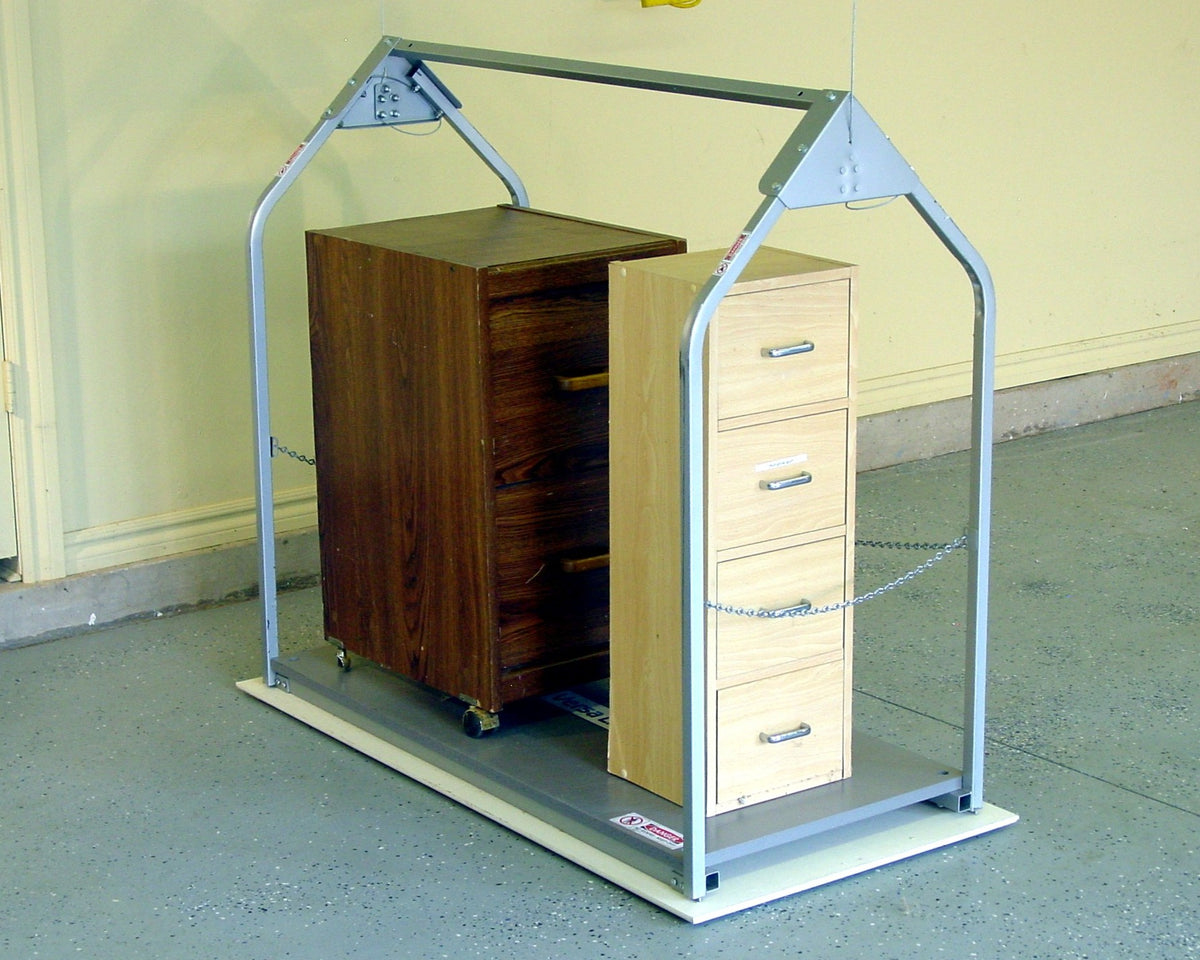

• Lifting platform assembly with platform panel and spring-loaded door panel
• Mounting rails and lift head legs
• Lifting cables and cable clamps
• Four platform safety chains
• Your selected controls (corded remote, wireless remote, or wall switches)
• Surge protector
• Corner wear strips, pilot hole template, and mounting hardware
• Installation Guide and Owner's Manual

Specifications

Models

Floor-to-floor height	Corded remote	Wall switch	Wireless remote
8' – 11'	24C	24M	24W
11' – 14'	24CH	24MH	24WH
14' – 17'	24CHX	24MHX	24WHX
17' – 20'	24CHXX	24MHXX	24WHXX

General

• Lifting Capacity: 200 lbs per load, 15.3 cu. ft.
• Lift Speed: 8" per second (10 ft. in approx. 15 seconds)
• Duty Cycle: 2 min. on / 4 min. off with the attic below 100°F; 2 min. on / 8 min. off above 100°F. An internal thermal switch protects the motor.

Dimensions

• Platform (inside): 20¾" W x 44" L x 39" H
• Power Head (outside): 26" W x 57" L x 47" H

Construction

• Frame: Powder-coated steel
• Cables: (2) .093" zinc-plated steel, 1,000 lb break strength each
• Motor: 0.6 HP gear motor with automatic brake

Electrical

• Power: 110–120 VAC, 50/60 Hz, 5 amps, grounded outlet
• Outlet: The manufacturer recommends putting the lift's outlet on the same switched circuit as the attic lighting, controlled from outside the attic.

Installation requirements

• Attic Headroom: 47" minimum vertical space above the opening
• Ceiling Opening (solid wood joists): 22½" x 46½" (+¼", -0")
• Ceiling Opening (I-joists): Frame to 23" x 47", then line the side walls with ¼" plywood
• Opening Finish: Square, with smooth perpendicular side walls
• Maximum Joist Height: 20" (joist + decking + drywall)

Clearances

• 2" of clear attic floor around the opening for mounting (5" behind the opening if adding the Auto-Shutter)
• 12" from the motor end of the opening to any upstairs wall or support
• 4" from the opening to any downstairs wall

Shipping

• 3 cartons
• Corded: 85 / 42 / 40 lbs (167 lbs total)
• Wall switch or wireless: 87 / 42 / 40 lbs (169 lbs total)

Available options

• 30-Minute Fire Rating Upgrade (FR-24)
• Truss Leg Kit (TL-24)
• Auto-Shutter Door Kit (AS-24)

Installation

Versa Lift 24 Installation Guide

Versa Lift 24 Owner's Manual

Installing a Versa Lift involves two jobs with different skill levels:

1. Framing the ceiling opening. The manufacturer rates this as skilled or professional work. It involves cutting and framing joists, so only take it on yourself if you're experienced with structural carpentry. Otherwise, book a Versa Lift installer through Install Genie.
2. Assembling and mounting the lift. The manufacturer rates this as handyman level, using hand tools and following step-by-step instructions. Two people are required.

Before you buy, confirm

• 47" of attic headroom above the opening location
• Joist height of 20" or less, including decking and drywall
• The clearances listed in Specifications
• A grounded outlet in the attic
• That the installation meets your local building codes

The manufacturer recommends an "aligned" opening, with the long side running parallel to the joists, because it requires cutting fewer joists.

Installation Services

Need help installing your Versa Lift? Ace Garage Storage refers customers to Install Genie LLC, a separate affiliated company, for installation coordination.

Here is how it works:

1. Visit the Install Genie website. You will be leaving AceGarageStorage.com and continuing on InstallGenie.com.
2. Enter your zip code to confirm installation is available in your area
3. Select your Versa Lift model and desired service options
4. Review pricing
5. Select your preferred installation date / time
6. Enter your credit card, installation address, and contact info to schedule service. You will NOT be charged until your service has been completed.

Questions about installation? Call or text 844-600-0885 or email contact@installgenie.com.

Ace Garage Storage sells physical products only and does not provide installation, assembly, or on-site services. Install Genie coordinates appointments with independent installers who are responsible for the work they perform. Installation pricing is separate and is not included in Ace Garage Storage product pricing. Installation services, scheduling, payment authorization, cancellations, refunds, and service issues are governed by Install Genie’s terms and policies.

Shipping

Free Shipping

All orders placed with Ace Garage Storage ship for free within the continental United States. For orders to Hawaii and Alaska, please contact us for a shipping quote. Shipping costs are calculated as part of the total product price so we can extend this free shipping offer, which applies only to completed transactions. If an order is returned for any reason other than confirmed damage, round-trip shipping charges and restocking fees will apply as outlined in our Returns Policy, as these costs are not refunded to us by carriers.

Order confirmation

As soon as your order is placed you'll receive an order confirmation e-mail. This will mean we have received your order in our system and pre-authorized your credit card for the purchase. Once your order is received, we will confirm it is in stock. If your item is on backorder or unavailable, we will void the pre-authorization and reach out to you via e-mail. If your item(s) are available we will fully process the credit card charge and submit the order for shipment.

Order shipment

If your order is in stock and we process the charges to your credit card, it will typically ship within five business days from the date of your order. We will send you tracking information within 24 hours of your order leaving the warehouse to the e-mail address you provided when checking out. If you do not receive tracking information from us within six business days of your order, feel free to follow up with us at sales@acegaragestorage.com.

Save your boxes

Keep the lift head shipping cartons. Warranty service on the motor, remote, or limit switches requires returning the lift housing in its original carton.

Warranty

The Versa Lift by Byers Products Group (BPG) is warranted to the original purchaser to be free from defects in material and workmanship for three years from the original date of purchase, under conditions of normal use and service.

Extended warranty (optional)

Add a 2-year warranty extension from Byers Products Group for $395. It extends your coverage for two more years under the same terms as the limited warranty, and you'll receive an extension certificate showing your coverage dates.

How to activate your warranty

Register your lift online at versalifthome.com, or mail in the warranty registration card included with your manuals. Record your model and serial number, found on the end of the lift head by the motor.

What the manufacturer will do

BPG will inspect the returned product and, at its option, repair or replace defective parts at no cost to you. BPG pays return shipping on warranted repairs.

How to get warranty service

• Contact BPG at 405-491-8550 (Monday–Friday, 8am–5pm CT) to get a return authorization before sending any parts.
• Ship defective parts prepaid, with a written explanation of the problem.
• If the problem is with the motor, remote control, or limit switches, return the entire lift housing assembly in its original shipping carton. If you no longer have the carton, BPG will send one.
• If BPG finds no defect, or a cause not covered by the warranty, you pay return shipping.

What is not covered

• Damage from misuse, abuse, negligence, or accidents
• Use contrary to the manufacturer's limitations or recommendations
• Products repaired, altered, or modified outside BPG's facility
• Shipping damage from inadequate packaging on warranty returns
• Incidental or consequential damages

Returns

You may return your Versa Lift within 30 days of delivery. To qualify, the lift must be unused, in the same condition you received it, and in its original packaging with all parts, hardware and manuals. Lifts that have been installed cannot be returned.

Return authorization

Contact us for a return authorization before shipping anything back. Returns sent without one may be refused, and you may be charged to have them shipped back to you.

Restocking fee and shipping charges

Returns for any reason other than damage, a defect, or an incorrect shipment are subject to a 20% restocking fee. Because free shipping applies only to completed sales, both the original and return shipping costs will also be deducted from your refund.

Damaged, defective, or incorrect items

• Inspect your delivery before you sign. Note any visible damage on the delivery receipt and report it to us the same day.
• Damage found after unpacking must be reported within 24 hours of delivery.
• If your lift is damaged or defective, or isn't what you ordered, we'll handle the return or replacement at no cost to you.

Refunds

Once the manufacturer receives and inspects your return, we'll email you to confirm whether it's approved. Approved refunds are credited to your original payment method.
